TOPODRONE S-PACK100 specifications

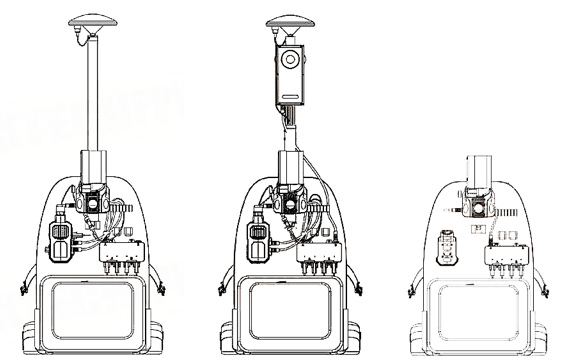

| With GNSS antenna installed | With GNSS antenna and panoramic camera unit installed | Without GNSS antenna |
| Material | Nylon |
| Color | Dark blue |
| Fabric | Nylon |
| Mounting plate | Carbon fiber |
| Metal parts | Aluminum alloy |
| Capacity | 6.5 liters |
| Closure | Zipper |
| Dimensions (without antenna) | 330 mm x 240 mm x 555 mm |
| Dimensions (with antenna) | 330 mm x 240 mm x 1050 mm |
| Weight | 3.65 kg (without the TOPODRONE SLAM100 module and batteries) |
Mobile power unit specifications
| Item | Port A | Port B |
| Input | USB Type-C | USB Type-C |
| Output voltage | 20 V | 12 V |
| Output current | 3 A | 3 A |
LED indicators
When a power bank is connected to the input port of the power module and provides normal voltage, the power LED is solid green.
- Port A of the power unit supports up to 2 PD* power banks at the same time;
- Port B of the power unit supports up to 2 PD* power banks at the same time;
* PD – Power Delivery
Power bank requirements
A power bank with «Power Delivery» support, at least 20,000 mAh, with 20 V 2 A output
Power bank requirements:
1) Support for the 20 V output voltage control protocol;
2) Output power of at least 45 W;
3) The power module input is a USB Type-C connector; the cable is purchased separately;
GNSS antenna specifications
 |  |  |

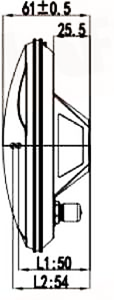

| Top view | Side view | Bottom view |
| Dimensions | 150 mm x 61 mm |
| Weight | 0.45 kg |
| Antenna connector type | TNC-K |
| Mounting thread | 5/8" x11 (imperial) |
| IPXX protection class | IP67 |
| Operating temperature | -40°C~+85°C |
| Storage temperature | -55°C~+85°C |
| Storage humidity | 95% |
