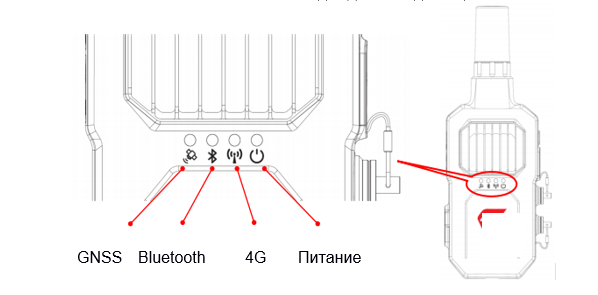

LED indicators
Updated 02/10/2026
1 min read
| Indicator | Function | Meaning | Indicator color |
| Red | Green | Blue | Yellow |
| GNSS | Positioning | Searching for satellites | Blinking | | | |
| Single Point Positioning (Q1) | Solid | | | |
| Pseudo-Range Positioning | | | | Blinking |
| Float-Point Positioning (Q2) | | Blinking | | |
| Absolute Point Positioning (Q5) | | Solid | | |
| Base station mode | | | Solid | |
| Board configured successfully | Blinking slowly | | | |
| Bluetooth | Bluetooth | Preparing | Blinking | | | |
| Initializing, disconnected | Solid | | | |
| Connected | | Solid | | |
| 4G | Data transfer | Data not ready | Blinking | | | |
| SIM card read successfully | | Blinking | | |
| 4G connected | | Solid | | |
| Differential data | | Blinking fast | | |
| Power | Power | No SD card | Blinking | | | |
| USB connected | Solid | | | |
| Normal operation | | Blinking | | |
| SD card write error | | | Solid | |
