Installing the external GNSS antenna pole

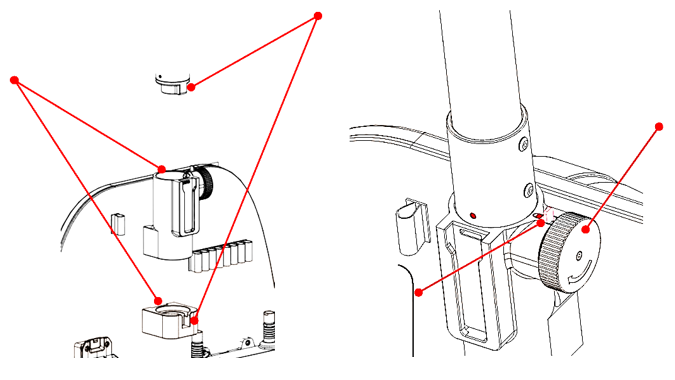

1. Pass the extension rod from top to bottom through the extension rod stop and the mounting base.
2. Align the bottom lug of the extension rod with the recess in the base and push it down. To remove the extension rod, turn the switch outward and the knob counterclockwise to loosen it, then pull the rod out.
3. Turn the knob clockwise to tighten the extension rod and prevent the GNSS antenna pole from falling out accidentally.
Installing the GNSS antenna
1. Install the GNSS antenna by screwing it onto the top of the pole.
2. Connect the antenna cable connector
Installing the S-RTK100 module

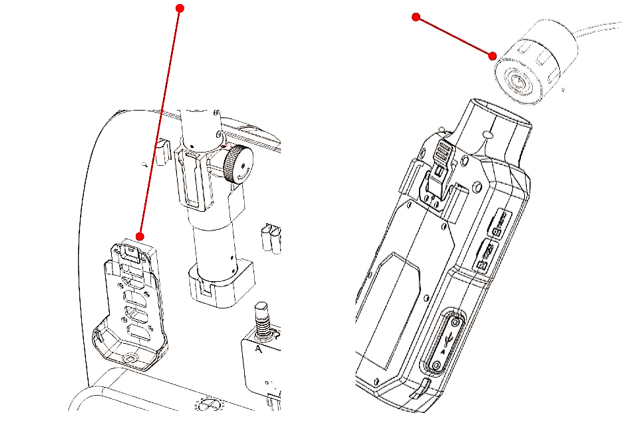

1. Install the S-RTK100 module holder on the backpack as shown in the figure below. Tighten the 4 hex mounting screws supplied.
2. Screw the antenna connector into the S-RTK100 module

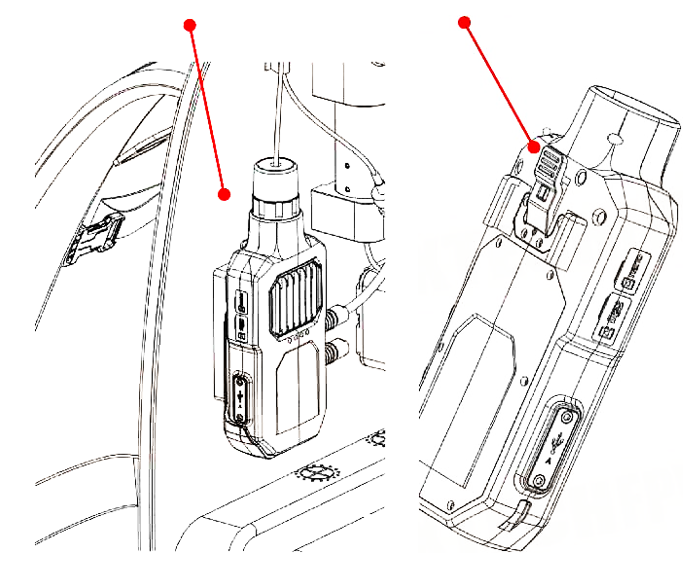

3. Insert the S-RTK100 module into the holder until it clicks. Installation is complete.
4. To remove the device, press the latch on the back of S-RTK100 and pull the device vertically upward.
Installing TOPODRONE SLAM100

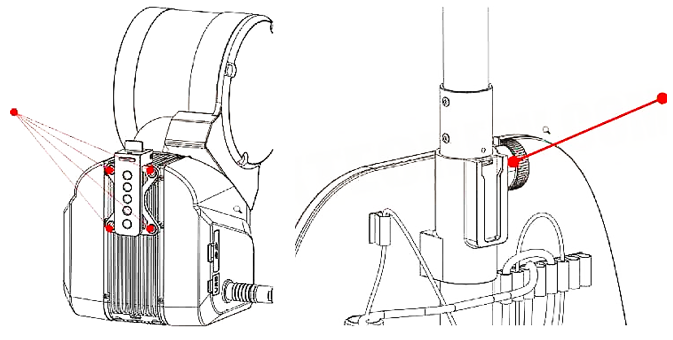

1. Attach the quick-release bracket to the back of SLAM100 with the 4 flat-head hex screws supplied. Important: the mounting bracket must face up as shown in the figure
2. Insert the bracket mounted on SLAM100 vertically down into the slot at the base of the mating backpack bracket until it clicks, as shown in the figure. Installation is complete.
3. To remove TOPODRONE SLAM 100, slide the latch at the back, then lift TOPODRONE SLAM100 vertically upward to remove the device.
Installing the mobile power unit

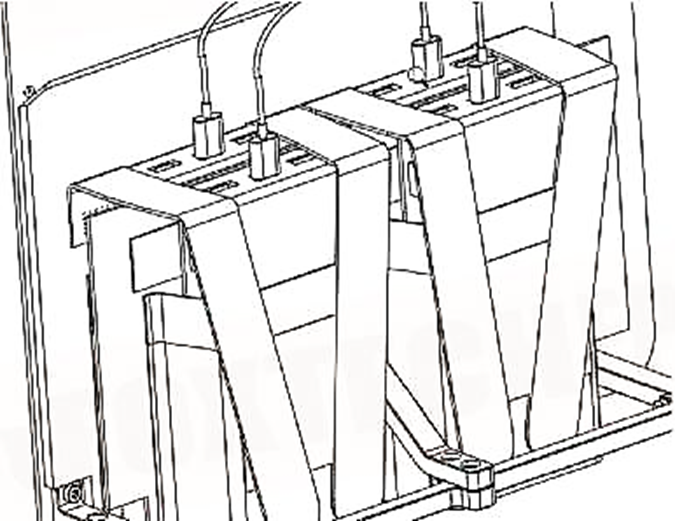

Place the power bank in the battery compartment inside the backpack and secure it with the Velcro strap to avoid poor contact due to shaking during operation. Connect the cables. Installation is complete.
Outputs 1 and 2 supply power to port A above (S-RTK100)
Outputs 3 and 4 supply power to port B (panoramic camera)

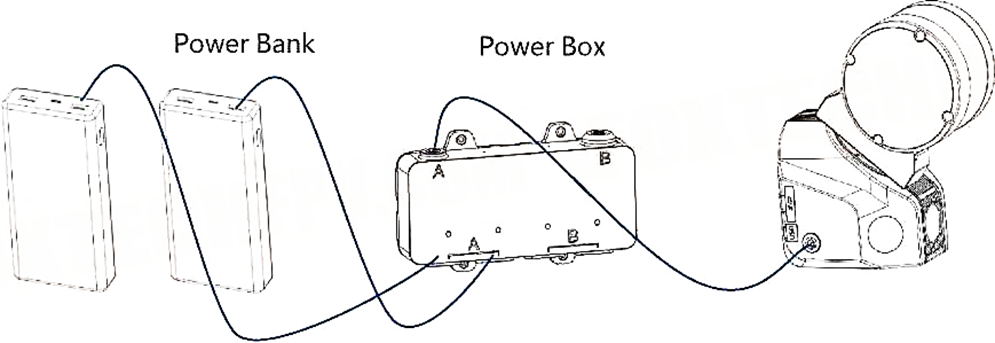

Cable connection diagram

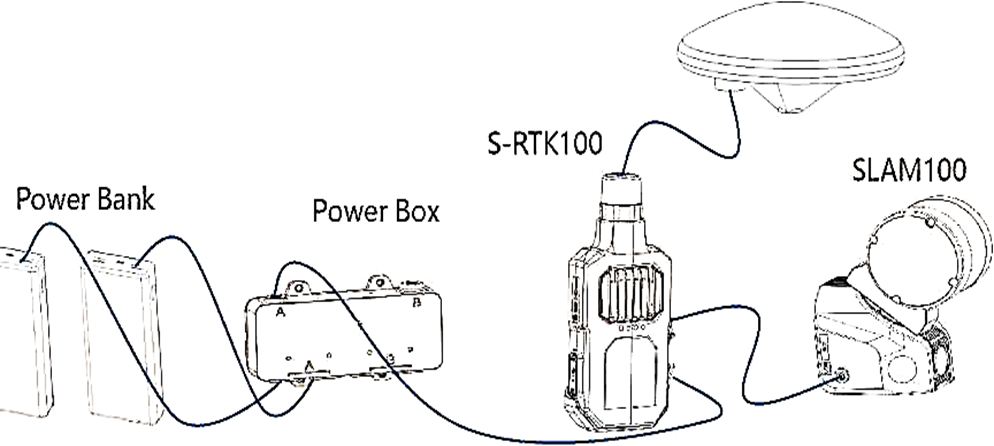

Option 1: S-PACK100 + SLAM100 Combo
Option 2: S-PACK100 + S-RTK100 + TOPODRONE SLAM100

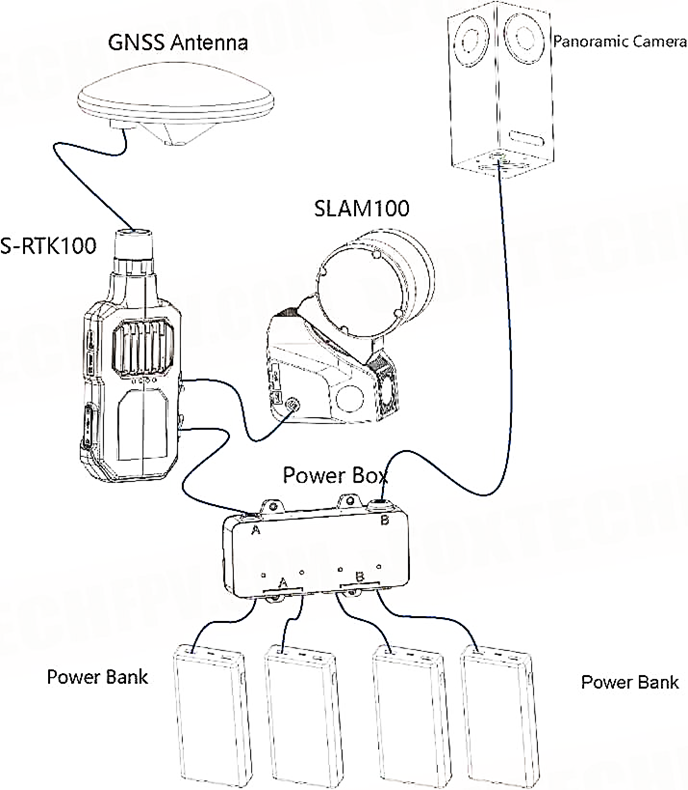

Option 3: S-PACK100 + S-RTK100 + TOPODRONE SLAM100 + panoramic camera module
