Recommend
New
Specifications
Country of origin
—
Switzerland
Year of release
—
2023
Warranty
—
12 month
Weight
—
800 g
Operating temperature range
—
-20℃ to 60℃
Storage Temp
—
-40℃ to 85℃
All characteristics
Buy set

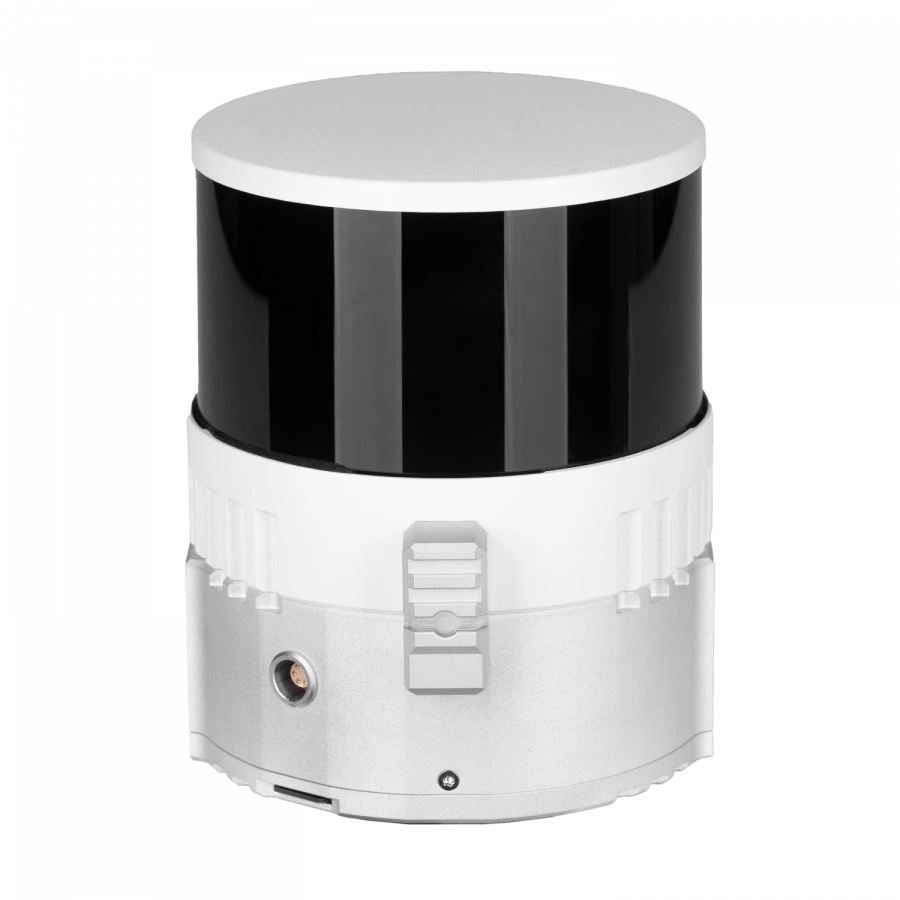

TOPODRONE LiDAR 200+
$21 900 * 1 pcs.
|
TOPODRONE P24 |
$1 990 * 1 pcs.
|
|
|
UgCS Pro Perpetual License |
$790 * 1 pcs.
|
|
|
TOPODRONE LiDAR Post Processing Perpetual License |
$5 000 * 1 pcs.
|
|
|
LiDAR360 Framework Perpetual License |
$3 000 * 1 pcs.
|
|
|
LiDAR360 Terrain Perpetual License |
$1 500 * 1 pcs.
|
|
|
3Dsurvey Perpetual License |
$3 000 * 1 pcs.
|
|
|
DJI Matrice 300 RTK |
$13 190 * 1 pcs.
|
|
|
DJI Matrice 300 Series BS60 Intelligent Battery Station |
$1 200 * 1 pcs.
|
|
|
DJI Matrice 300 Series TB60 Intelligent Flight Battery |
$800 * 4 pcs.
|
|
|
DJI Matrice 300 Series WB37 Intelligent Flight Battery |
$83 * 1 pcs.
|
| Bundle price | $54 853 |
$54 853
Description
Laser scanner based on Hesai XT32M2X, 300 m working range, 200 m working flight altitude, triple return mode up to 1,920,000 points per second, 3-5 cm XYZ accuracy, 360° FOV, built-in 200 Hz IMU with 0.07/0.01 accuracy, built-in GNSS receiver, weight 0.8 kg.- The most compact 360° LiDAR on the market.
- The lightest LiDAR of the product line - 800 g.
- The highest working flight altitude - 200 m.
- Triple return mode, the others have dual return.
- Highest scanning frequency - 1 920 000 PPS.
Features
- Affordability. We work hard to provide the lowest prices for LiDARs in its class.
- Performance. Covers over 2 sq. km. of territory in one flight from a 200 m altitude.
- Accuracy. Very precise and thin point cloud due to modern laser sensor, built-in high precision IMU and integrated GNSS receiver.
- Mobility. LiDAR 3 in 1: can be mounted not only on the drone, but also on a car and a surveying backpack.
- Autonomy. Completely autonomous LiDAR missions when mounted on the DJI Matrice 300 RTK.
- Software. Provides full processing cycle from trajectory calculation to point cloud generation with the required coordinate system, strip adjustment and SLAM algorithms for data processing in conditions of insufficient GNSS signal are supported.
- Integration. The laser scanner can work on any drone, is fully compatible with TOPODRONE P24 and P61 photogrammetric cameras, the camera can be connected to the laser scanner, a fixed installation on LiDAR, as well as an option with installation of the camera on a 3-axis gimbal.

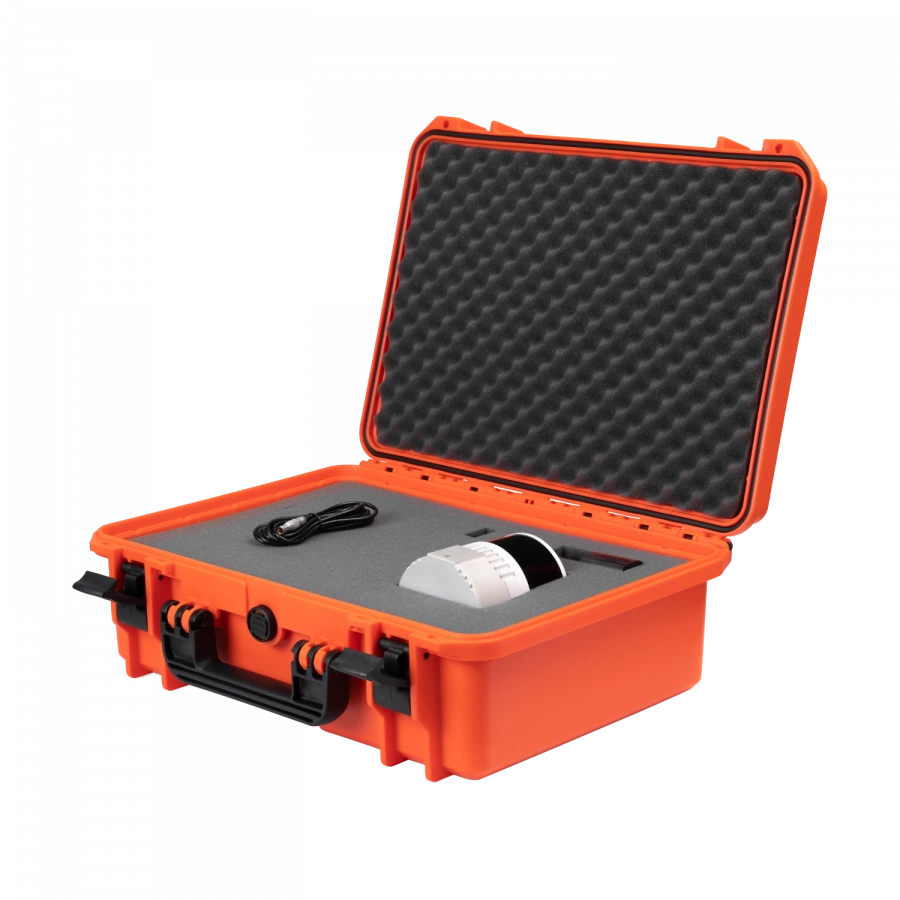

In the box
1 * TOPODRONE LiDAR 200+1 * Drone mount
1 * Antenna cable
1 * GNSS antenna
1 * Flash card
1 * Cable kit

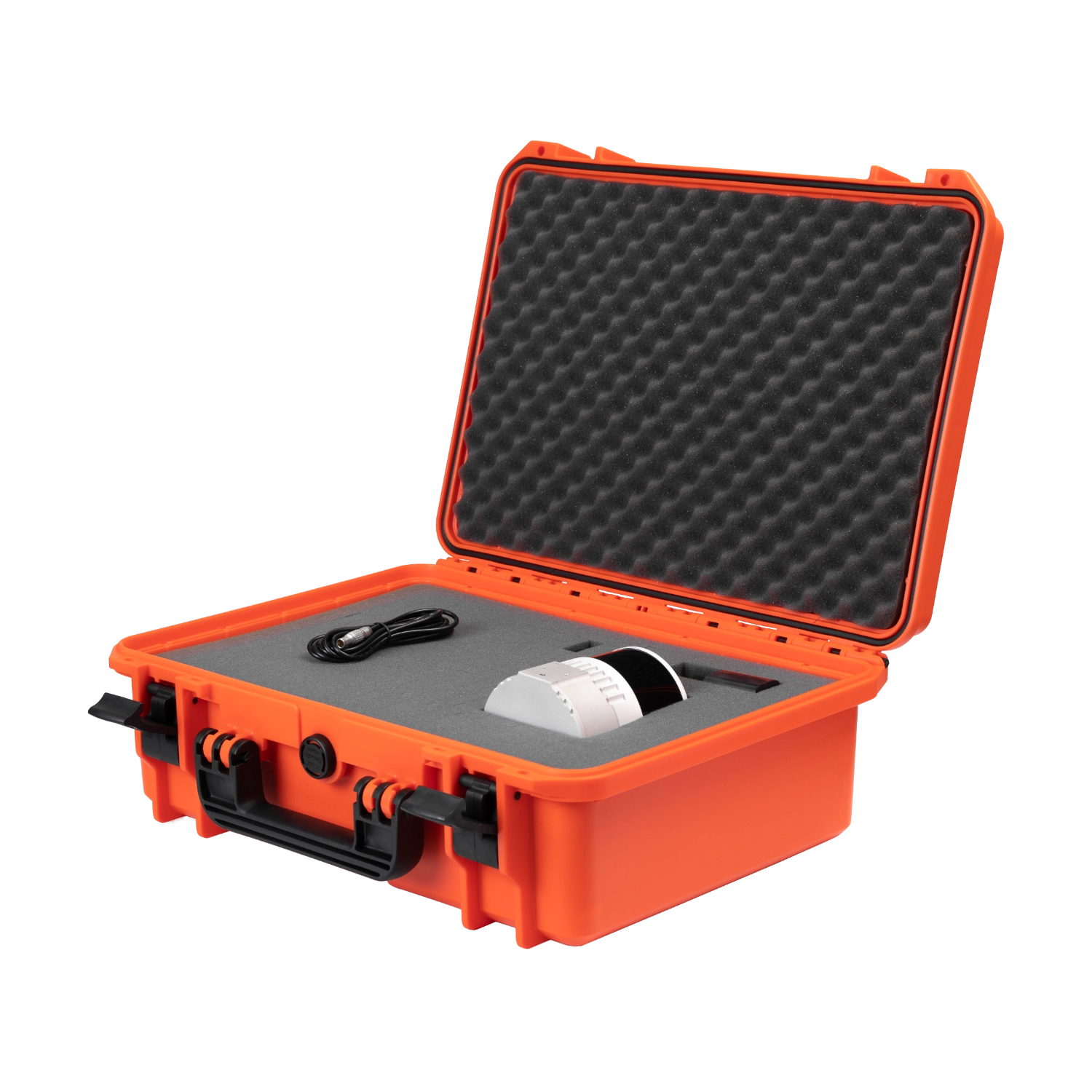

1 * Carrying case
Comparison
| TOPODRONE 200+ | TOPODRONE 100+ | TOPODRONE 100 | |
|---|---|---|---|
| Weight | 800 g | 1000 g |
1000 g |
| Working Range | 300 m | 120 m | 120 m |
| Working Flight Altitude | 200 m | 100 m | 100 m |
| Number of Lines | 32 | 32 | 16 |
| PPS - Single Return | 640 000 | 640 000 | 320 000 |
| PPS - Dual Return | 1 280 000 |
1 280 000 |
640 000 |
| PPS - Triple Return | 1 920 000 |
in the set
2 x Аккумулятор
Documents
TOPODRONE LiDAR 200+
545,6 KB
General
Country of origin
Switzerland
Year of release
2023
Warranty
12 month
Weight
800 g
Operating temperature range
-20℃ to 60℃
Storage Temp
-40℃ to 85℃
LiDAR System
Sensor type
XT32M2X
Sensor Weight
490 g
Recording data to internal memory
Yes
Recording data to a flash card
Yes
Camera connection
Yes
Built-in IMU
Yes
Built-in GNSS module
Yes
Laser Sensor
Working Range
300 m
Working Flight Altitude
200 m
Sensor Accuracy
3-5 cm
Number of scanning beams
32
Horizontal FOV
360°
Vertical FOV
40.3°
Horizontal Resolution
0.09°
Vertical Resolution
1.3°
Scanning frequency (single reflection)
640000
Scanning frequency (double reflection)
1280000
Scanning frequency (triple reflection)
1920000
Refresh Rate
5-20 Hz
Laser Wavelength
905 nm Class 1 eye safe
Operating Voltage
9 V – 36 V
Power Consumption
10 W
Output
UDP/IP Ethernet, 100BASE-TX
Ethernet Connection
100 Mbps
Data synchronization
GPS/PTP
Water Resistance
IP6K7
IMU
IMU Weight
35 g
Operating frequency
200 Hz
Heading accuracy (°, 1σ)
0,07
Pitch accuracy (°, 1σ)
0,01
Roll accuracy (°, 1σ)
0,01
GNSS receiver
PPK mode
Yes
Number of channels
184
Frequency
10 Hz
Data Accuracy
3-5 cm
GPS
L1C/A, L2C
GLONASS
L1OF, L2OF
BeiDou
B1I, B2I
Galileo
E1B/C, E5b
SBAS
L1C/A
QZSS
L1C/A, L1S, L2C
Working without GCPs
Yes
Recommended radius to the base station
10 km
