New
Article:
CH-TD-100+
Buy set

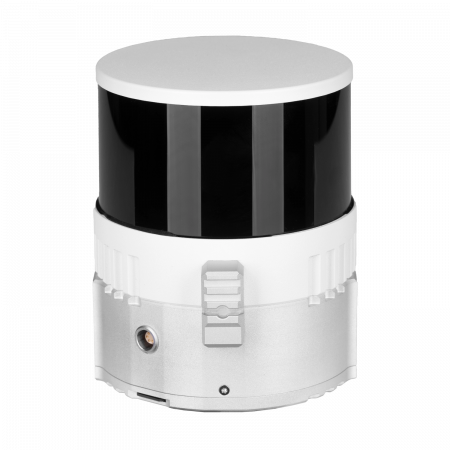

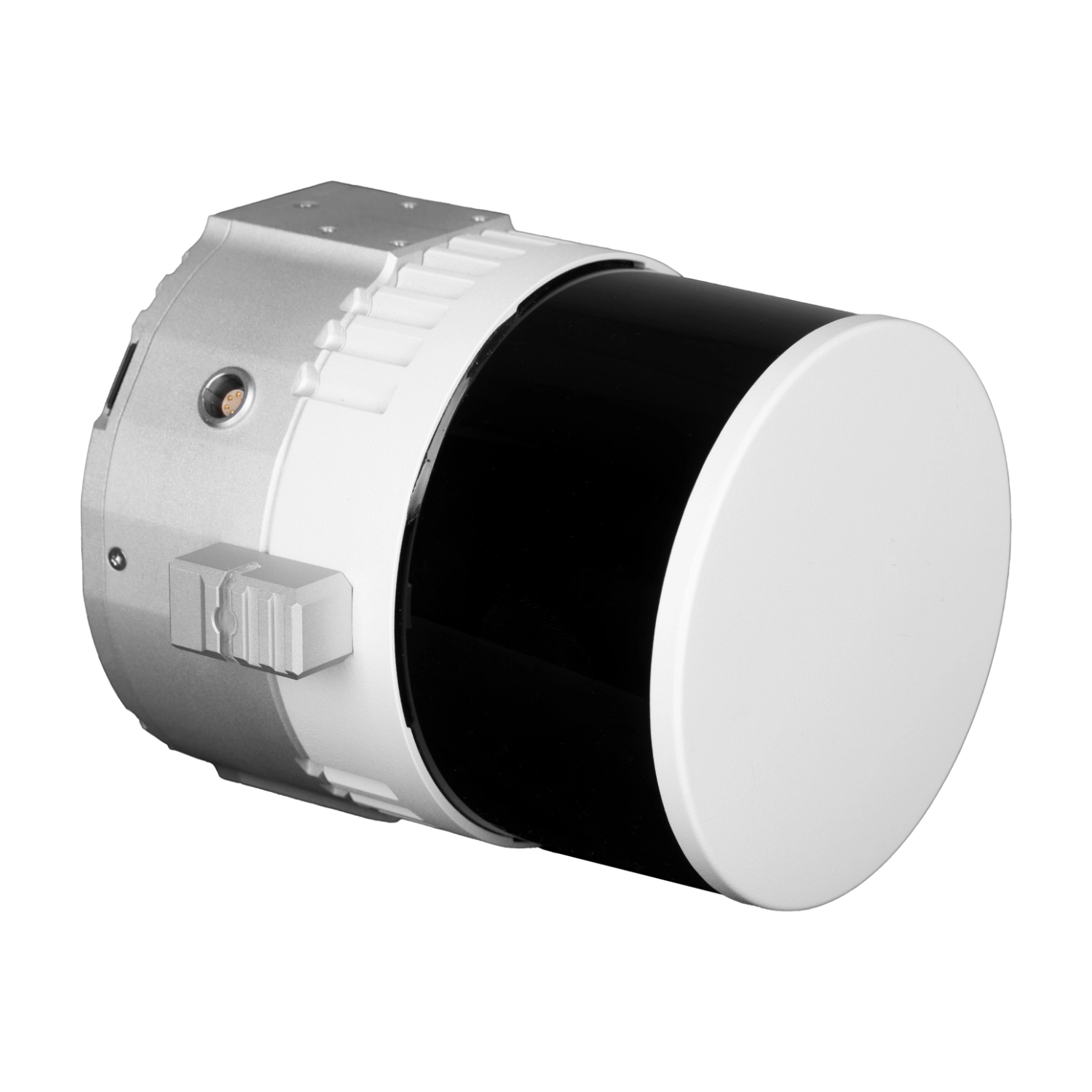

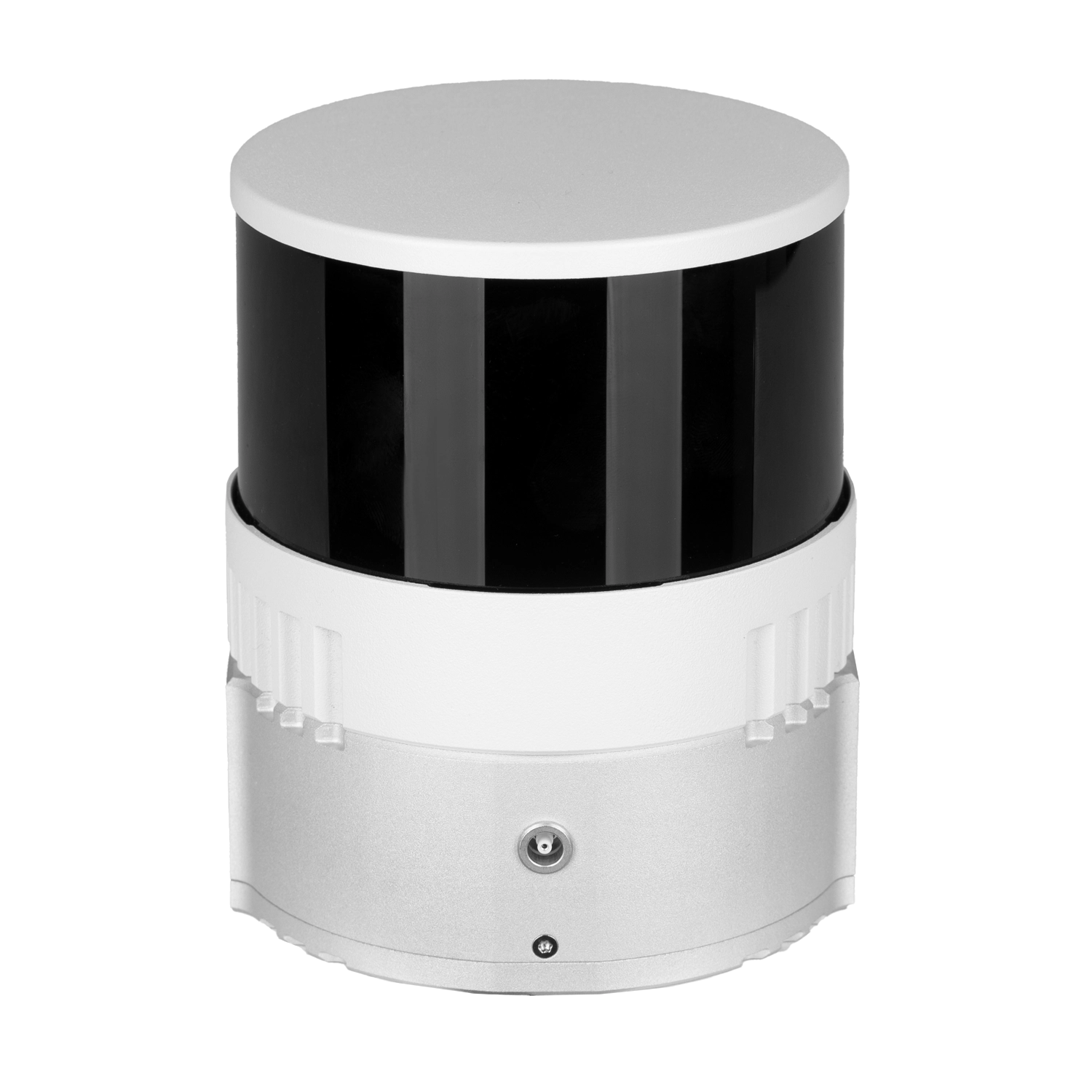

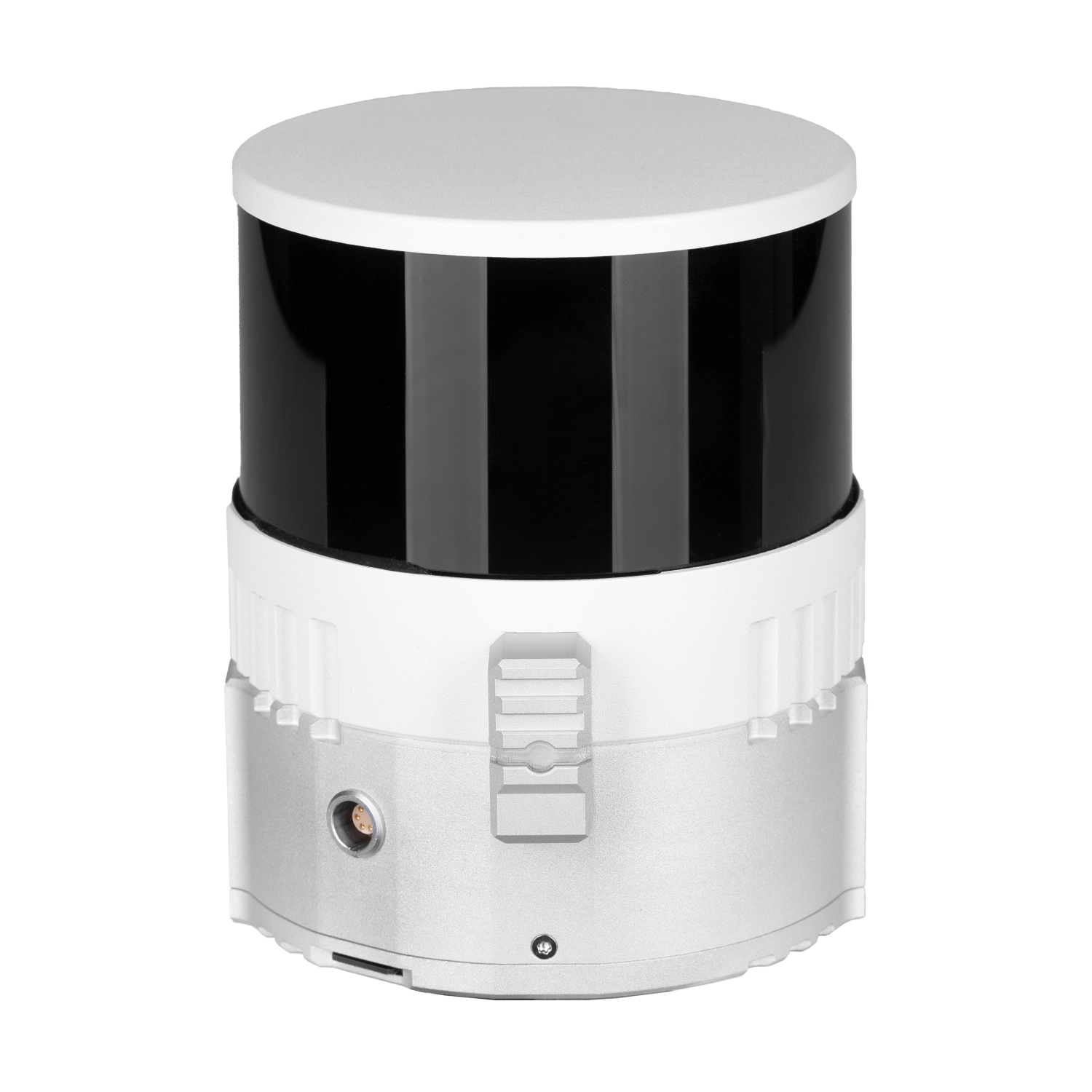

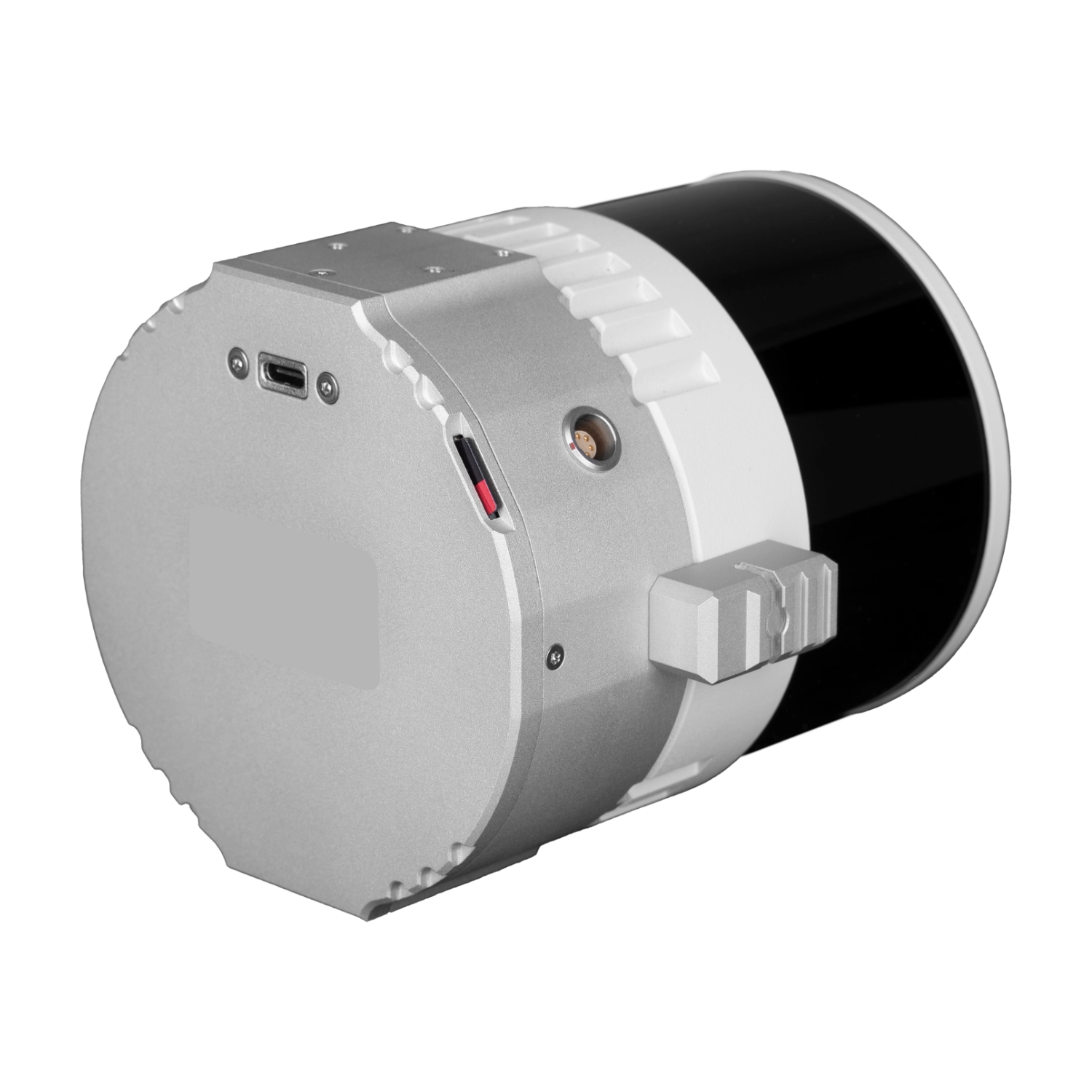

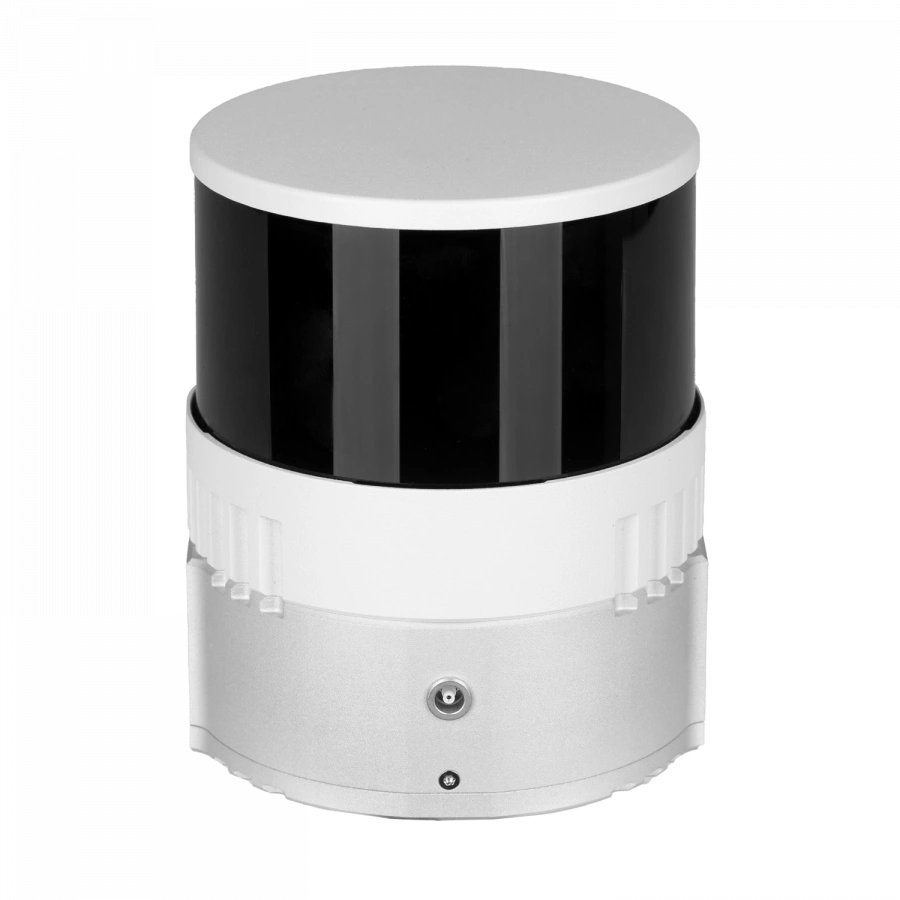

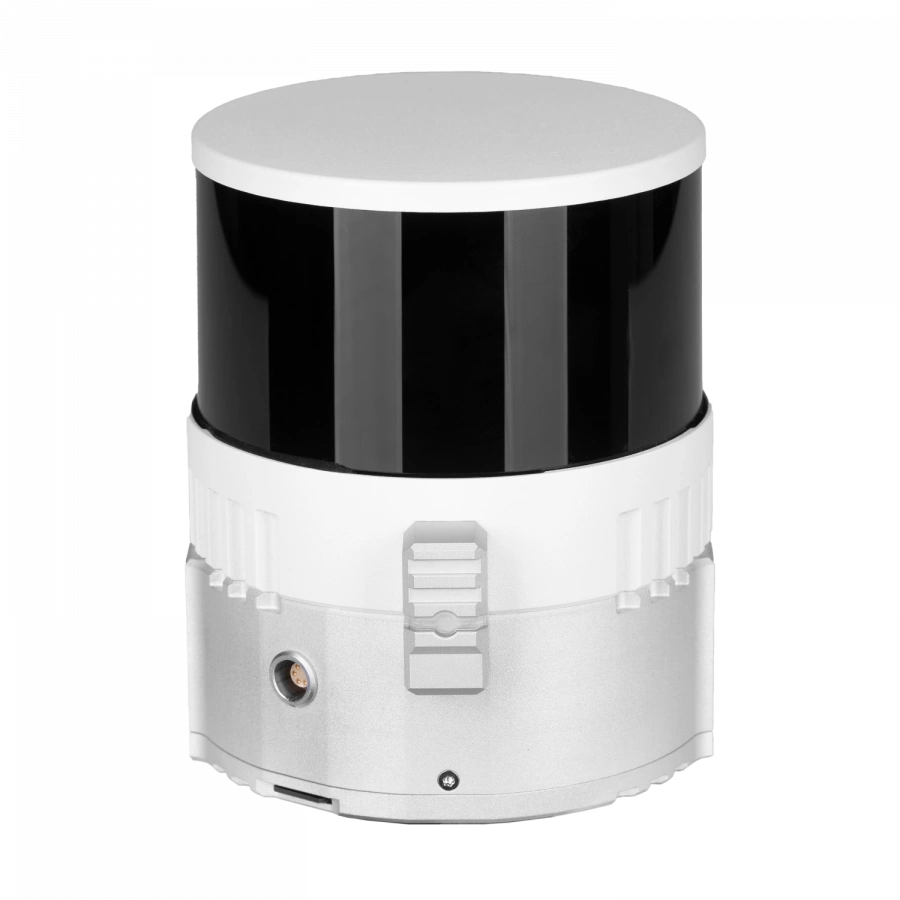

TOPODRONE LiDAR 100+
$16 900 * 1 pcs.
|
TOPODRONE P24 |
$1 990 * 1 pcs.
|
|
|
UgCS Pro Perpetual License |
$790 * 1 pcs.
|
|
|
TOPODRONE LiDAR Post Processing Perpetual License |
$5 000 * 1 pcs.
|
|
|
LiDAR360 Framework Perpetual License |
$4 200 * 1 pcs.
|
|
|
LiDAR360 Terrain Perpetual License |
$2 100 * 1 pcs.
|
|
|
3Dsurvey Perpetual License |
$3 000 * 1 pcs.
|
|
|
DJI Matrice 300 RTK |
$13 190 * 1 pcs.
|
|
|
DJI Matrice 300 Series BS60 Intelligent Battery Station |
$1 200 * 1 pcs.
|
|
|
DJI Matrice 300 Series TB60 Intelligent Flight Battery |
$800 * 4 pcs.
|
|
|
DJI Matrice 300 Series WB37 Intelligent Flight Battery |
$83 * 1 pcs.
|
| Bundle price | $51 653 |
$51 653
Description
Laser scanner based on Hesai XT32, 120 m working range, 100 m working flight altitude, triple return mode up to 1,280,000 points per second, 3-5 cm XYZ accuracy, 360° FOV, built-in 200 Hz IMU with 0.07/0.01 accuracy, built-in GNSS receiver, weight 1 kg.- The most compact 360° LiDAR on the market.
- Cheaper than the TOPODRONE 200+ model with the same PPS on Dual Return mode.
- Twice as many beams as TOPODRONE 100.
- Working flight altitude of 100 m, higher than previous HI-RES and HDL models.
Features
- Affordability. We work hard to provide the lowest prices for LiDARs in its class.
- Performance. Covers over 1 sq. km. of territory in one flight from a 100 m altitude.
- Accuracy. Very precise and thin point cloud due to modern laser sensor, built-in high precision IMU and integrated GNSS receiver.
- Mobility. LiDAR 3 in 1: can be mounted not only on the drone, but also on a car and a surveying backpack.
- Autonomy. Completely autonomous LiDAR missions when mounted on the DJI Matrice 350 RTK.
- Software. Provides full processing cycle from trajectory calculation to point cloud generation with the required coordinate system, strip adjustment and SLAM algorithms for data processing in conditions of insufficient GNSS signal are supported.
- Integration. The laser scanner can work on any drone, is fully compatible with TOPODRONE P24 and P61 photogrammetric cameras, the camera can be connected to the laser scanner, a fixed installation on LiDAR, as well as an option with installation of the camera on a 3-axis gimbal.
In the box
1 * TOPODRONE LiDAR 100+1 * Drone mount
1 * Antenna cable
1 * GNSS antenna
1 * Flash card
1 * Cable kit

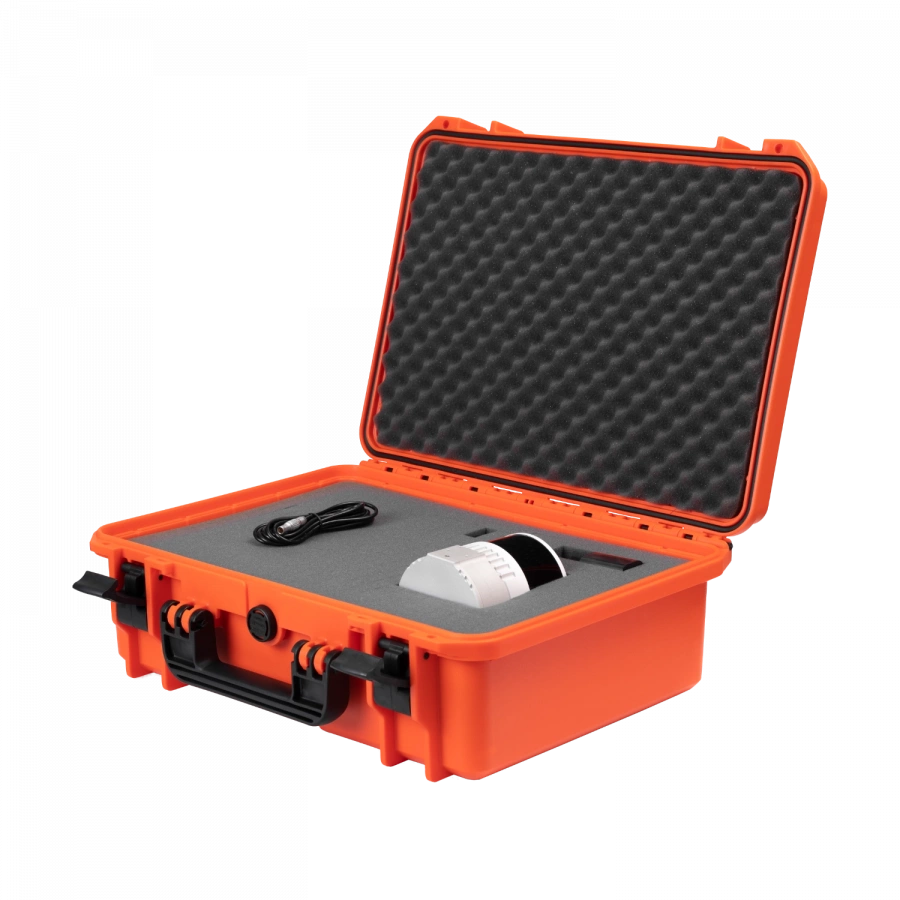

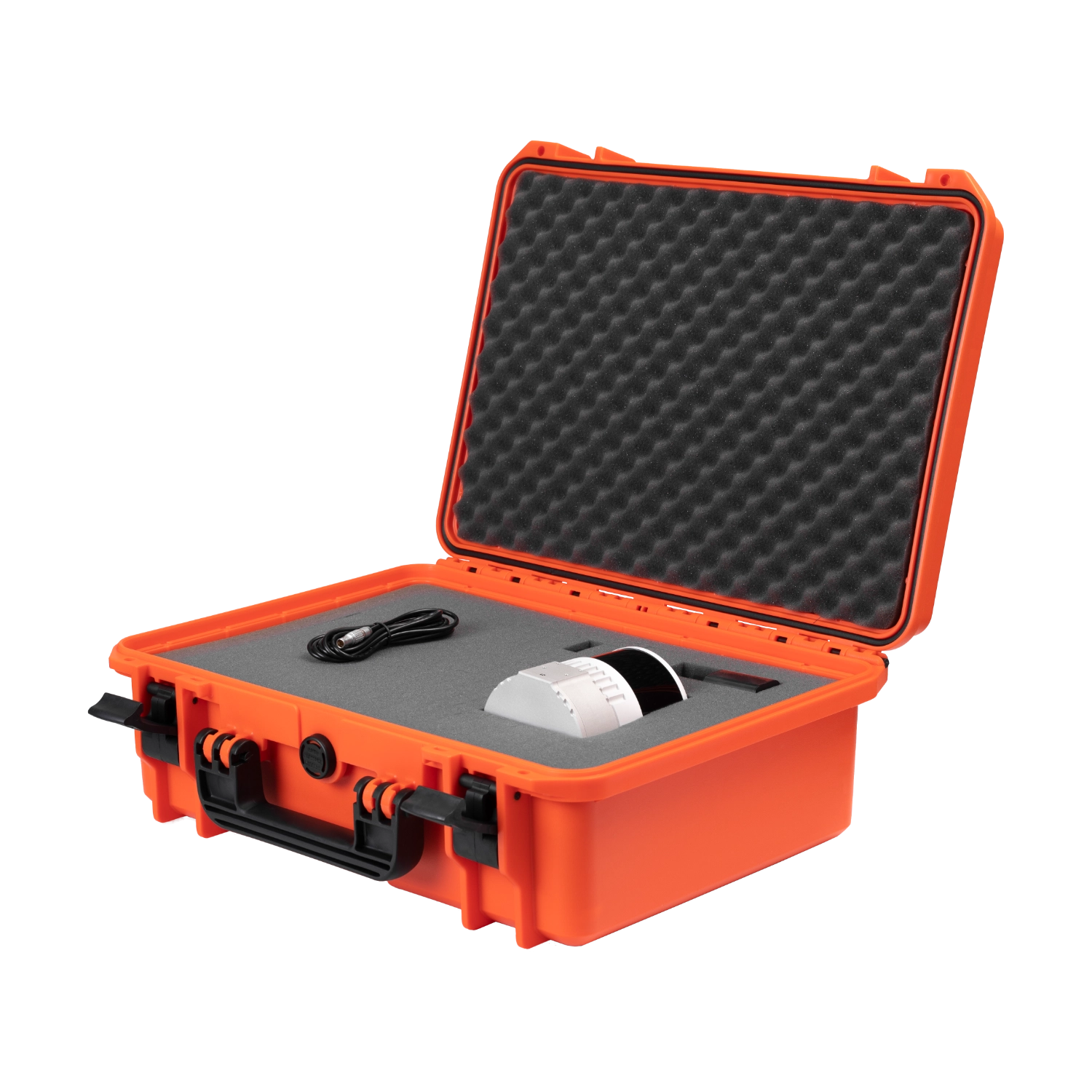

1 * Carrying case
Comparison
| TOPODRONE 200+ | TOPODRONE 100+ | TOPODRONE 100 | |
|---|---|---|---|
| Weight | 720 g | 1 kg |
1 kg |
| Working Range | 200 m | 120 m | 120 m |
| Working Flight Altitude | 120 m | 100 m | 70 m |
| Number of Lines | 32 | 32 | 16 |
| PPS - Single Return | 640 000 | 640 000 | 320 000 |
| PPS - Dual Return | 1 280 000 |
1 280 000 |
640 000 |
| PPS - Triple Return | 1 920 000 |
Documents
TOPODRONE LiDAR 100+
545 KB
General
Country of origin
Switzerland
Warranty
12 month
Weight
1 kg
Operating temperature range
-20℃ to 60℃
LiDAR System
Sensor type
XT32
Recording data to a flash card
Yes
Built-in GNSS module
Yes
Laser Sensor
Working Range
120 m
Working Flight Altitude
100 m
Number of scanning beams
32
Horizontal FOV
360°
Vertical FOV
31°
Scanning frequency (single reflection)
640000
Scanning frequency (double reflection)
1280000
Refresh Rate
5-20 Hz
Laser Wavelength
905 nm Class 1 eye safe
Water Resistance
IP6K7
IMU
Operating frequency
200 Hz
Heading accuracy (°, 1σ)
0,07
Pitch accuracy (°, 1σ)
0,01
Roll accuracy (°, 1σ)
0,01
GNSS receiver
PPK mode
Yes
Number of channels
184
Frequency
10 Hz
Data Accuracy
3-5 cm
GPS
L1C/A, L2C
GLONASS
L1OF, L2OF
BeiDou
B1I, B2I
Galileo
E1B/C, E5b
SBAS
L1C/A
QZSS
L1C/A, L1S, L2C
Working without GCPs
Yes
