Caution!
- DMT200 is a high-precision device. Drops or impacts may damage the DMT200 and disrupt its operation.
- Protect the DMT200 from dust and sand during use.
- Do not place the device in direct sunlight, in poorly ventilated places or near heat sources such as heaters.
- Before connecting and installing, make sure the device connectors are dry and free of moisture.
- Do not hot-plug the DMT200 while the power is on. Use the power button on the unmanned aerial vehicle (UAV) to switch the power off.
- DMT200 is a precision device. Put it in a protective case for transport and handling.

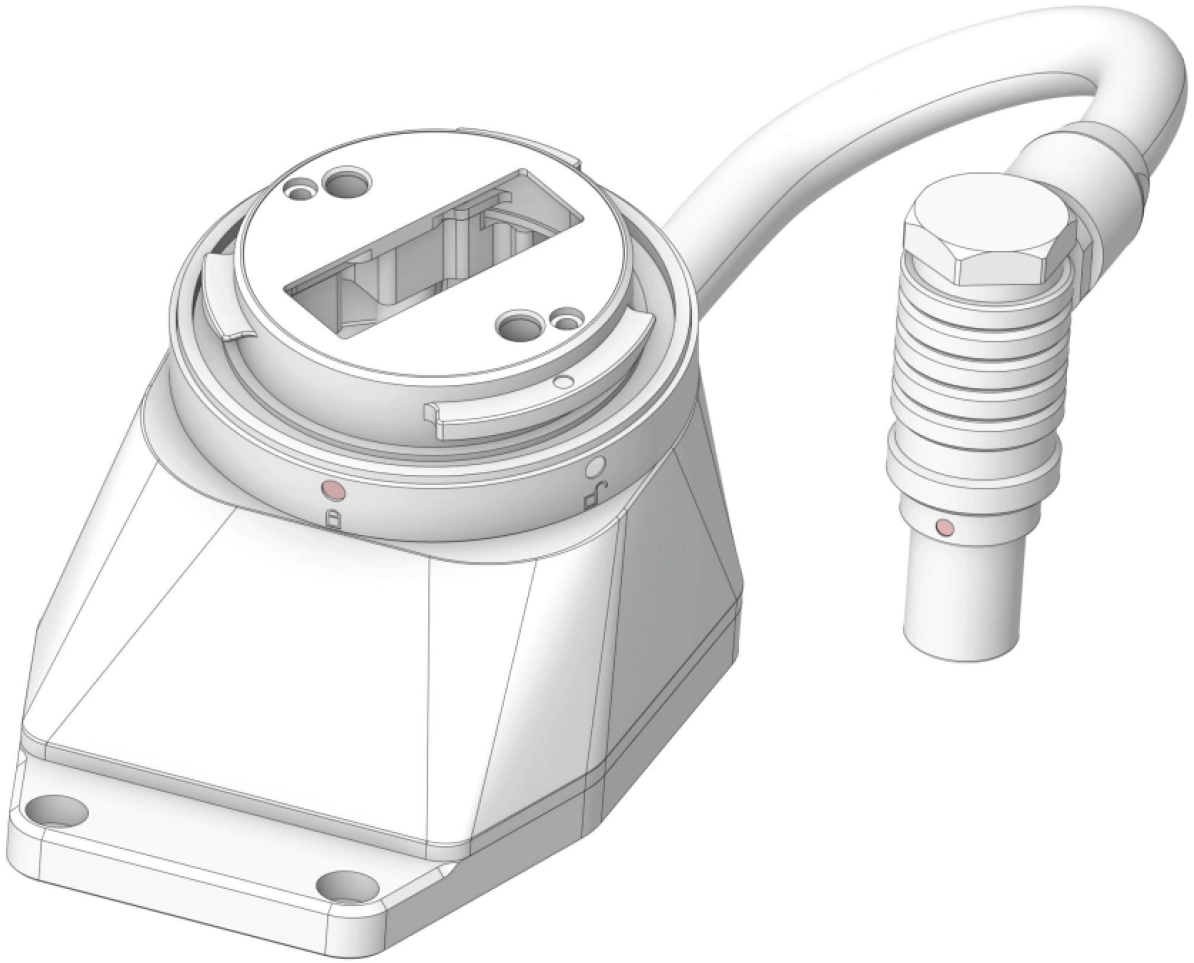

DMT200 is an adapter bracket for mounting the SLAM200 laser scanner on unmanned aerial vehicles (UAVs) with a DJI interface.
Specifications
| Parameter | Value |
|---|---|
| Model | DMT200 |
| Interface type | DJI payload interface |
| Dimensions (L × W × H) | 77 mm × 47 mm × 38 mm |
| Weight | 120 g (±5 g) |
| Color | Black |
| Material | Aircraft-grade aluminum alloy |
| Operating temperature | -20°C to +50°C |
| Storage temperature | -40°C to +70°C |
