The DJI MAVIC 2 PRO quadcopter consists of the following main parts:

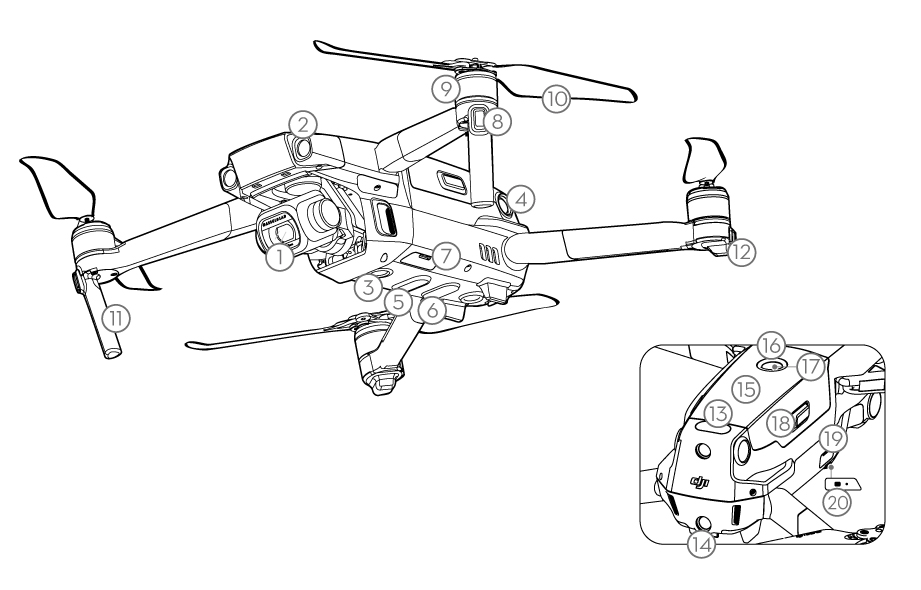

Fig. 1. Topodrone DJI MAVIC 2 PRO PPK quadcopter
| Gimbal and camera Forward vision system Downward vision system Lateral vision system Bottom infrared sensing system Auxiliary bottom light microSD card slot Front LEDs Motors Propellers | 11. Antennas 12. Aircraft status indicator 13. Top infrared sensing system 14. Backward vision system 15. Intelligent Flight Battery 16. Battery level LEDs 17. Power button 18. Battery buckles 19. USB-C port 20. Linking button / link status indicator |
