TOPODRONE LiDAR AVIA
Product of the day
Hit
Recommend
New
Sales
Specifications
Country of origin
—
Switzerland
Warranty
—
12 month
Weight
—
0.8 kg
Operating temperature range
—
-20°C ... +65°C
Working without reference points
—
Yes
All specifications
$9.490/pcs.
In stock
Add to cart
Buy set
TOPODRONE LiDAR AVIA
$9.490 * 1 pcs.
|
DJI Matrice 300 RTK |
$9.900 * 1 pcs.
|
|
|
TOPODRONE Camera 24 PPK |
$3.590 * 1 pcs.
|
|
|
UgCS Expert Perpetual License |
$1.610 * 1 pcs.
|
|
|
TOPODRONE LiDAR Post Processing Perpetual License |
$5.000 * 1 pcs.
|
|
|
LiDAR360 Framework Perpetual License |
$3.000 * 1 pcs.
|
|
|
LiDAR360 Terrain Perpetual License |
$1.500 * 1 pcs.
|
|
|
3Dsurvey Perpetual License |
$3.060 * 1 pcs.
|
|
|
DJI Matrice 300 Series BS60 Intelligent Battery Station |
$1.200 * 1 pcs.
|
|
|
DJI Matrice 300 Series TB60 Intelligent Flight Battery |
$660 * 4 pcs.
|
| Bundle price | $40.990 |
$40.990
Features
- The most affordable LiDAR on the market

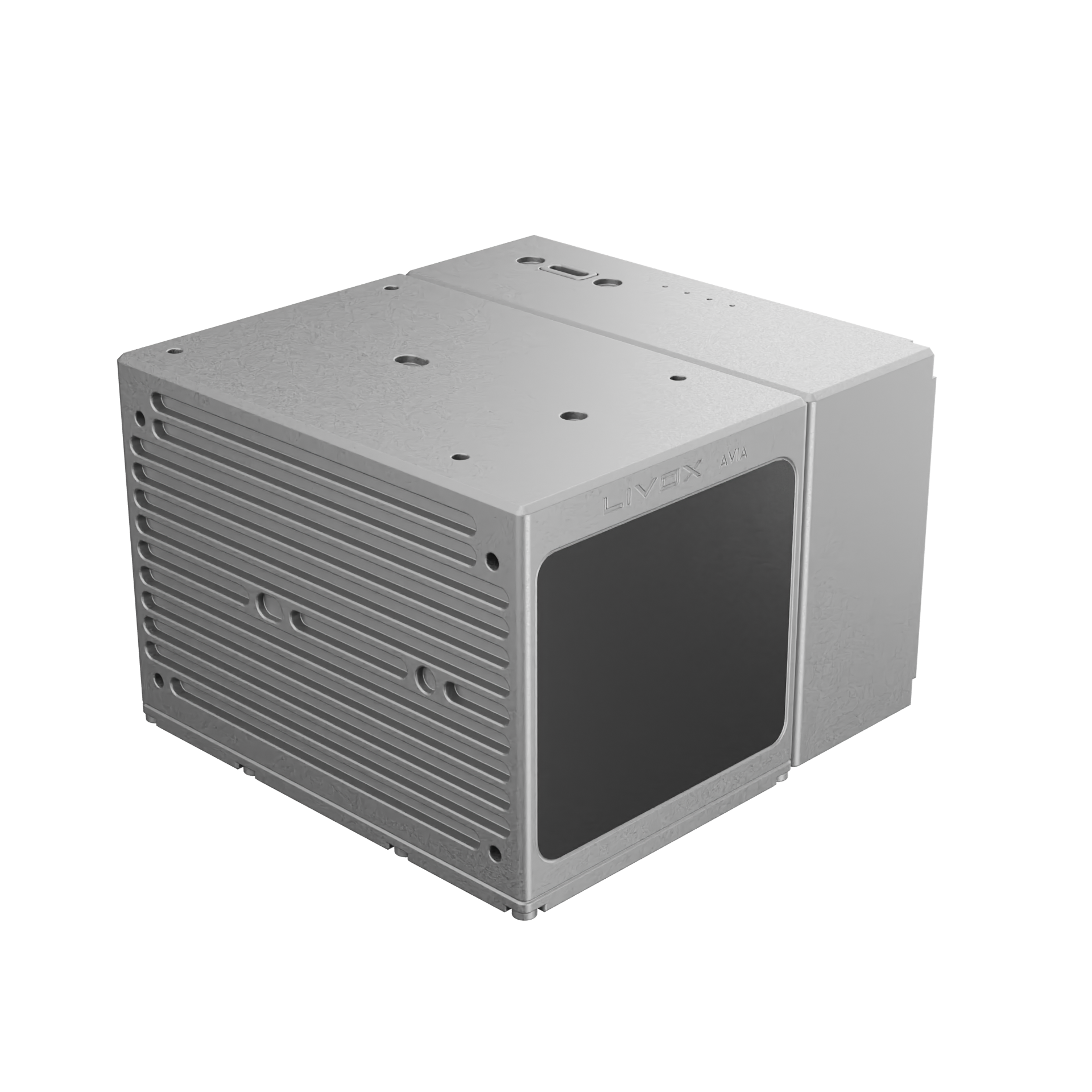

- Modern solid-state laser sensor Livox Avia
- High-precision IMU integrated with GNSS receiver TOPODRONE PPK

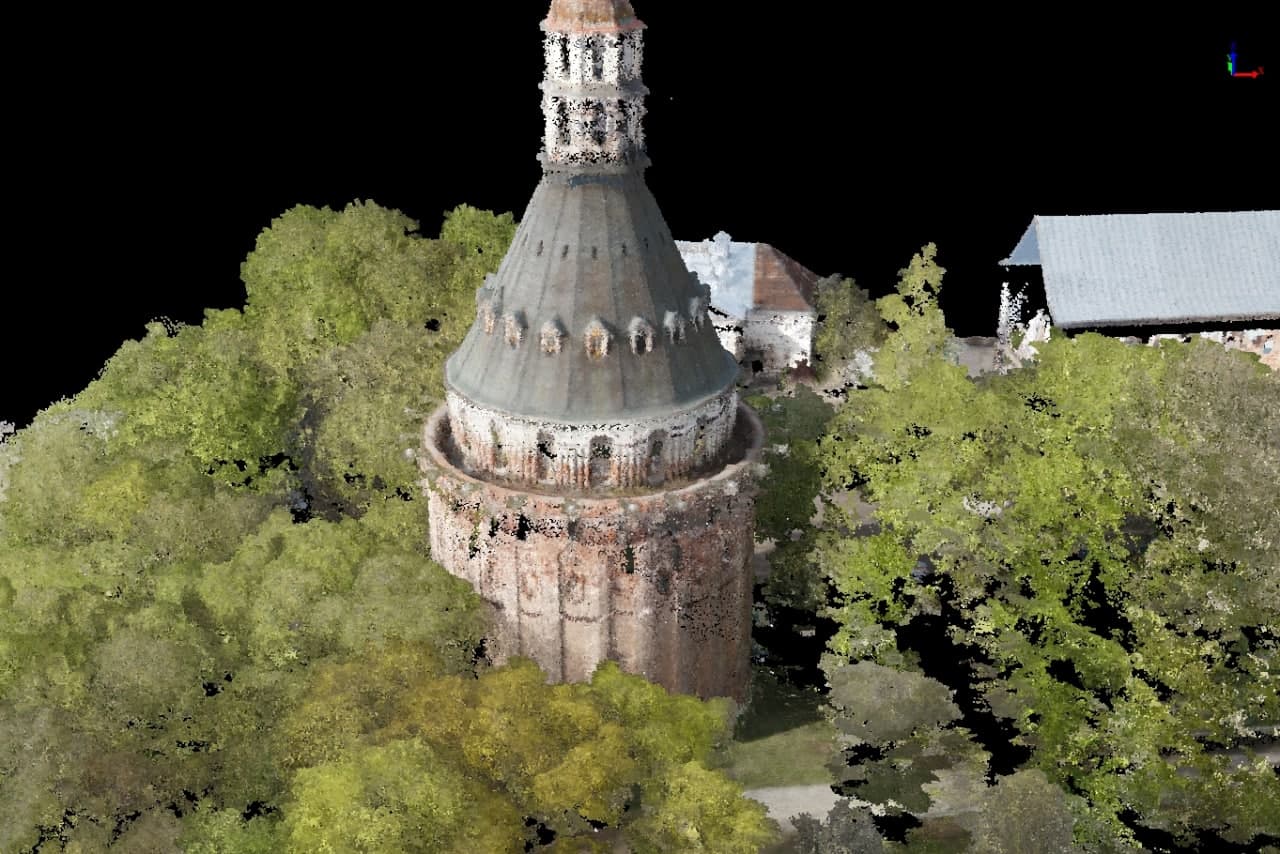

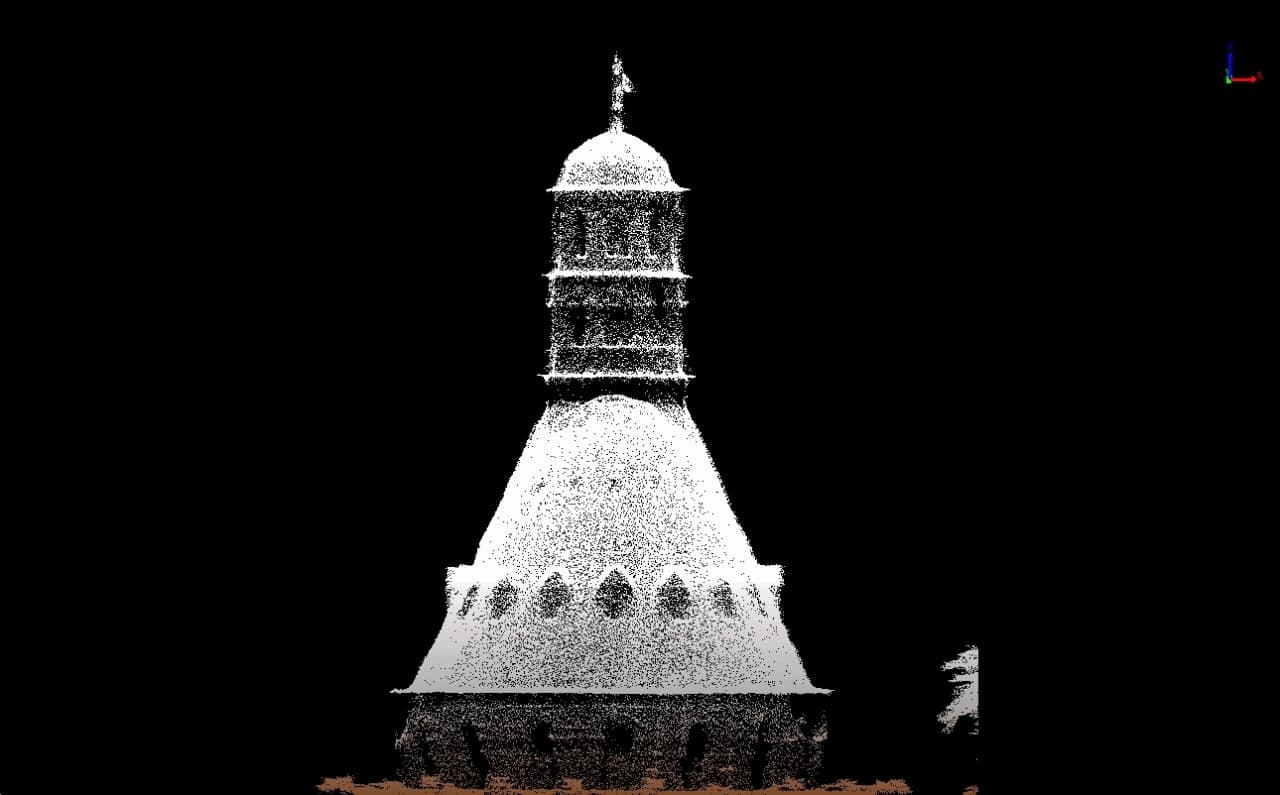

- The speed of dense point cloud generation is 10 times higher than in photogrammetry
- The laser scanning is performed automatically

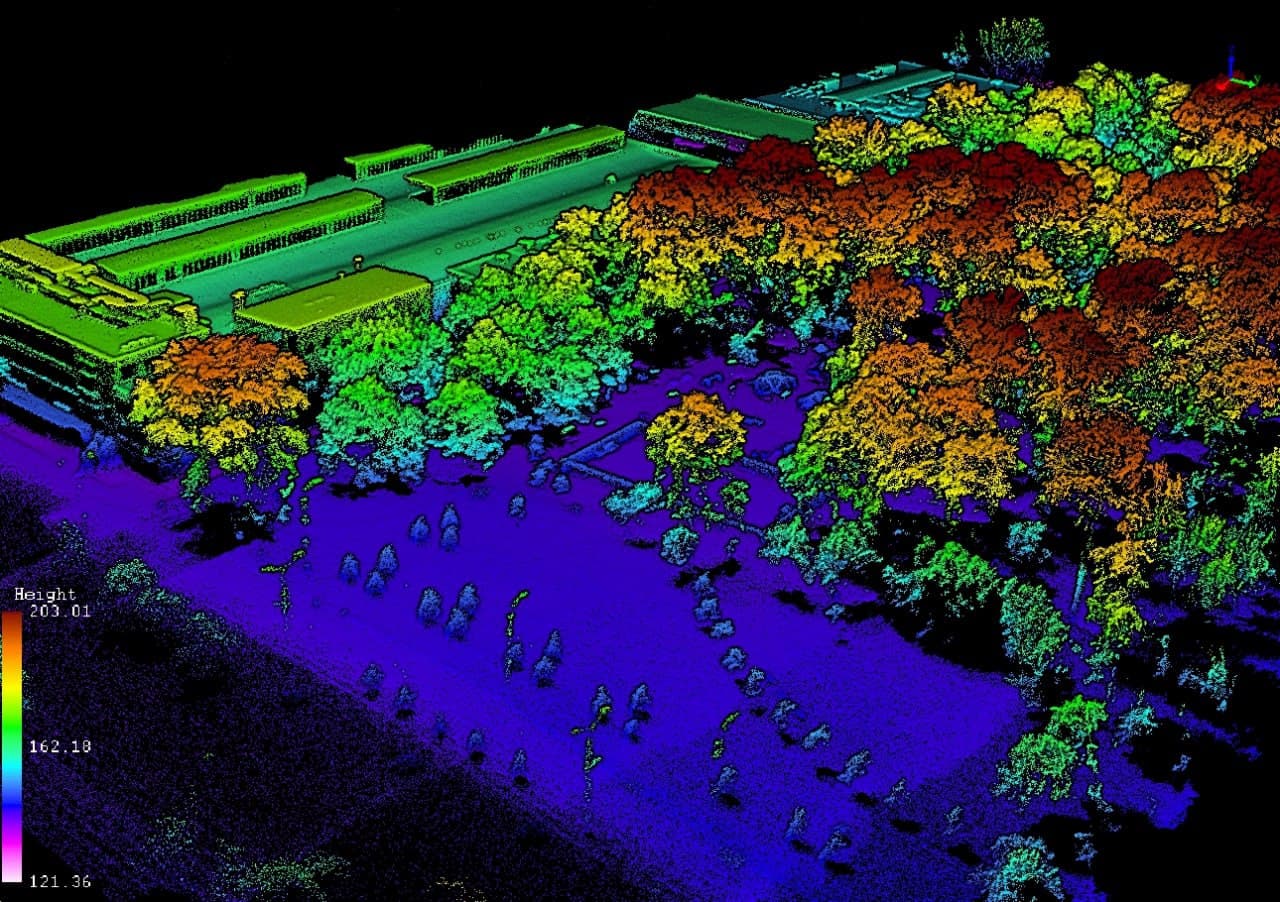

- Allows you to get terrain under trees and tall grass
- Installation on any drone, including:
- DJI Matrice 300 RTK
- DJI Matrice 200 / 200 V2
- DJI Matrice 210 / 210 V2 / 210 RTK
- Performing aerial laser scanning without GCPs
- Works in PPK mode without the need to access the Internet
- Getting fixed solutions at a distance of up to 25 km from base stations
- Writing data to a microSD
- Automatic conversion to local coordinate systems
- The possibility of purchasing an Upgrade Kit for assembling a LiDAR from an already purchased laser sensor
In the box
- 1 * TOPODRONE AVIA LiDAR
- 1 * Removable GNSS L1/L2 antenna
- 1 * Mounting for GNSS antenna
- 1 * Cables
- 1 * MicroSD 16Gb
- 1 * TOPOLiDAR Point Cloud software
- 1 * User manuals and video tutorials

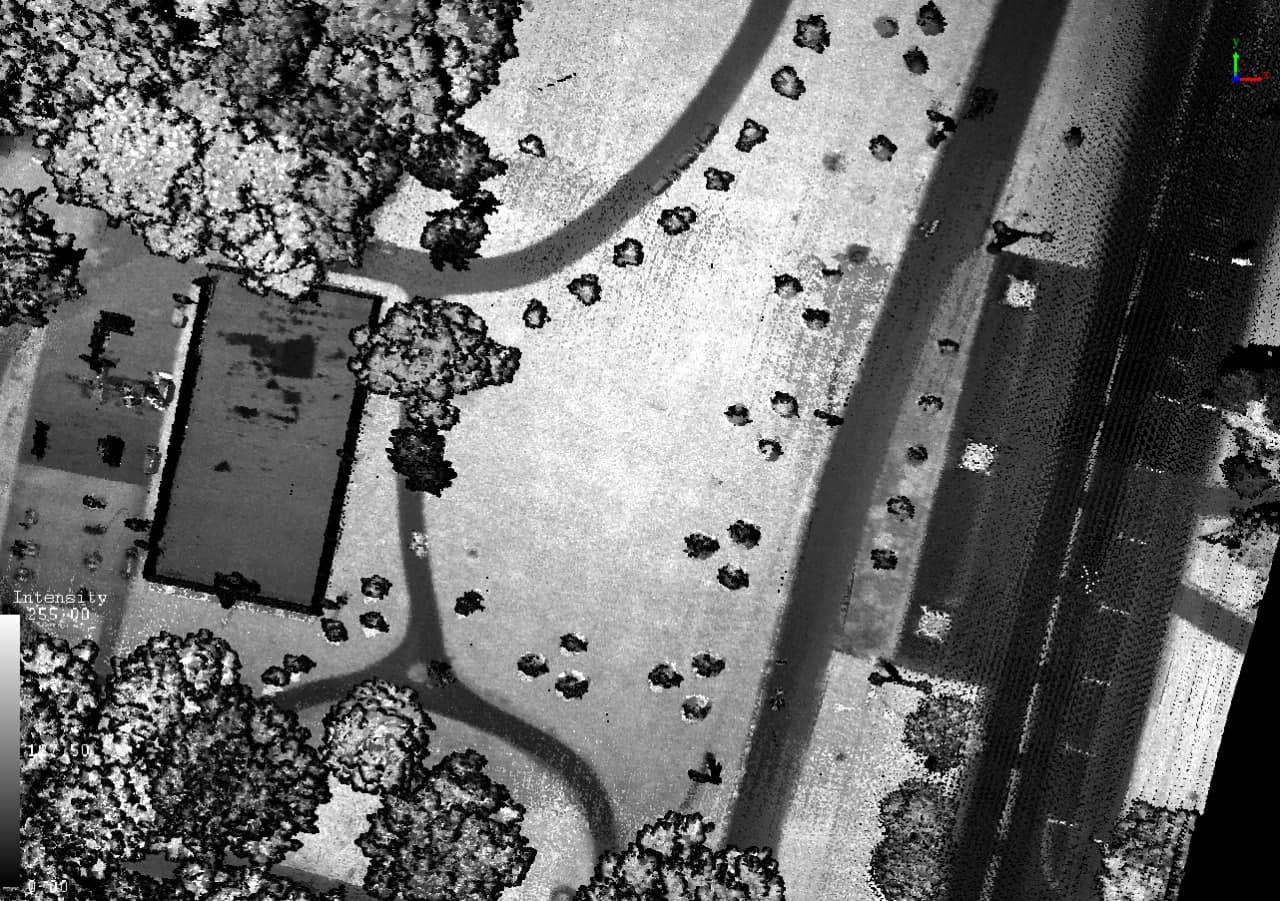

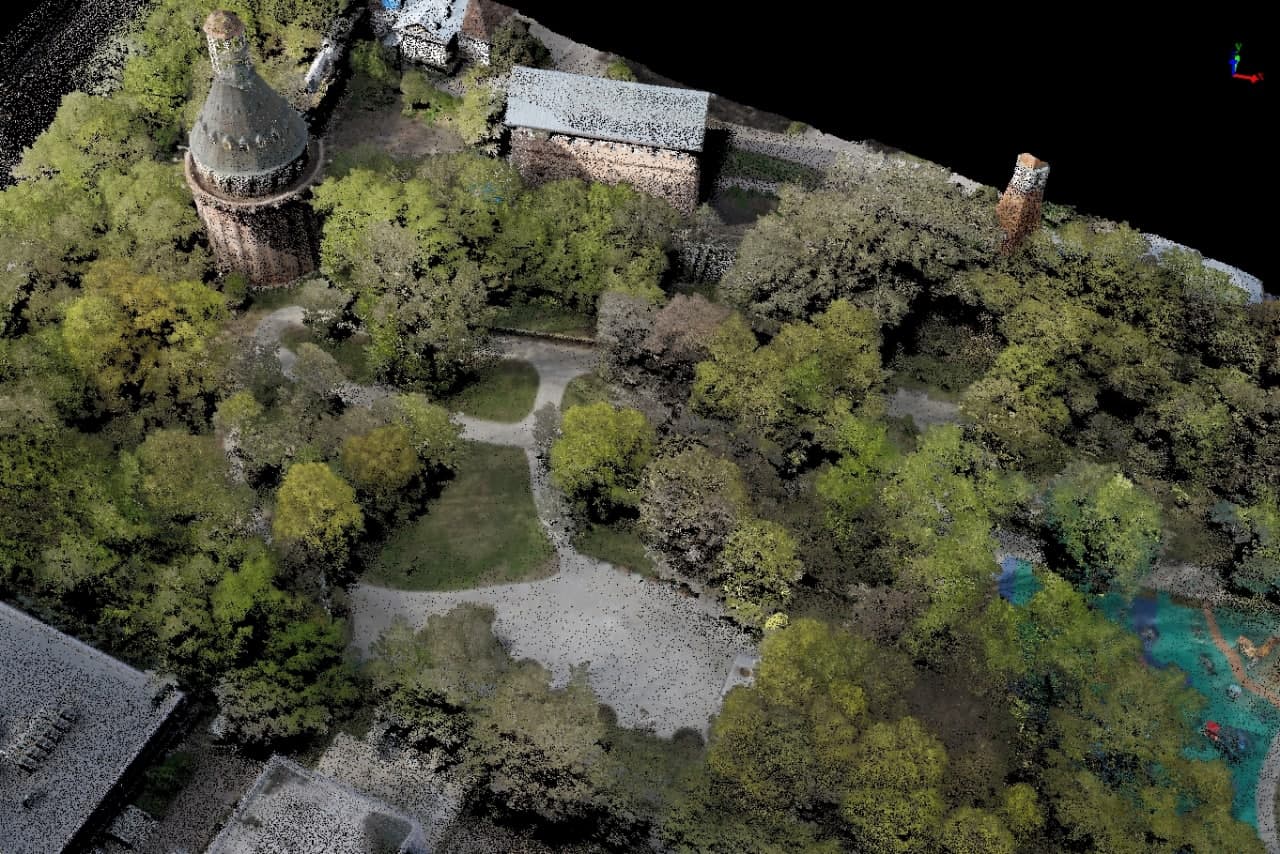

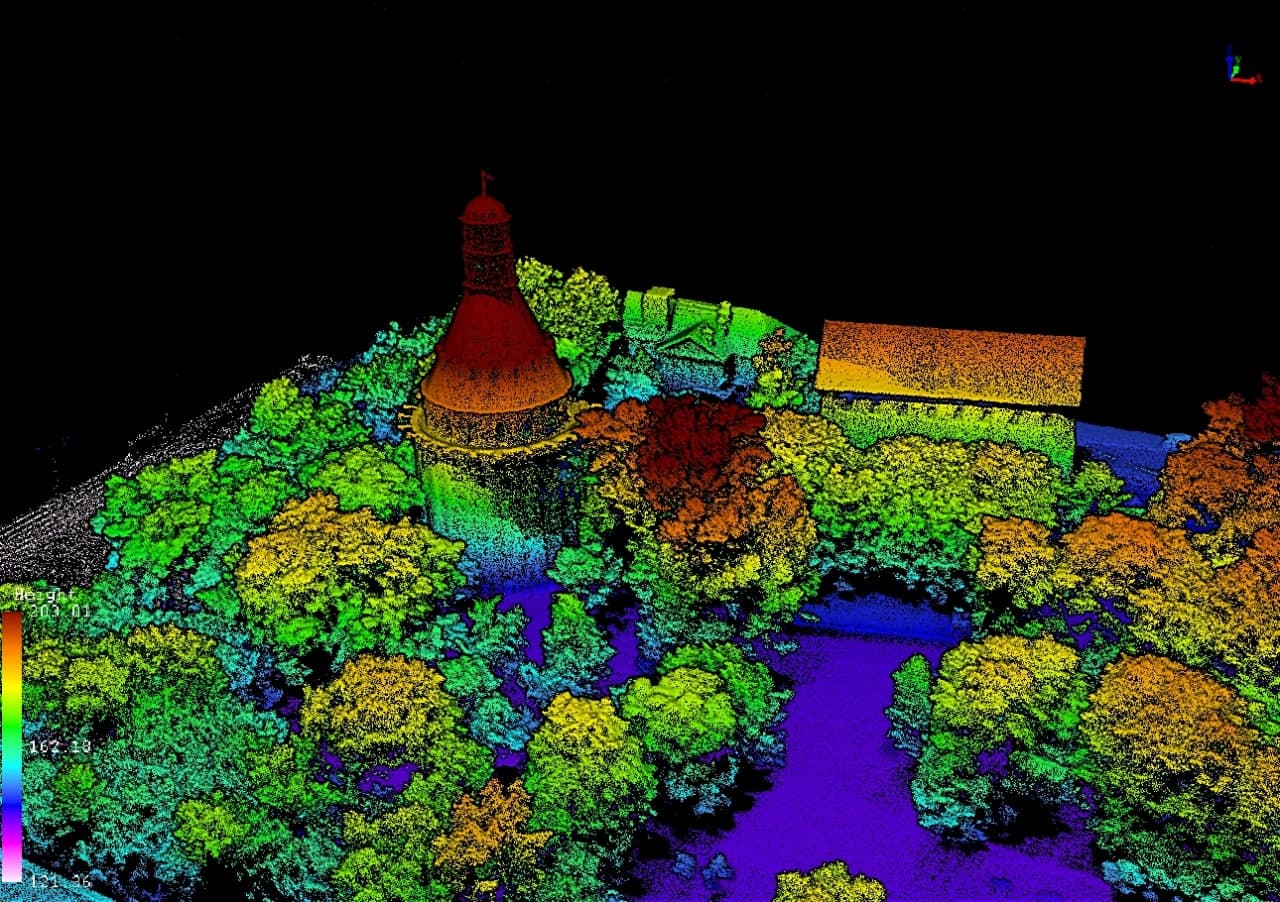

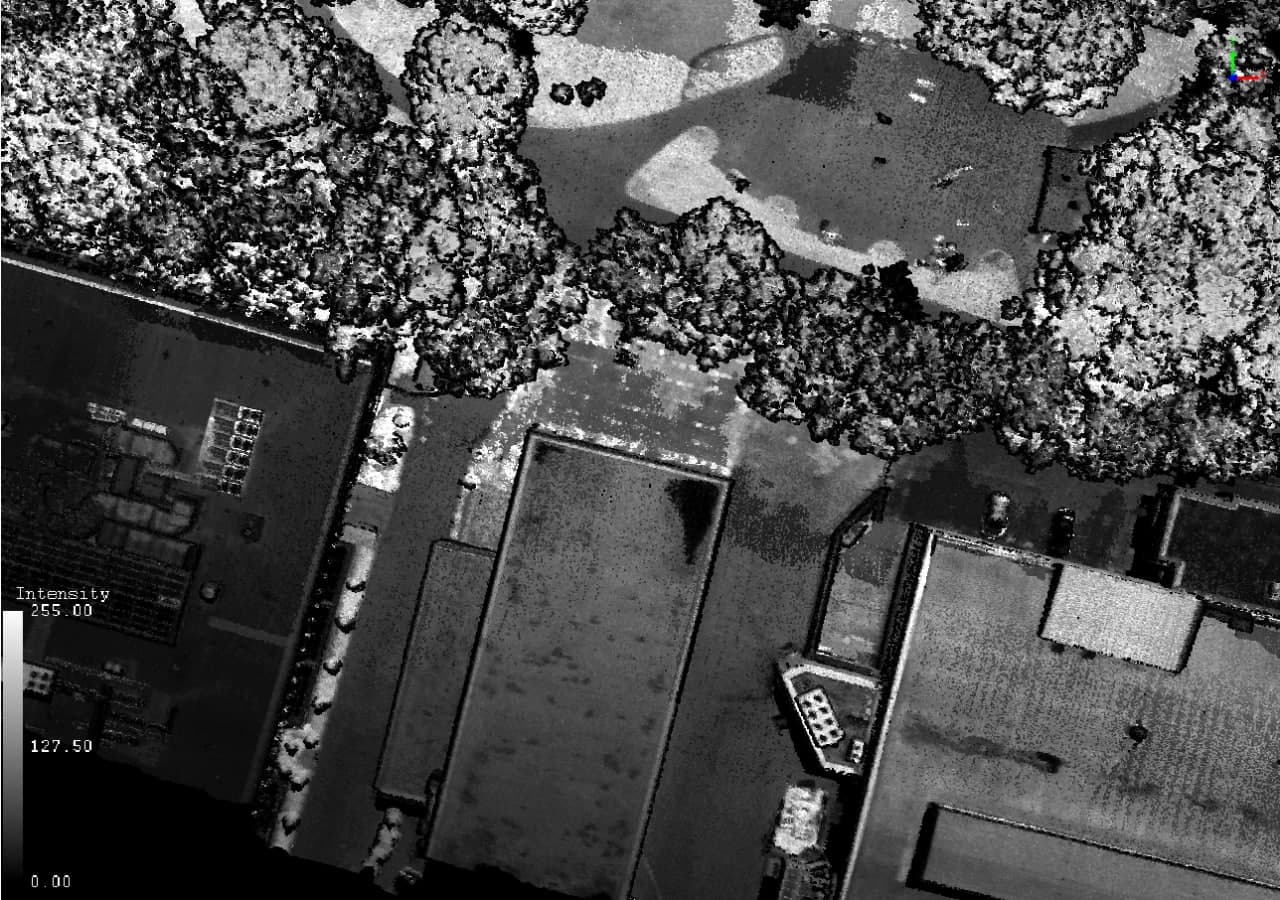

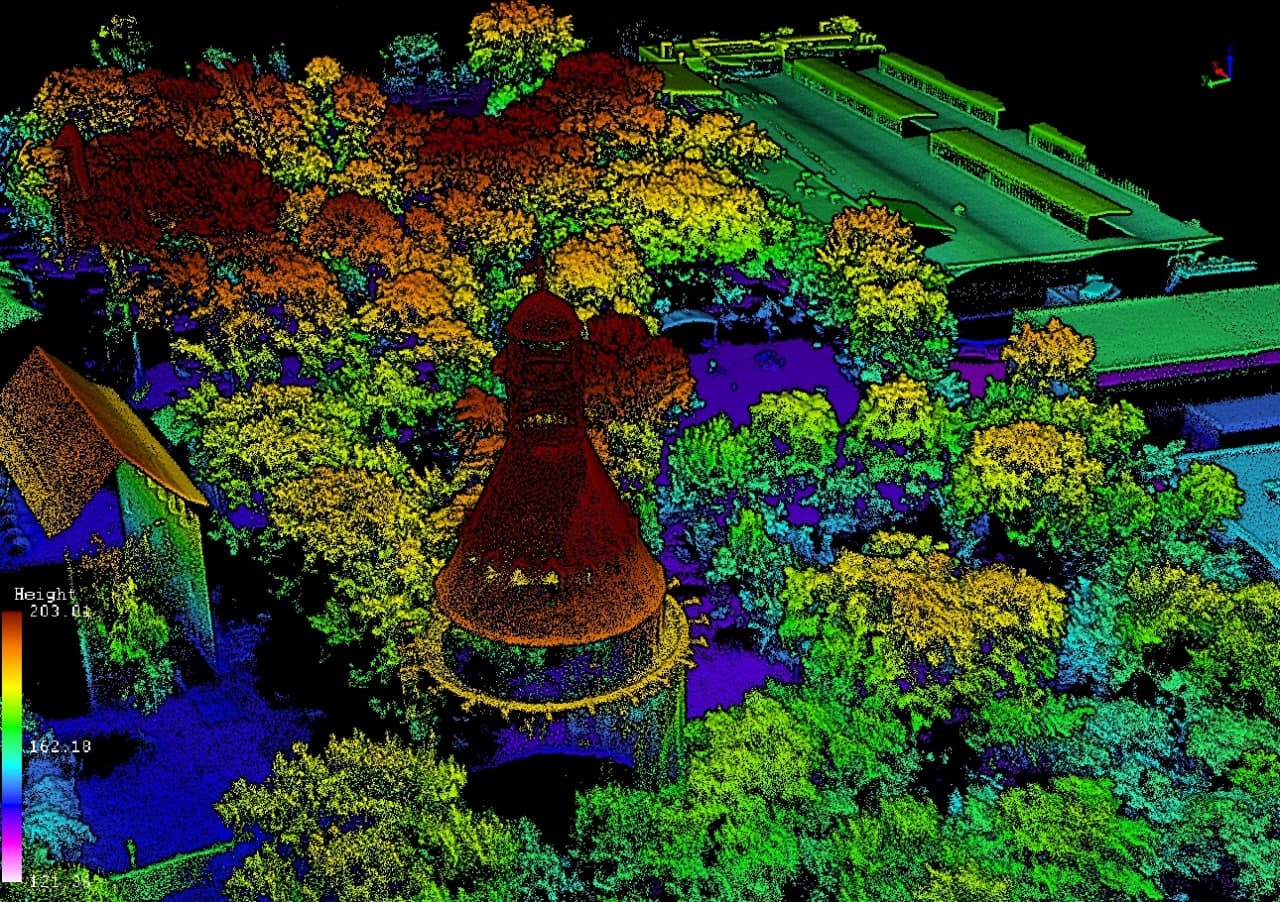

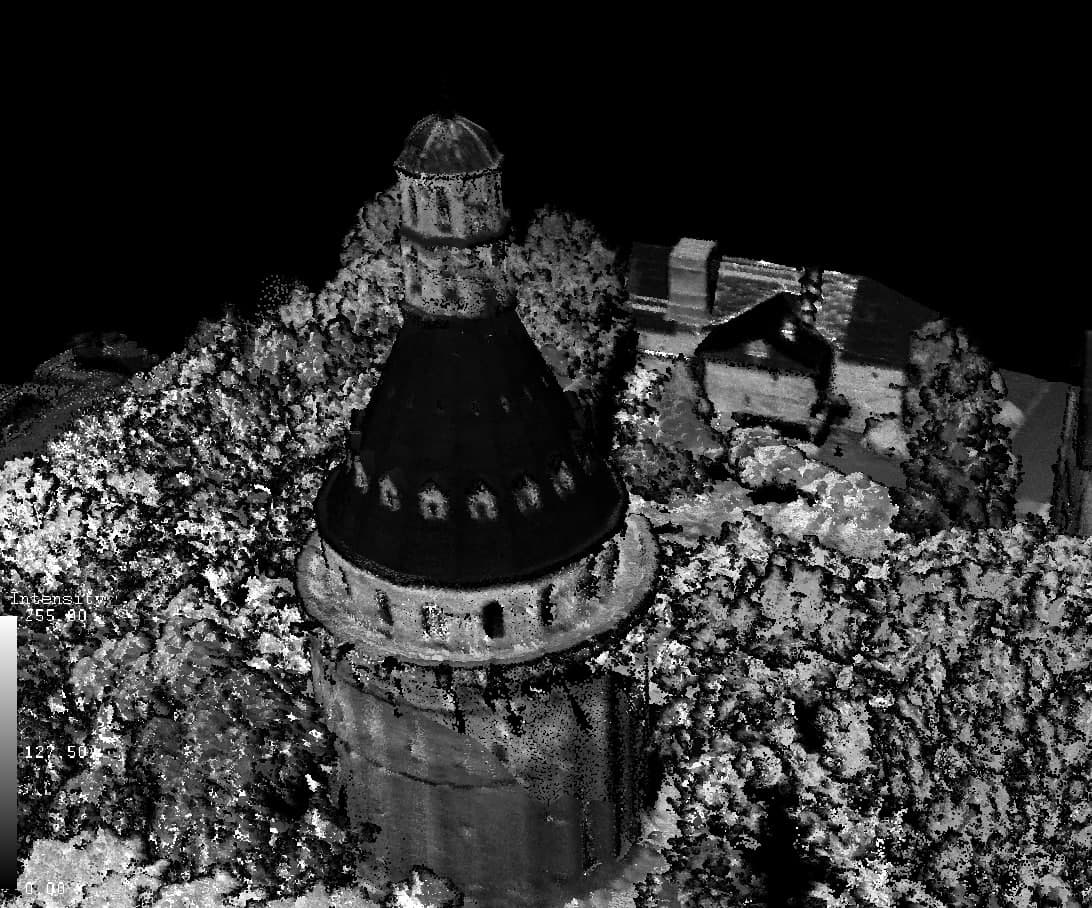

Photo Gallery
1/9
—
Manufacturer
Country of origin
Switzerland
Warranty
12 month
Weight
0.8 kg
Operating temperature range
-20°C ... +65°C
Working without reference points
Yes
GPS support
L1C/A, L2C
GLONASS support
L1OF, L2OF
BeiDou support
B1I, B2I
Galileo support
E1B/C, E5b
SBAS support
L1C/A
QZSS support
L1C/A, L1S, L2C
Ability to operate in PPK mode
Yes
Recording GNSS data to a microSD card
Yes
Receiver type
L1/L2
Number of channels
184
Frequency of GNSS data recording
10 Hz
Accuracy of point coordinates determination
3-5 cm

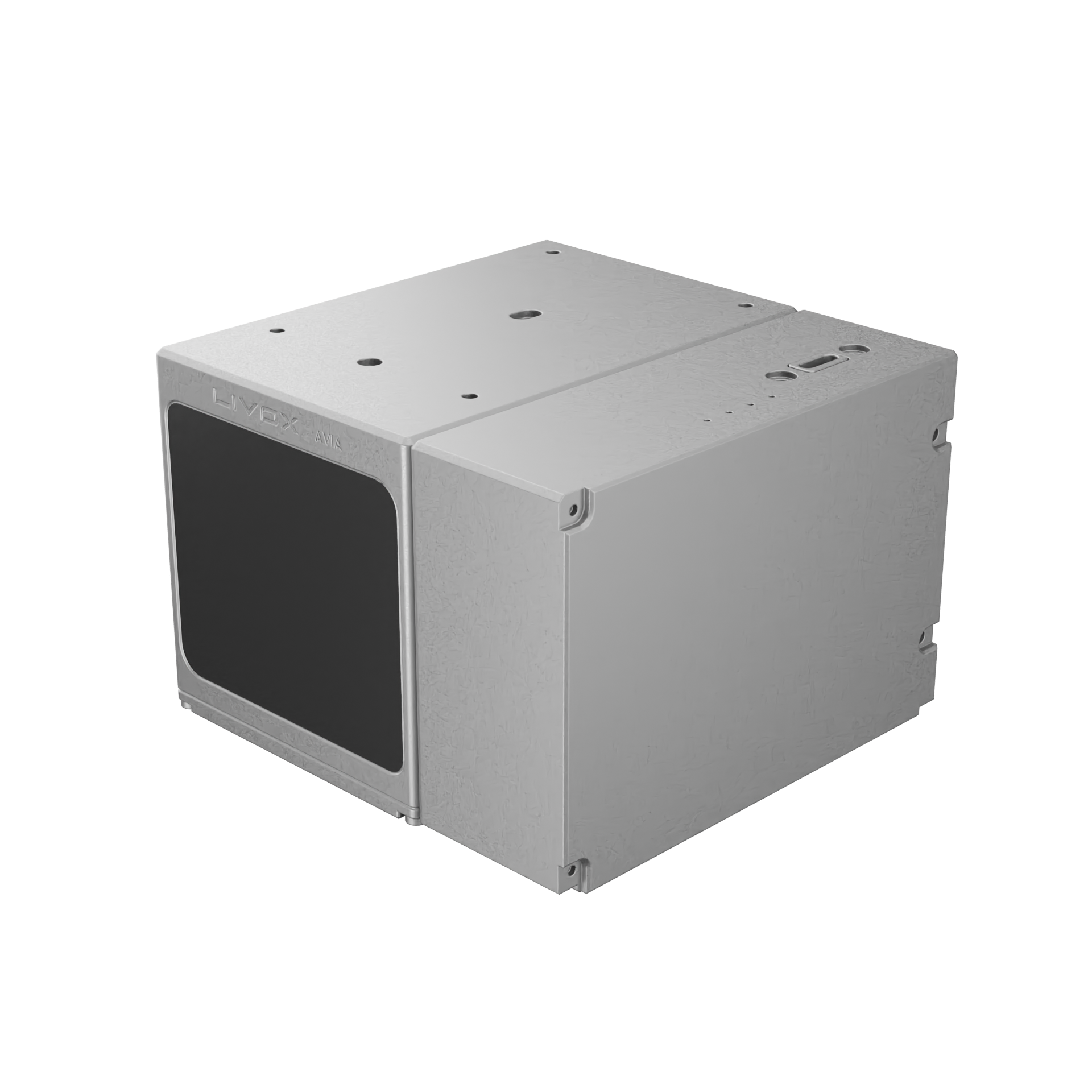

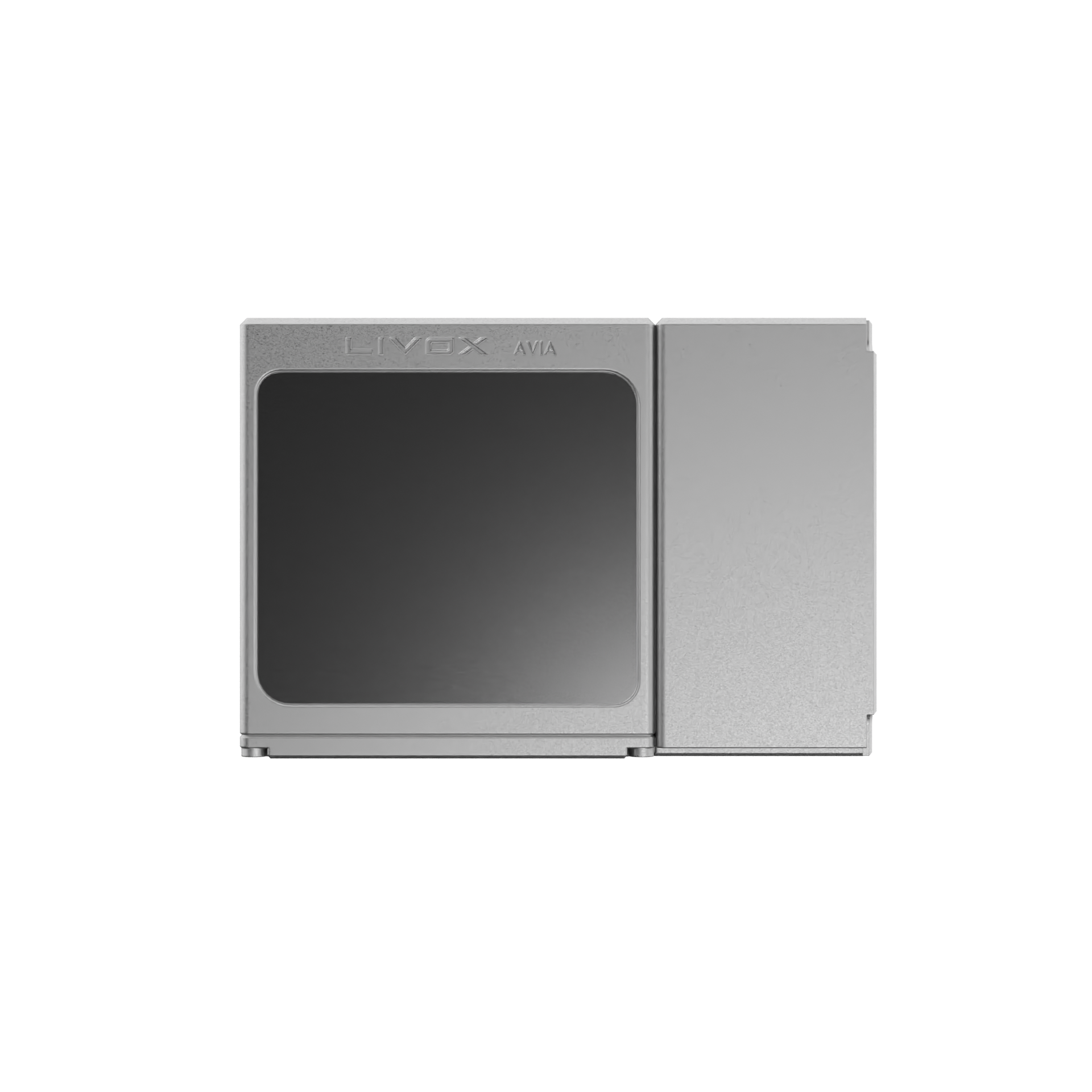

Laser sensor type
Livox Avia
Accuracy of point coordinates determination
3-5 cm at 70 m
Maximum operating range of the laser scanner
150 m
Working range of the laser scanner
50-70 m
Horizontal FOV
70.4°
Vertical FOV
77.2°
Scanning frequency (single reflection)
240000
Scanning frequency (double reflection)
480000
Scanning frequency (triple reflection)
720000
Laser wavelength
905 nm
Laser class
1
Protection level
IP67
Recording data to a microSD card
Yes
Connecting the camera
Yes
Integrated Inertial Navigation Unit (IMU)
Yes
Frequency of IMU operation
200 Hz
Heading accuracy (°, 1σ)
0,08
Pitch accuracy (°, 1σ)
0,03
Roll accuracy (°, 1σ)
0,03
Built-in GNSS receiver
Yes
