CH-TD-AQUA
Buy set
TOPODRONE Aquamapper
$19 900 * 1 pcs.
|
UgCS Expert Perpetual License |
$1 490 * 1 pcs.
|
|
|
DJI Matrice 350 RTK |
$12 460 * 1 pcs.
|
|
|
DJI Matrice 350 Series BS65 Intelligent Battery Station |
$1 320 * 1 pcs.
|
|
|
DJI Matrice 350 Series TB65 Intelligent Flight Battery |
$1 005 * 6 pcs.
|
| Bundle price | $41 200 |
$41 200
Description

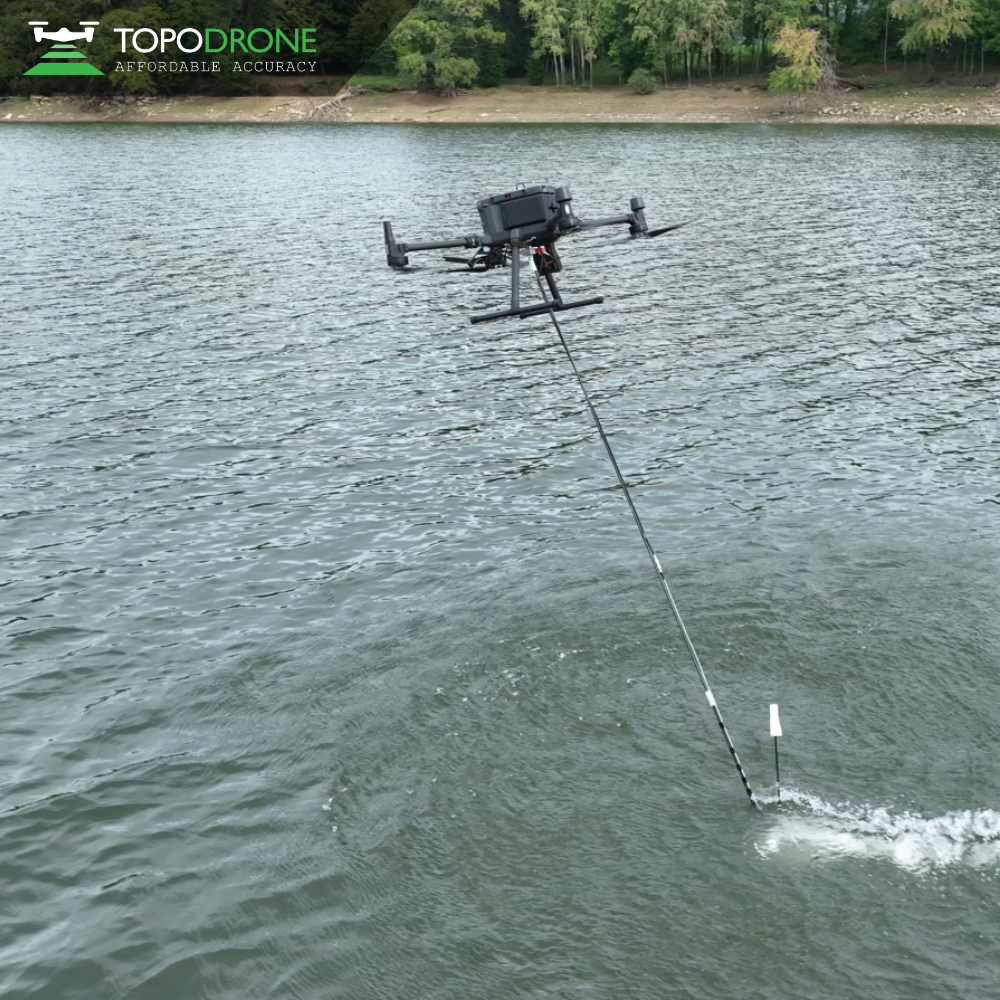

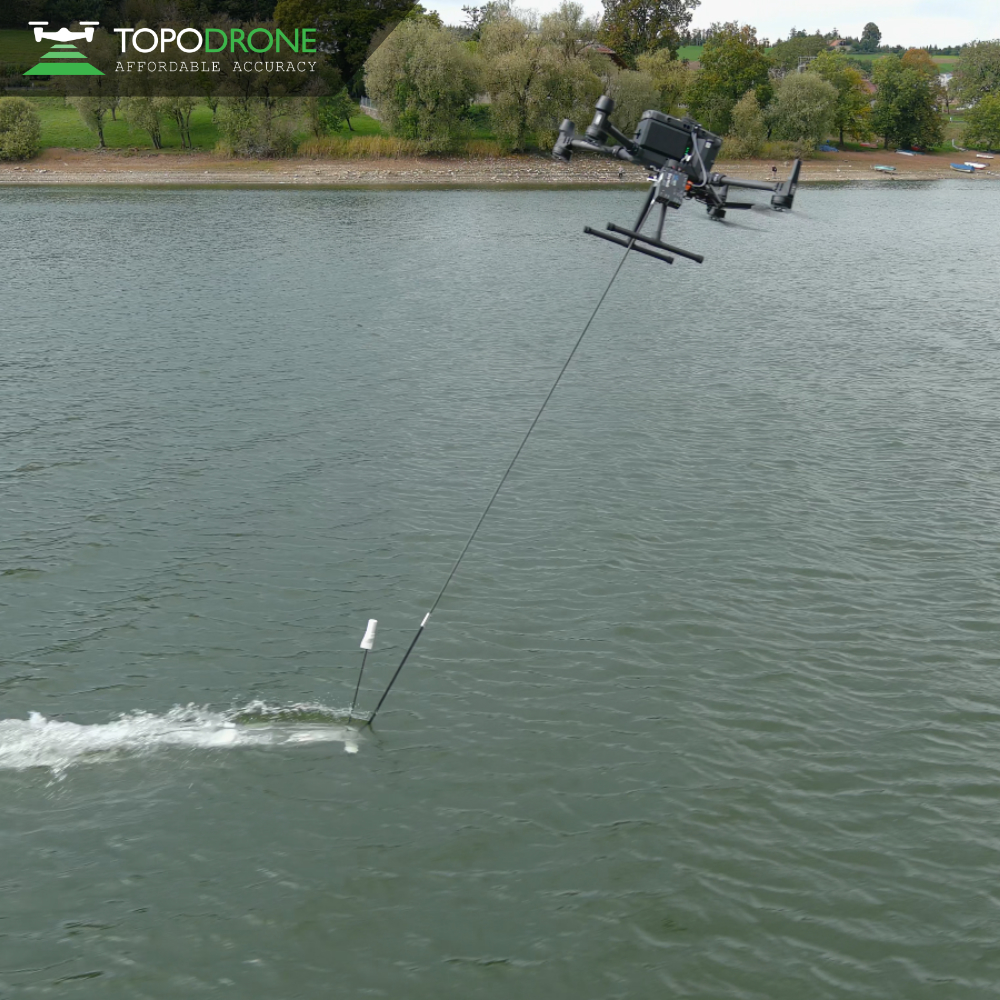

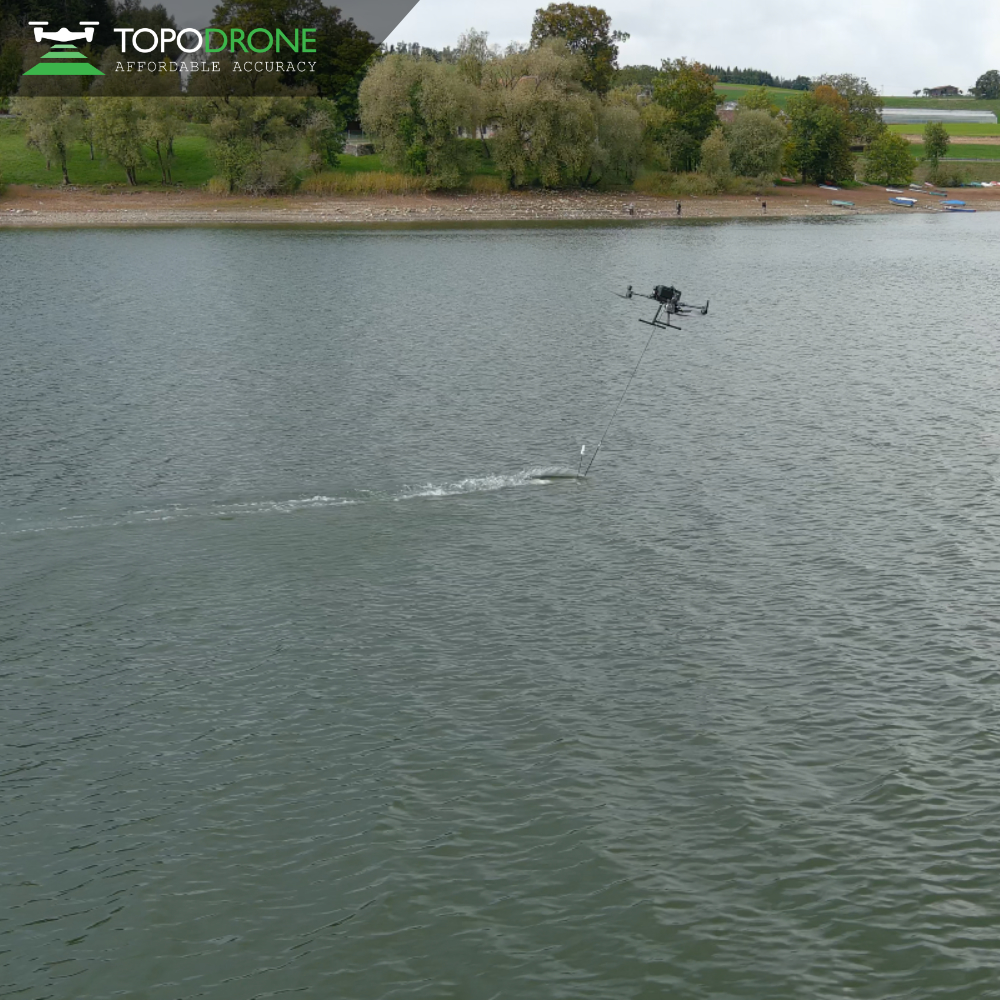

AQUAMAPPER is the new drone-based solution in the bathymetric survey and marine construction, it is a unique multitasking platform specially designed for a wide range of applications in the maritime branch and other water sources. This product provides a great combination of high speed efficiency and accuracy, successfully challenging conventional methods such as boats and providing obvious profit as a cost-effective and easy-for-use solution.Features
- High survey speed up to 14 km/h;
- Centimeter level accuracy;
- Cheap and effective solution for marine survey;
- Easy planning and autonomic mission;
- Quick deploy, ready for use in 10 minutes;
- Ability to work in hard access and shallow water areas;
- Ability to use different sensors for any survey mission;
- Ability to combine data with LiDAR data;
- PPK ready solution;
- Compatible with DJI Matrice 300 RTK.
Applications

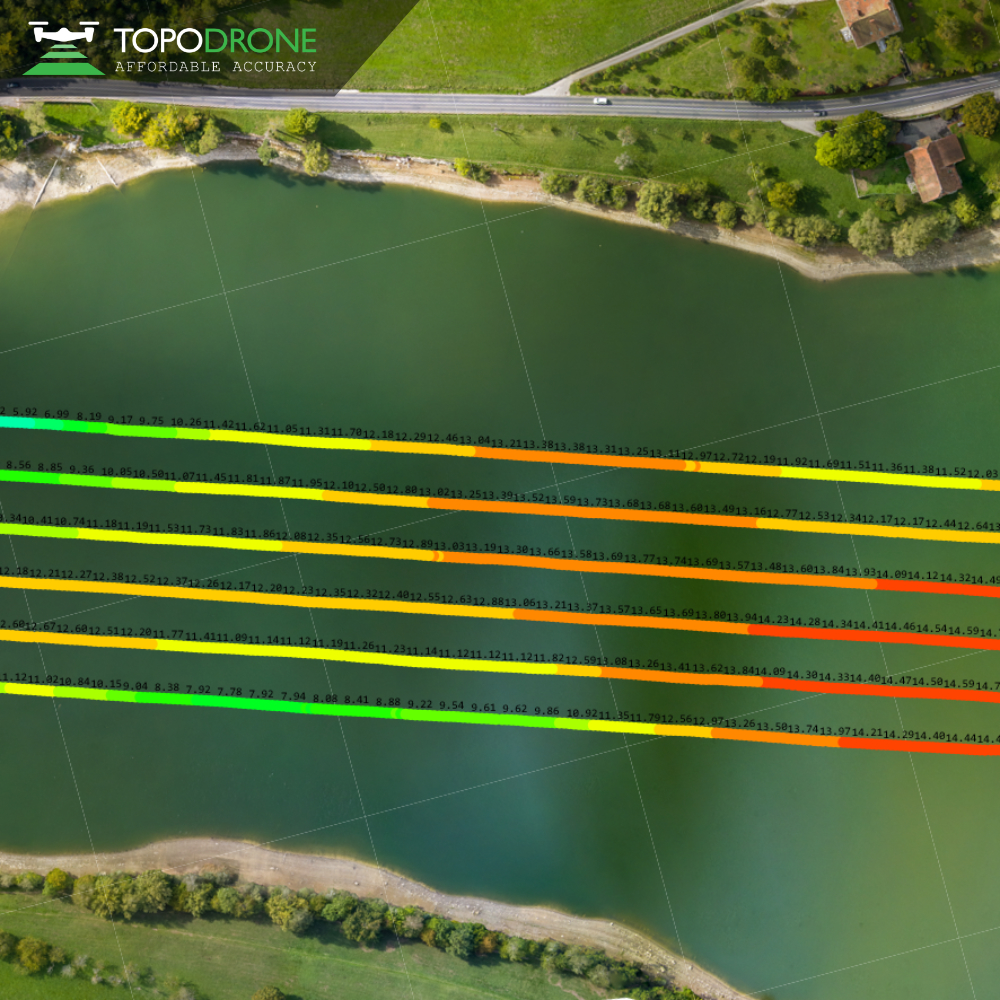

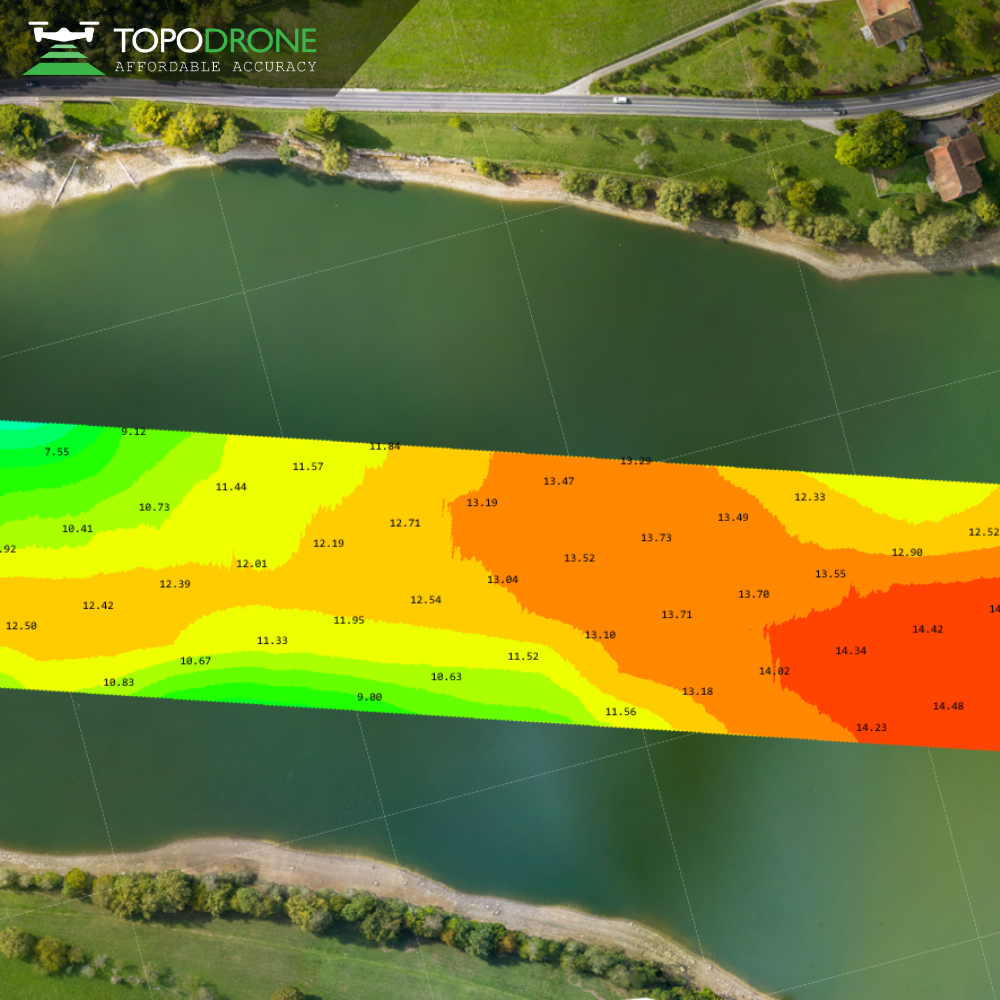

- Open sea bathymetric survey up to 100m depth;
- Periodic maintenance survey of storage pools;

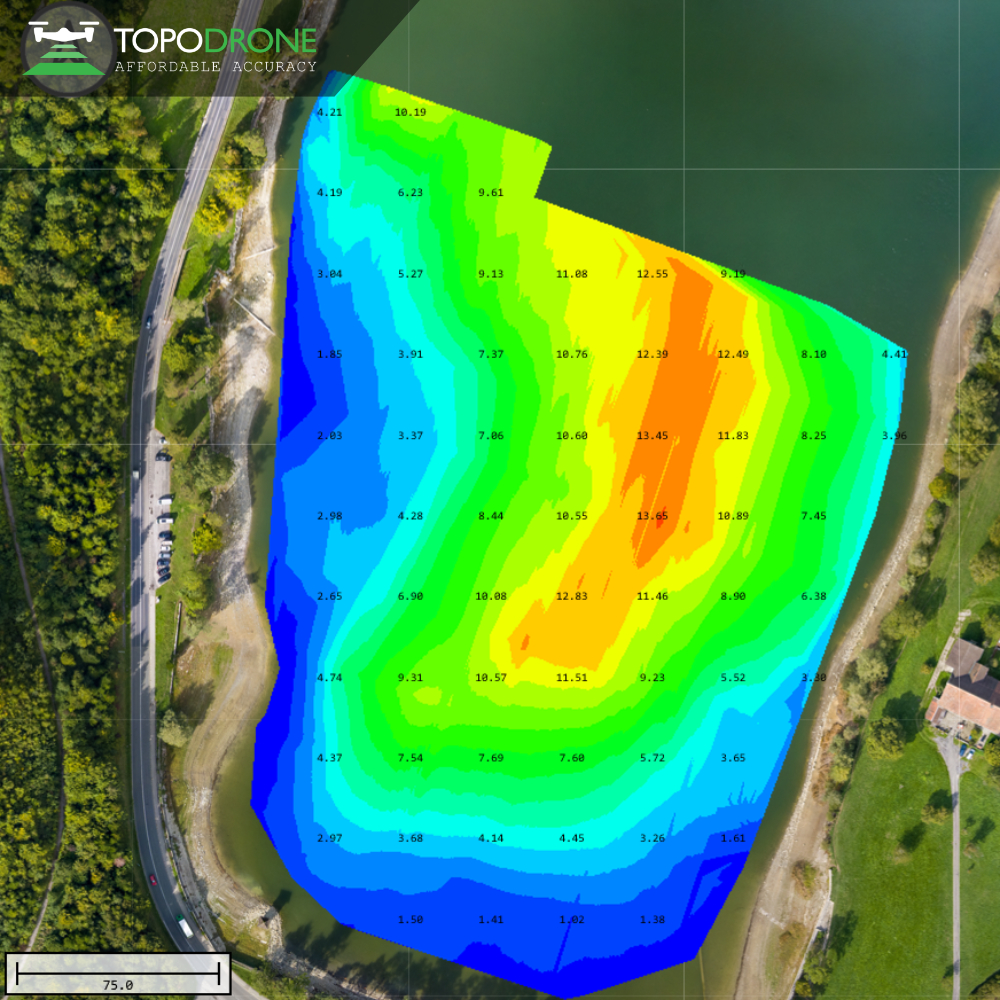

- Quantity survey and calculation of sediments;
- Bathymetric survey in shallow water and hard access areas.
In the box

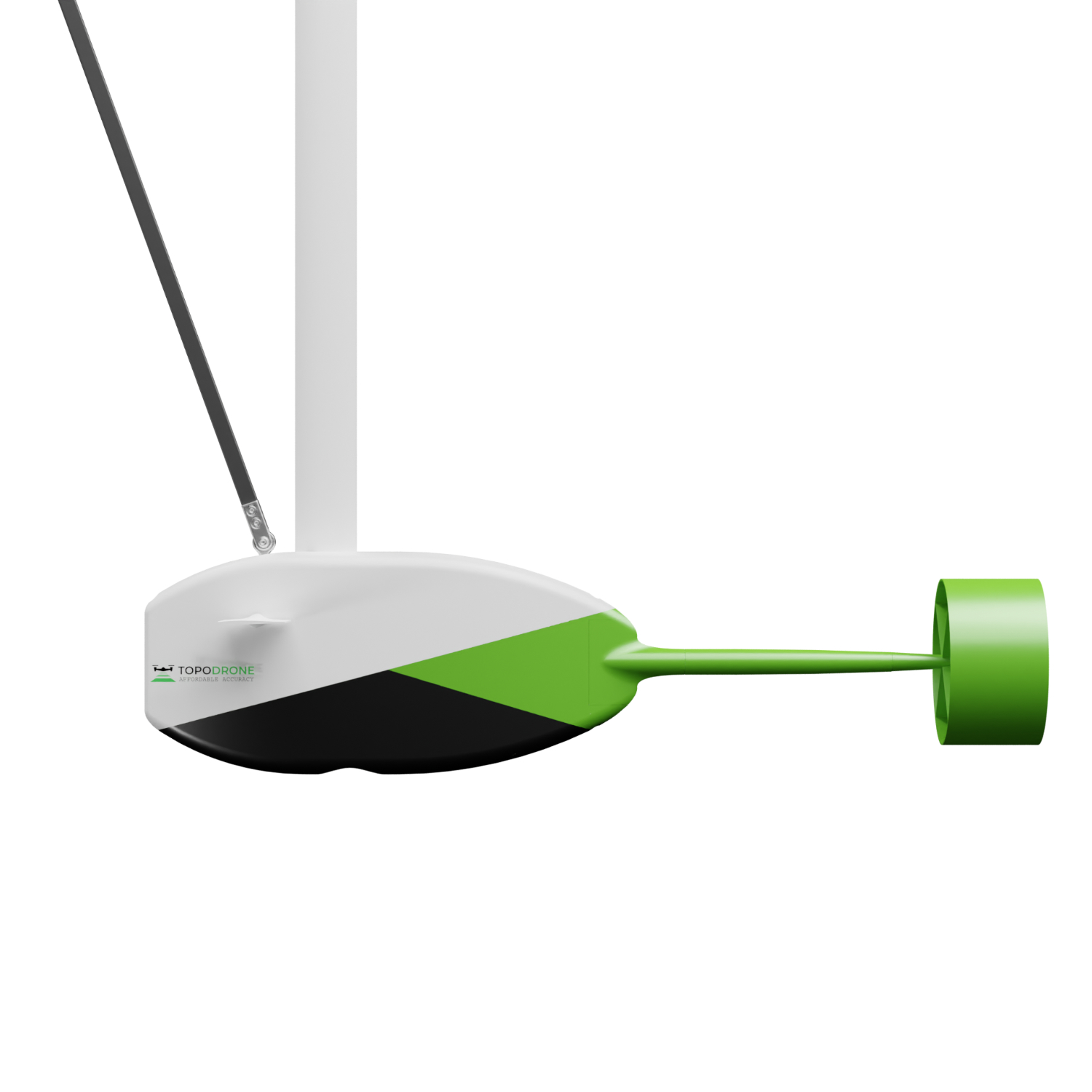

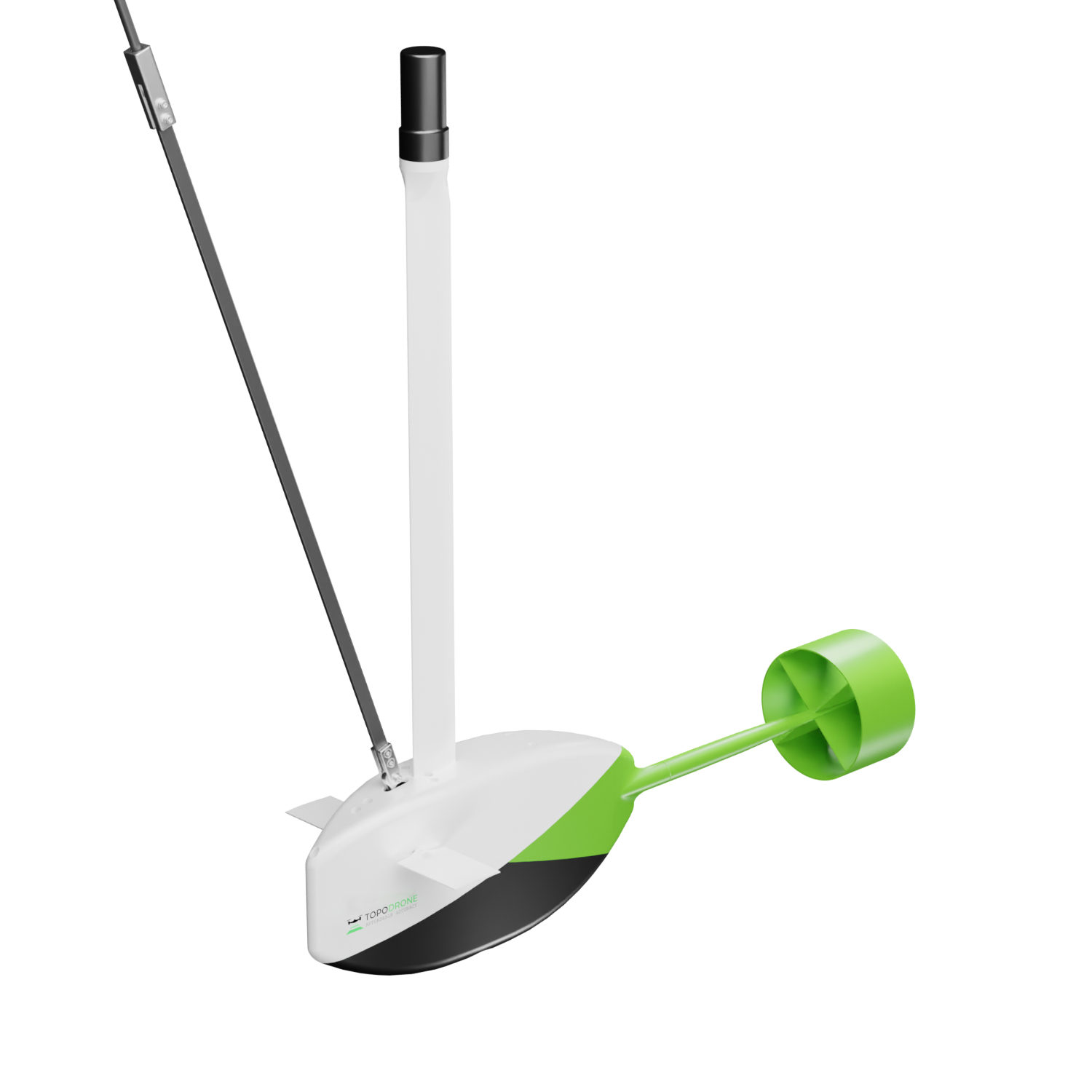

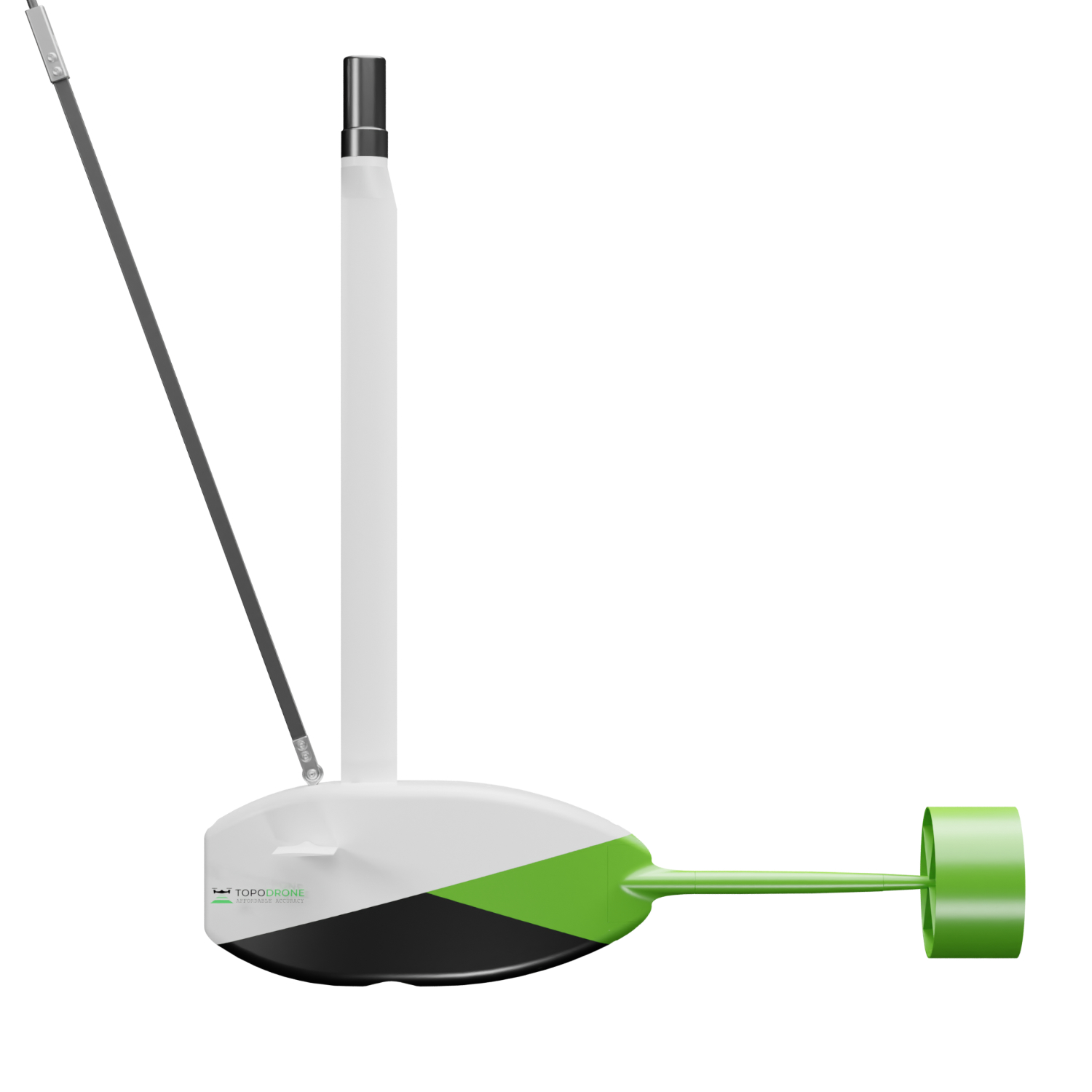

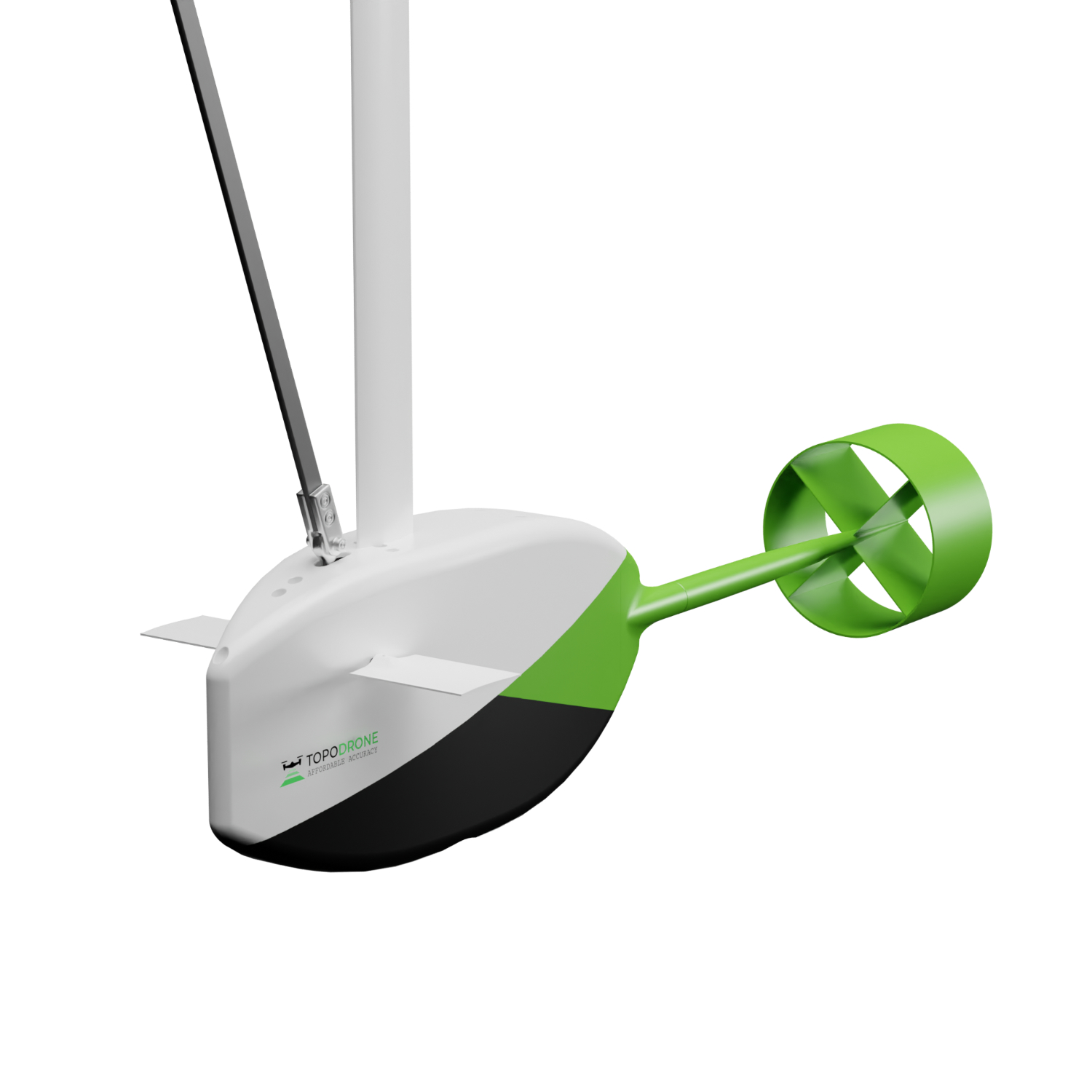

- 1 * TOPODRONE Aquamapper sensor
- 1 * GNSS antenna
- 1 * UgCS SkyHub

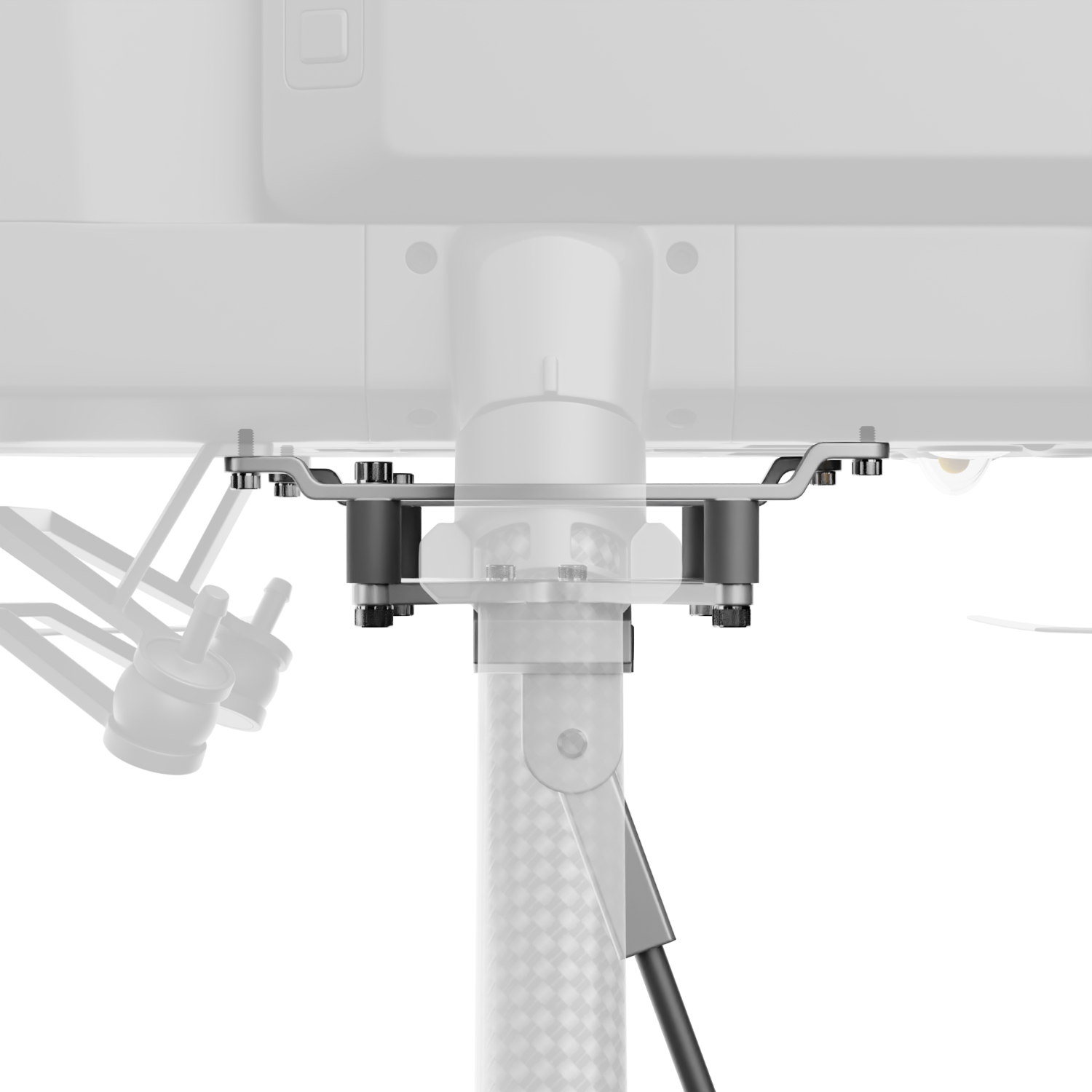

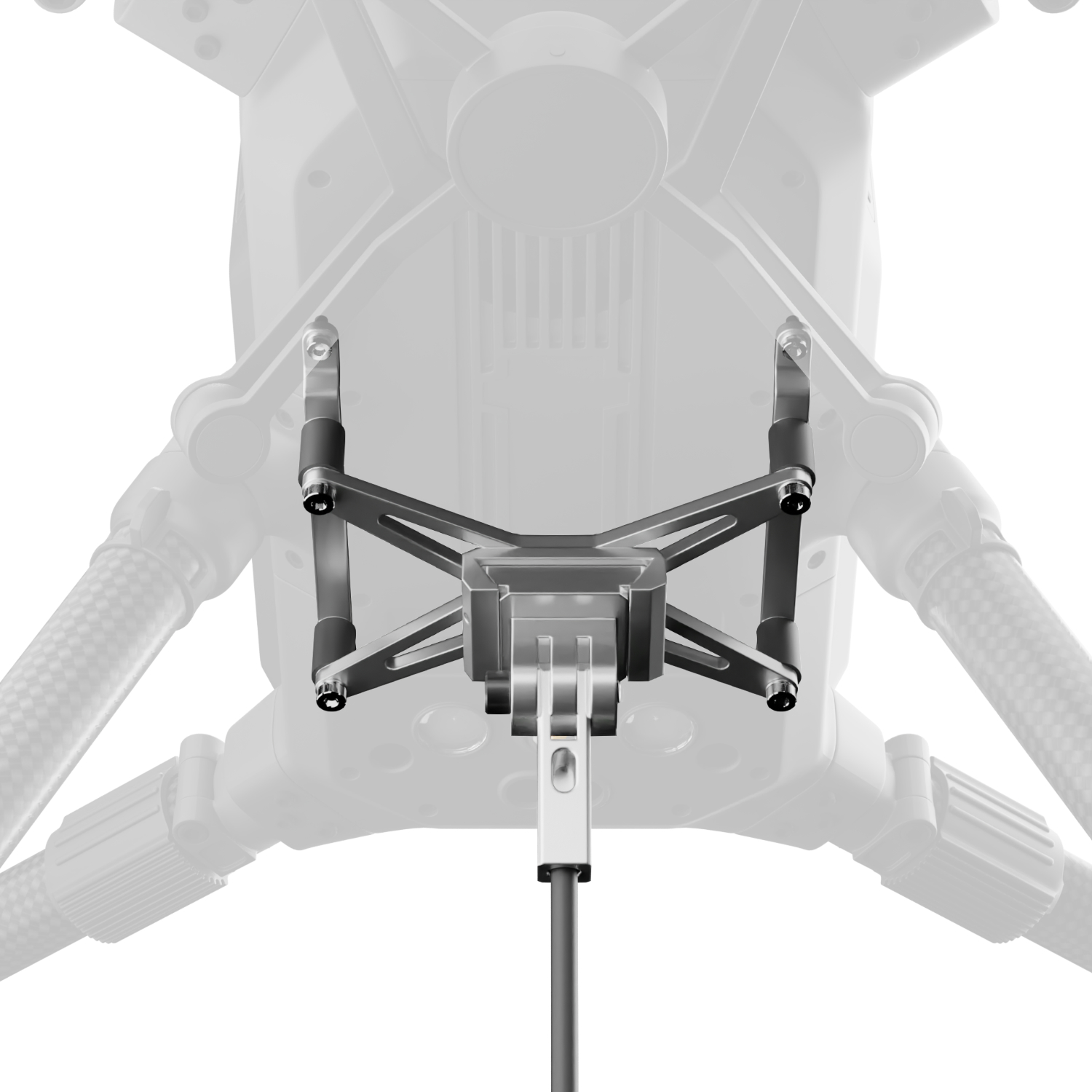

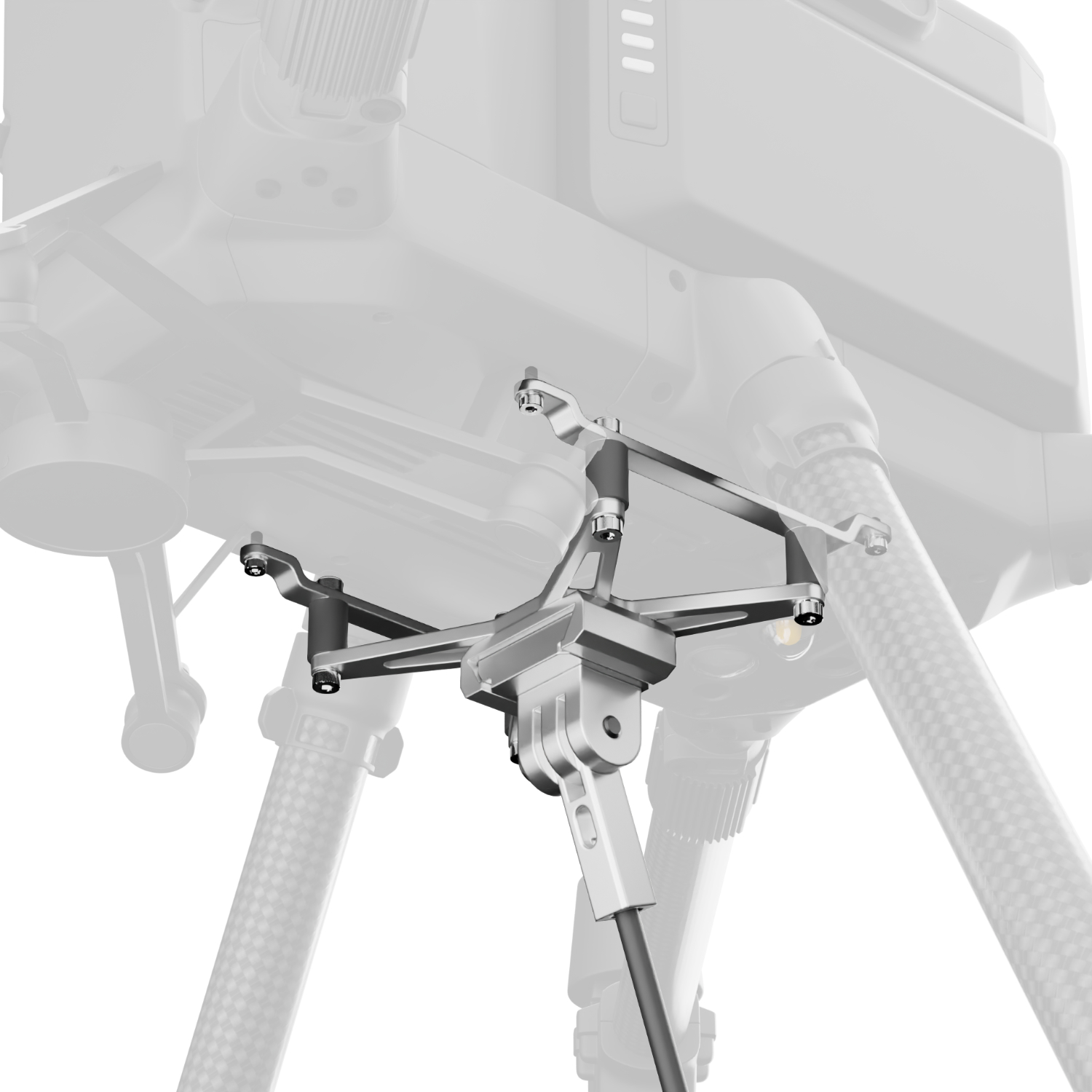

- 1 * Mounting to the drone
- 1 * Cable set
- 1 * Transportation case
Documents
TOPODRONE Aquamapper EN
1,5 MB
Gallery
6
a photo —
General
Country of origin
Switzerland
Warranty
12 month
Weight
2.5 kg
Dimensions
16.6 x 51.8 x 23 m
Operating temperature range
-10 ... +50 °C
GNSS receiver
Number of channels
184
Frequency
10 Hz
Data Accuracy
up to 5 cm XYZ
GPS
L1C/A, L2C
GLONASS
L1OF, L2OF
BeiDou
B1I, B2I
Galileo
E1B/C, E5b
SBAS
L1C/A
QZSS
L1C/A, L1S, L2C
Working without GCPs
Yes
Bathymetry
Operational crusing speed
up to 12 km/h
Depth measurement range
up to 100 m
Device immersion depth
-0.2 ... -0.4 m
Acoustic frequency
450 kHz
Beam width
5° Conical (-3dB)
Transmit pulse width
10 ... 200 msec (10 msec step)
Repetition rate (ping)
10 Hz
Temperature accuracy
0.5 °C
Stabilization
2-axis, +- 90°
Data output format
ASCII TXT, NMEA0183 or user defined
