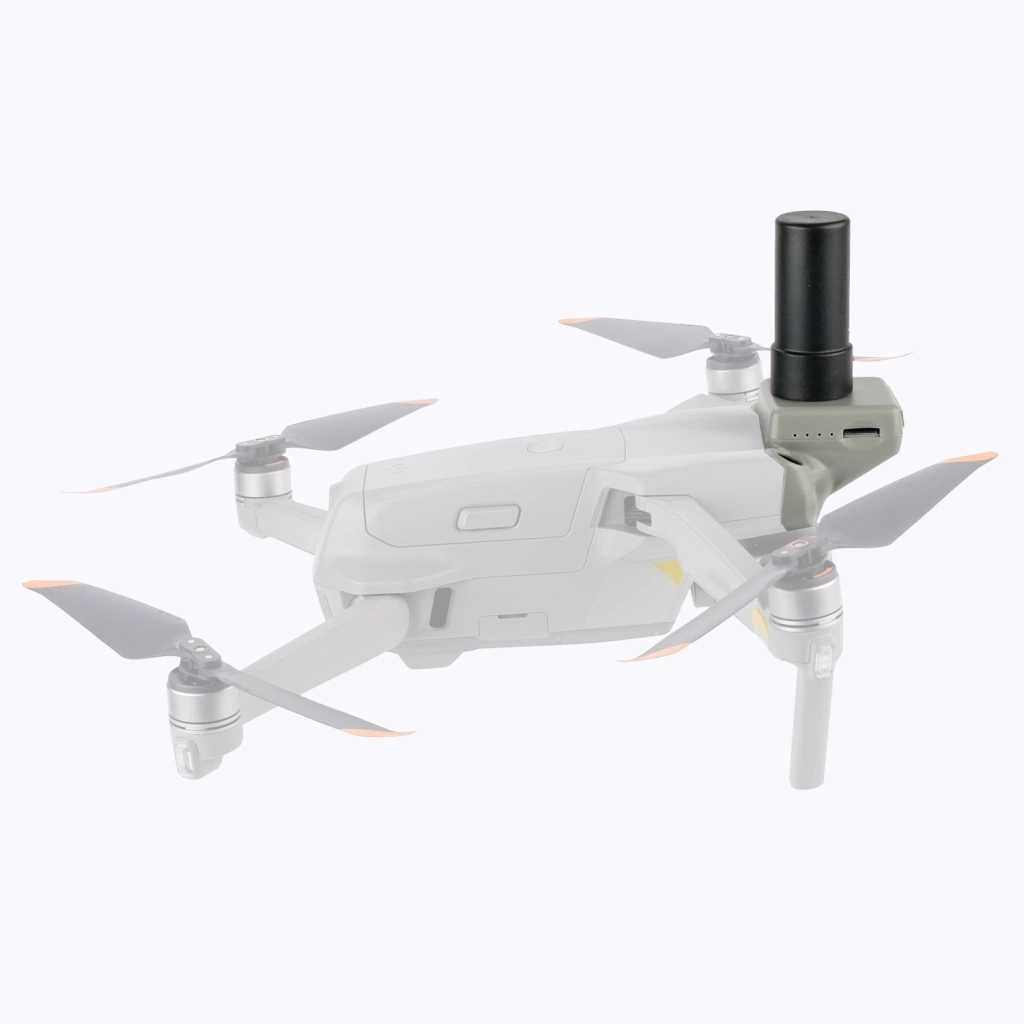

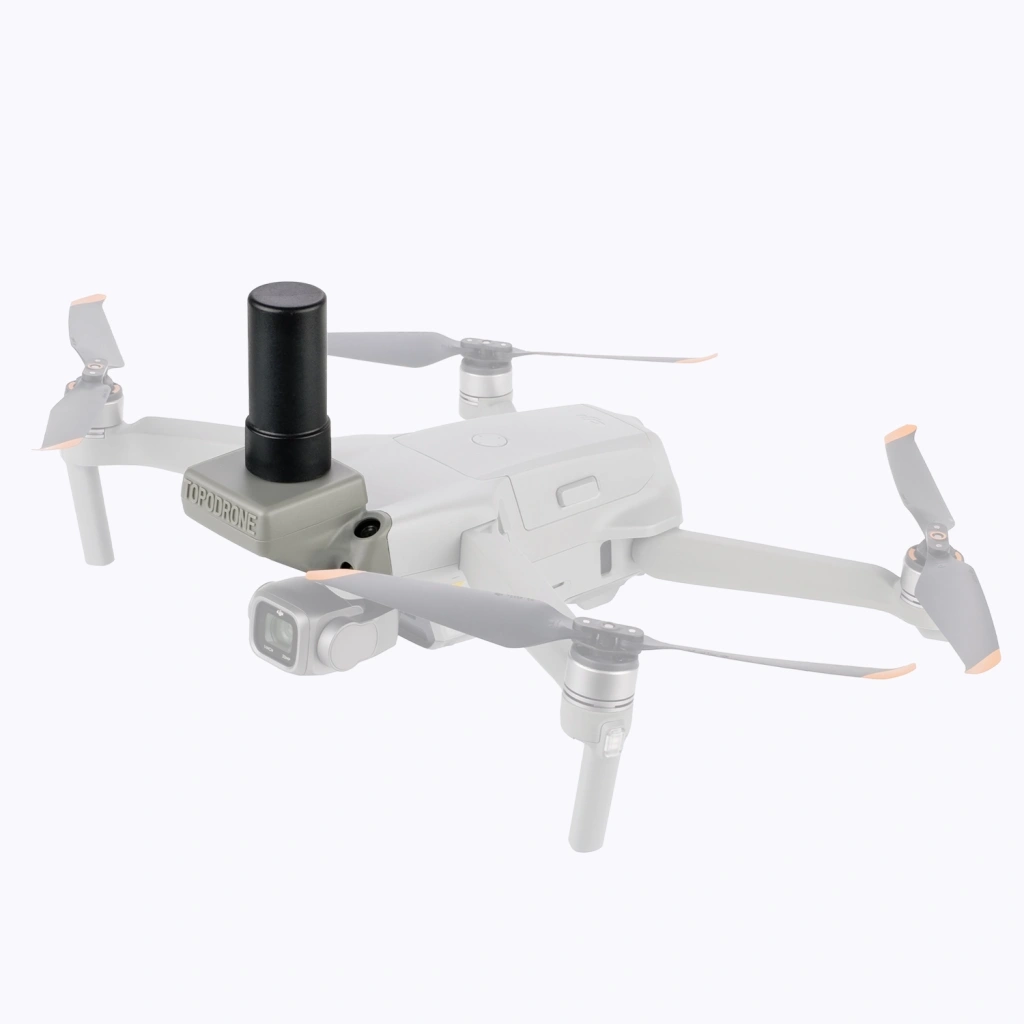

TOPODRONE PPK for DJI Air 2S
Features:
The Topodrone DJI Air 2S PPK is quite compact, being only slightly larger than the Topodrone Mini 2 PPK. It is the optimal solution for surveyors who move equipment on foot, for example in hard-to-reach places.
Despite its compact size, the drone is based on a 1-inch sensor with 20 megapixel resolution and a constant F2.8 aperture. These features allow you to take high-quality photos comparable to the most advanced models.
Thanks to a dual set of frontal sensors, the Topodrone DJI Air2S PPK is able to detect obstacles even at high angles, such as in strong winds or at high drone speed. The Topodrone upgrade does not block visibility of these sensors.
The maximum actual radio control range is 4000 meters**, allowing you to receive telemetry and video stream from the Topodrone DJI Air2S PPK even at long distances from the takeoff point.
Maximum ascent and descent speeds of 6 m/s increase the efficiency of aerial surveying in mountainous terrain.
Thanks to the special shape of the propellers and light weight, the Topodrone DJI Air2S PPK is virtually silent at a distance of 50 meters.
You get all these advantages with Topodrone PPK technology, which allows you to achieve 3–5 cm accuracy without using reference points.
Description:
Topodrone DJI Air 2S PPK is a compact drone for professional, highly accurate aerial surveying. With small dimensions and weight, the drone impresses with its features, including a 1-inch 20 MP camera sensor, up to 23 minutes of flight time in real weather conditions, and a dual system of visual positioning sensors working in the forward direction even at high speeds. Route flight is possible, including terrain avoidance*.
Topodrone PPK upgrade with a GNSS receiver is integrated into the DJI Air2S PPK drone to provide shutter event data and record high-quality raw GNSS data for future post-processing in Topodrone Post Processing software to obtain high-accuracy coordinates of photo centers.
* Mission planning with AMSL or terrain following is available when using DroneLink or UgCS Expert with route export in .KML format to DroneLink or Litchi software.
** Measured in open area in direct line of sight, away from radio interference sources at 2.4 GHz.
