TOPODRONE P24 with DJI X-Port

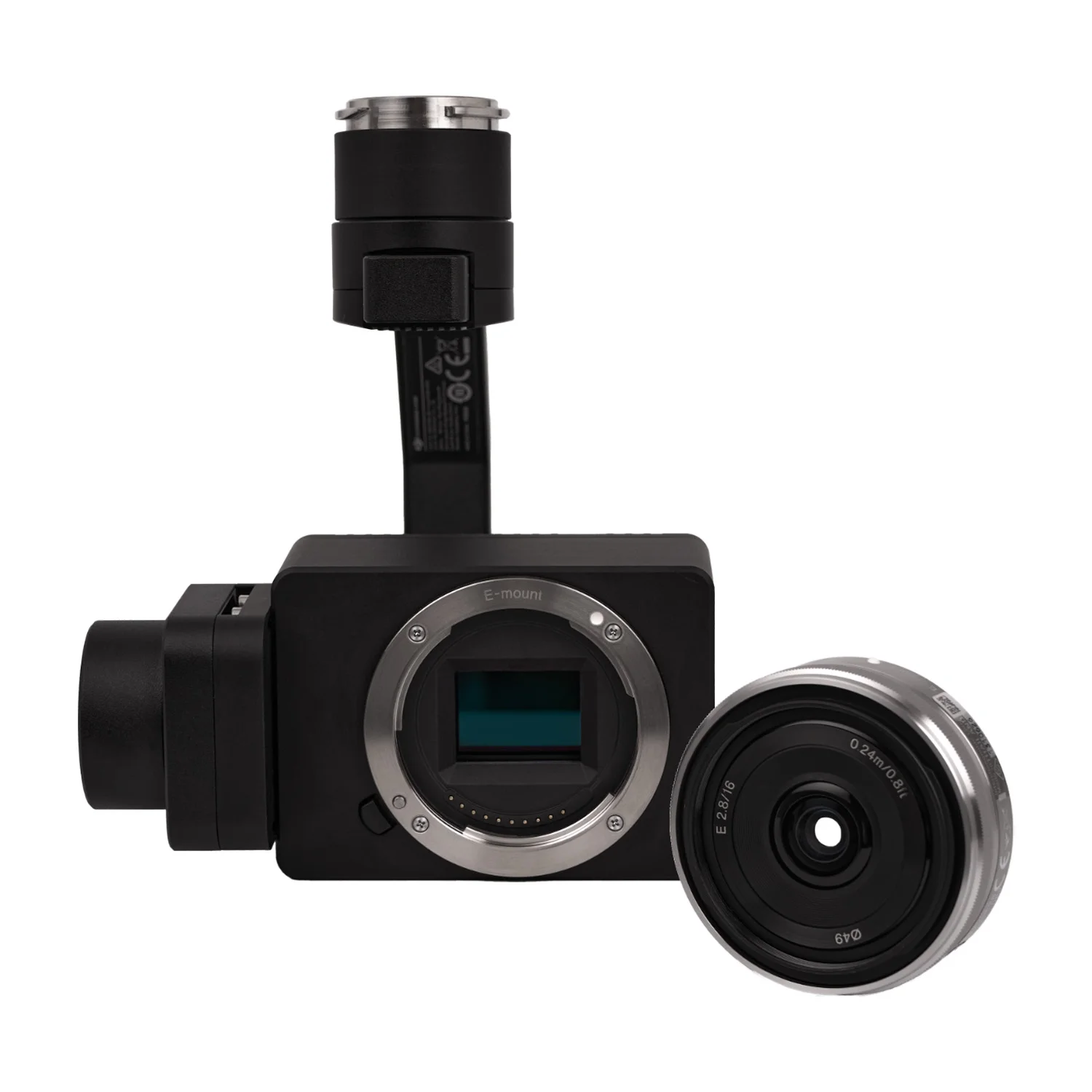

TOPODRONE P24 is a professional photogrammetric camera designed for high-accuracy aerial surveying and mapping applications. It is equipped with a 24-megapixel APS-C sensor featuring a global mechanical shutter and interchangeable Sony E-mount lenses, ensuring excellent detail and precision for the production of orthophotos, 3D models, and digital terrain maps.

The camera can be supplied with one of the following lenses: Sony FE 24mm f/2.8 G or Voigtländer Color-Skopar 21mm f/3.5.

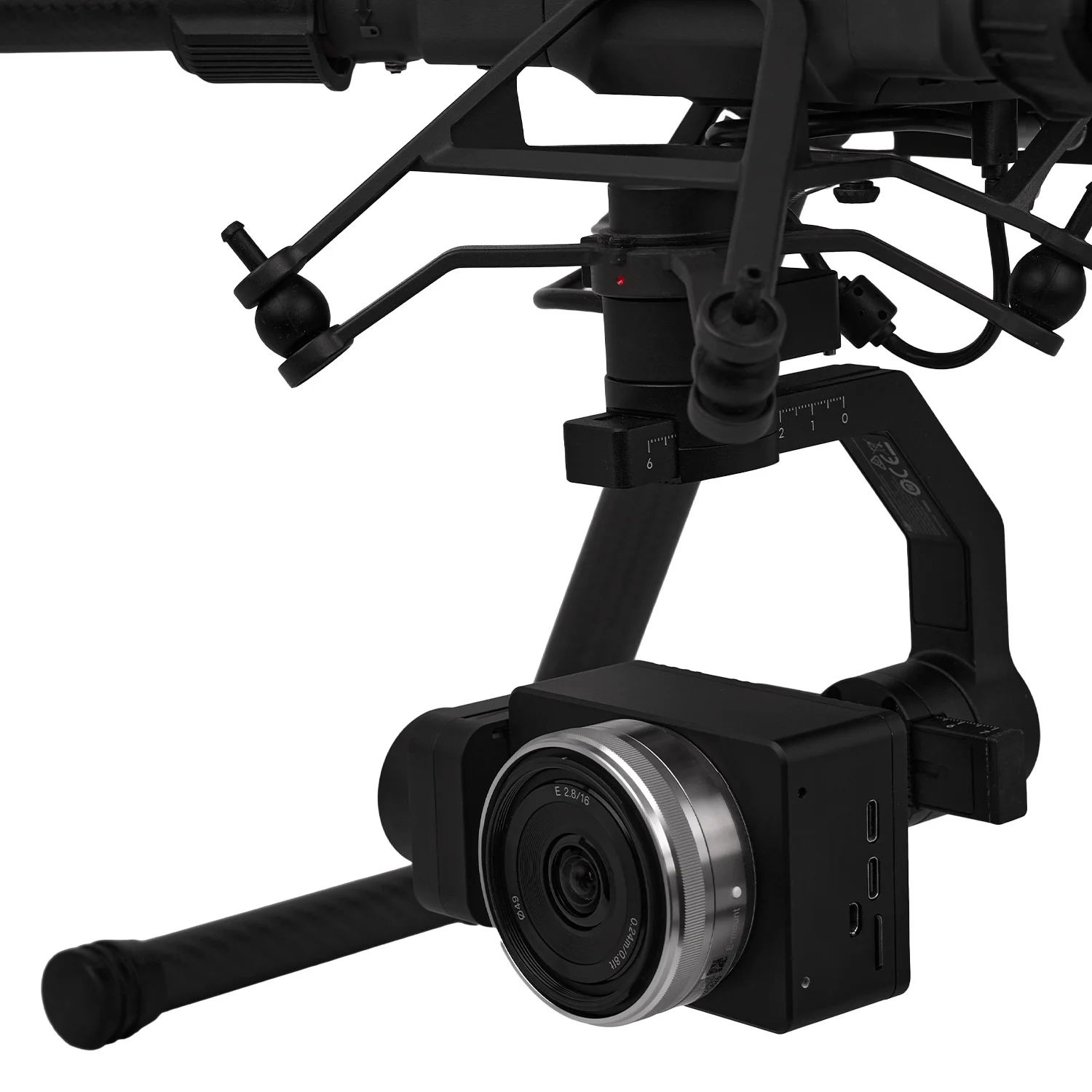

The DJI X-Port three-axis gimbal with PSDK 2.0 support provides precise stabilisation and seamless integration with DJI unmanned platforms. Operation and configuration are carried out via DJI Pilot.

Key Advantages

• High-quality imaging
  The APS-C sensor (23.5 × 15.6 mm) with a resolution of 6000 × 4000 pixels delivers sharp, highly detailed imagery.
• Global mechanical shutter
  Eliminates motion blur during capture from moving platforms and ensures accurate synchronisation with GNSS equipment.
• Compatibility with gimbals and LiDAR systems
  The camera can be mounted on a 3-axis stabilised gimbal or integrated with TOPODRONE LiDAR sensors.
• GNSS system integration
  Support for the TOPODRONE UAV PPK Upgrade Kit enables centimetre-level geotagging of aerial imagery.
• Versatility

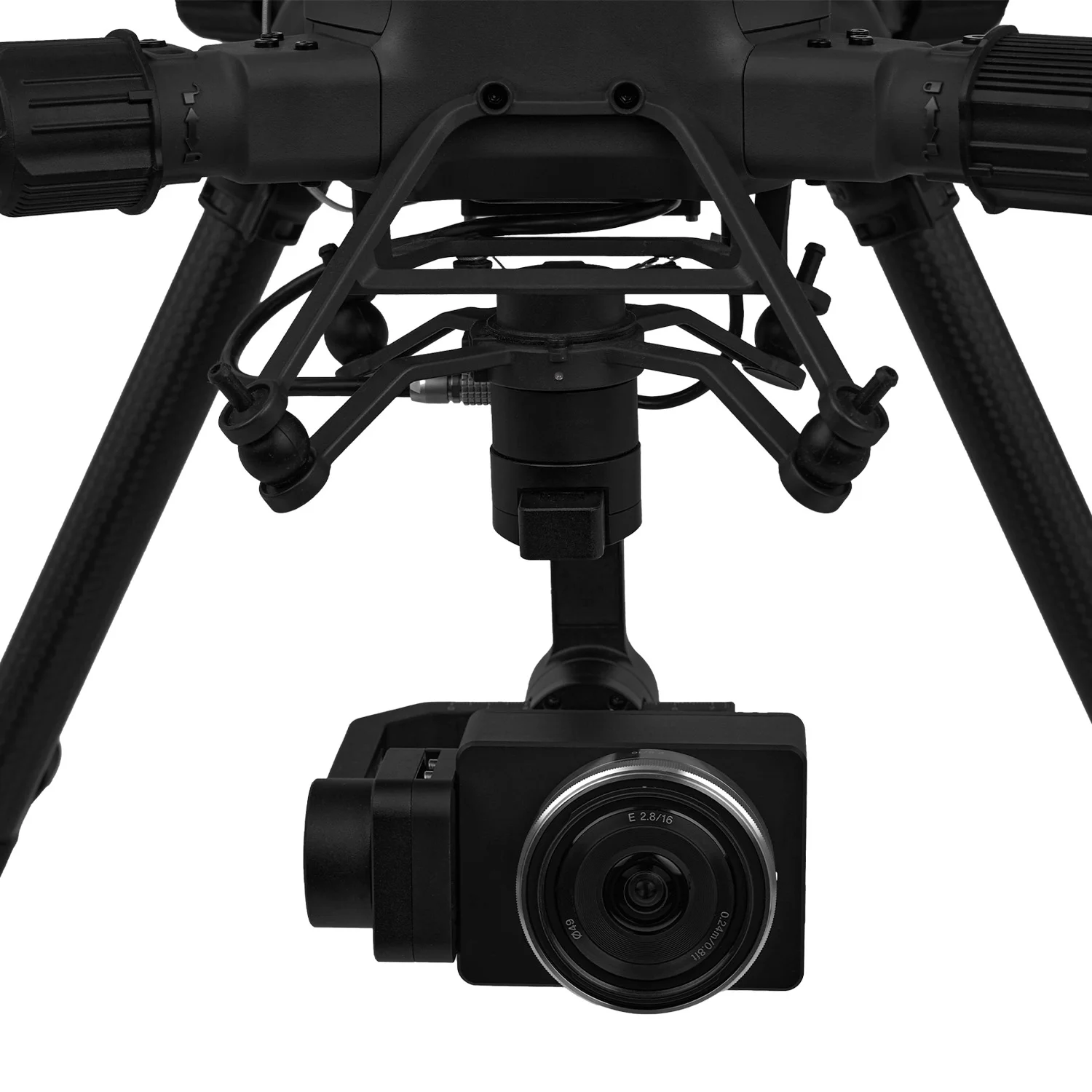

  Suitable for installation on a wide range of unmanned aerial platforms. Full camera control and live video transmission are available on DJI Matrice 200/300/350/400 series UAVs.

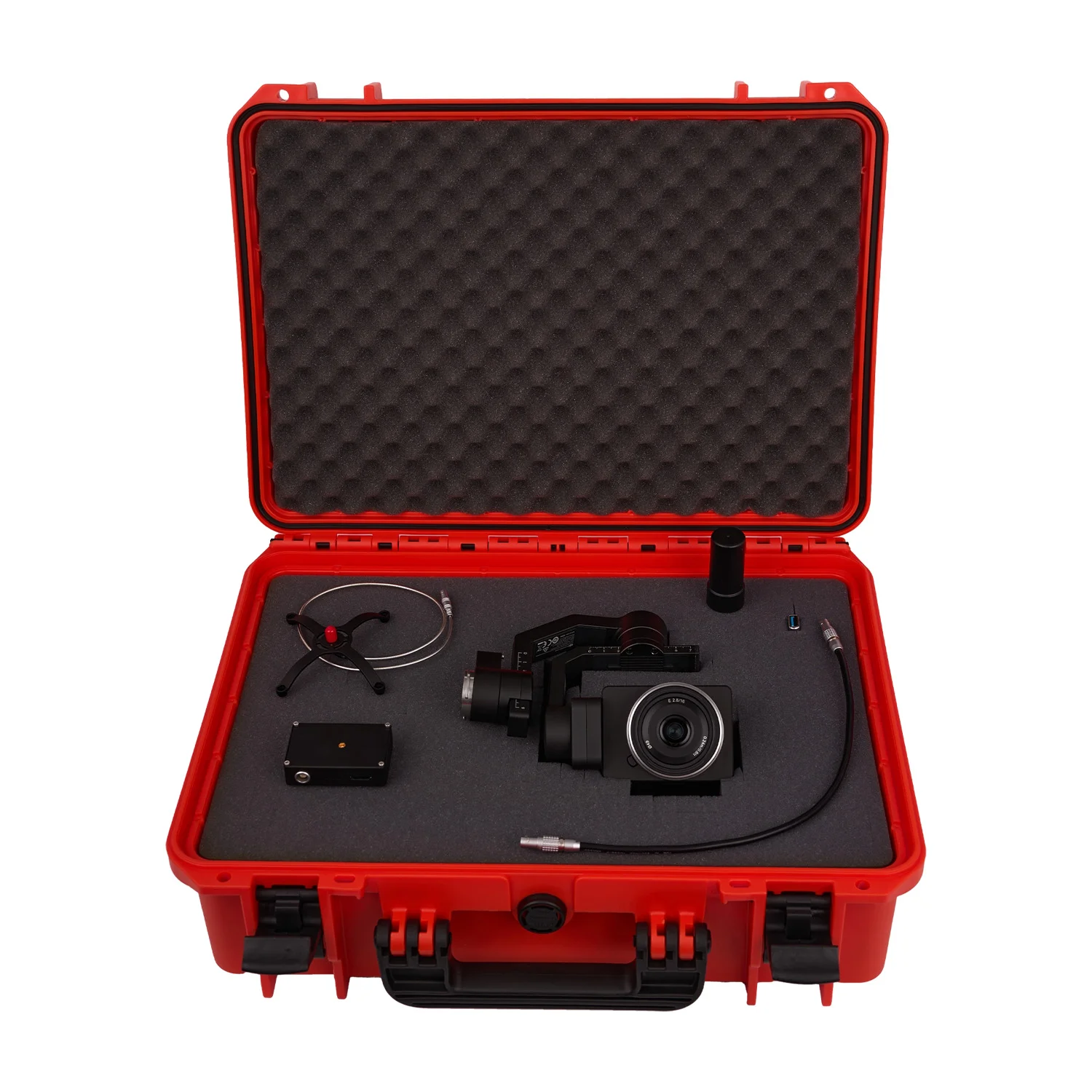

Package Contents

• TOPODRONE P24 camera;
• Lens (Sony FE 24mm f/2.8 G or Voigtländer Color-Skopar 21mm f/3.5);
• 64 GB microSD memory card;
• LEMO 4-pin / 6-pin power and shutter cable;
• 3-axis gimbal;

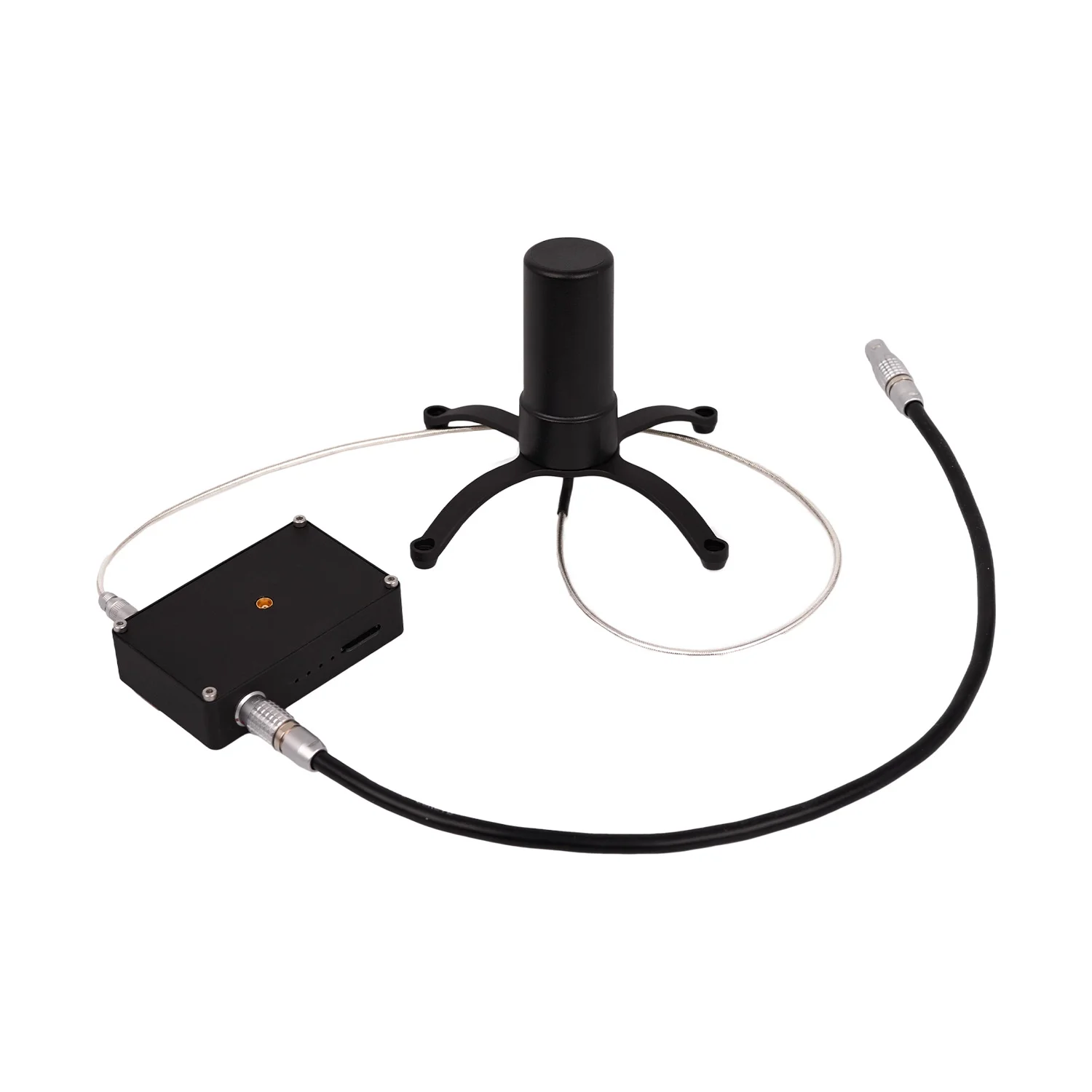

• TOPODRONE UAV PPK Upgrade Kit with 16 GB microSD card;
• External GNSS antenna and mounting plate;
• OTG adapter USB Type-C – USB Type-A;
• L-shaped mounting plate and Skyport-SHLD adapter;
• Protective transport case.

The composition of the package may vary depending on the delivery configuration — please contact our specialists for detailed information.

Warranty: 12 months.
