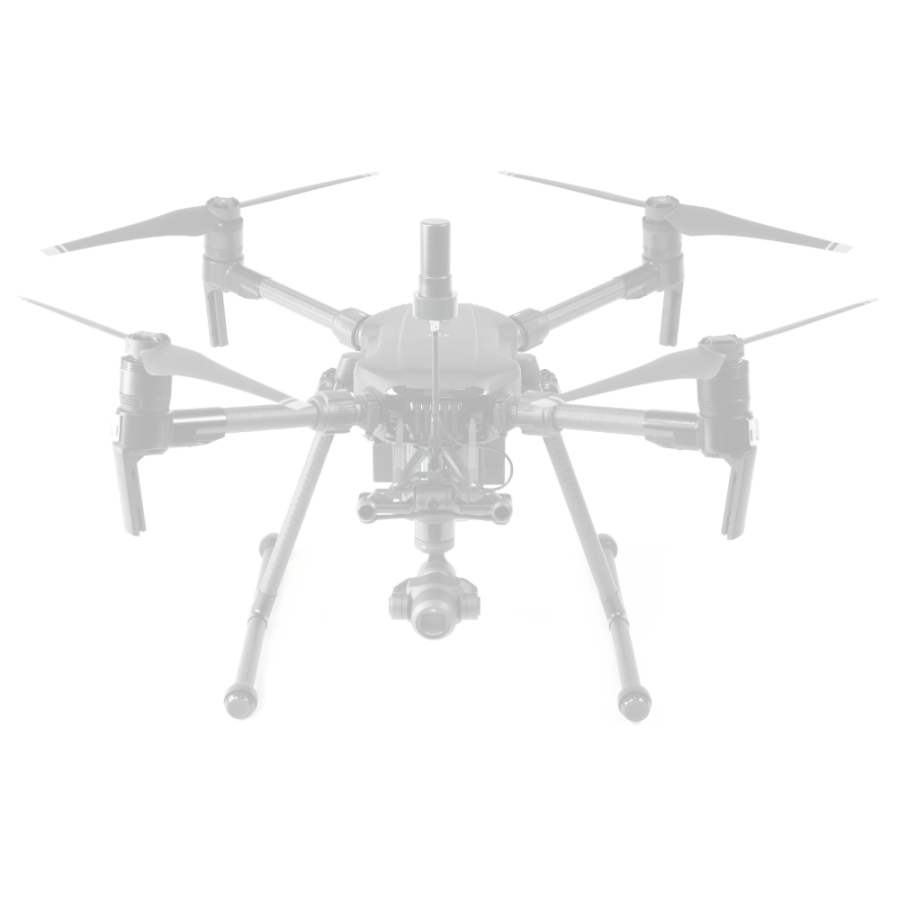

TOPODRONE DJI X4S PPK + DJI Matrice 200

TOPODRONE DJI Matrice 200/210 V2 L1/L2 RTK/PPK + X4S 20Mp 3-AXIS

Industrial professional survey drone for operation in aggressive environments: strong wind up to 20 m/s and cold weather up to -40 degrees.

L1/L2 GPS/GLONASS/BeiDou/Galileo GNSS receiver and DJI X4S 20Mp camera on 3-axis gimbal are installed on the drone. PPK processing is enabled.

You can achieve stable precision results flying with high speed up to 15 m/s and within 20-30 km working range from the base station.

It allows to record photos locations with centimeter level accuracy. Now you can process data in Metashape or Pix4Dmapper, etc. software and turn your images into highly precise, georeferenced 2D maps and 3D models without ground control points (GCP). You no longer have to lay down GCPs or just minimize their number, saving countless hours and labor costs.

You can use any GNSS receiver as a base station or just download rinex file from the closest CORS or NTRIP network.

TOPOSETTER 2.0 Pro software for GNSS data post processing and images geotagging with capabilities to process multiple flight, convert GNSS data from different formats, PPP processing and more necessary functions for advanced users is uncluded to the package.

Inside the box

• Survey grade drone TOPODRONE DJI Matrice 200/210 V2 L1/L2 RTK/PPK + X4S 20Mp 3-AXIS with integrated L1/L2 GNSS receiver and helix antenna
• TOPOSETTER 2.0 Pro software for GNSS data post processing and images geotagging with custom coordinate system support
• Video instructions and data processing tutorials for TOPOSETTER 2.0 Pro, Pix4DMapper and Agisoft Metashape

Advantages of TOPODRONE solutions

• Survey flight can be prepared in any mission planning software (GS Pro, MapPilot, UgCS etc) and performed in automatic mode. You don’t need to have professional pilot skills.
• High precision orthomosaics or 3D model can be created without using GCPs. You no longer have to lay down GCPs or just minimize their number, saving countless hours and labor costs.
• Survey grade L1/L2 GPS/GLONASS/BeiDou/Galileo GNSS receiver is integrated with professional calibrated camera without any changes in side of the drone saving the manufacturer warranty.
• Professional Helix type antenna provides high quality signal with low level of noise.
• Position of the antenna under the center of camera and correction of the antenna tilt with using of IMU data insure better accuracy during photogrammetry processing
• The lightweight upgrade kit and removable antenna mount allows carrying your drone in a standard DJI case. It has a small weight and dimensions, is produced in large amounts on the factory in accordance with high quality Swiss standards.
• You can use Metashape or Pix4Dmapper, etc. software are turn your images into highly precise, georeferenced 2D maps and 3D models without ground control points (GCP).
