Article:
CH-SHARE-102SV3
Buy set

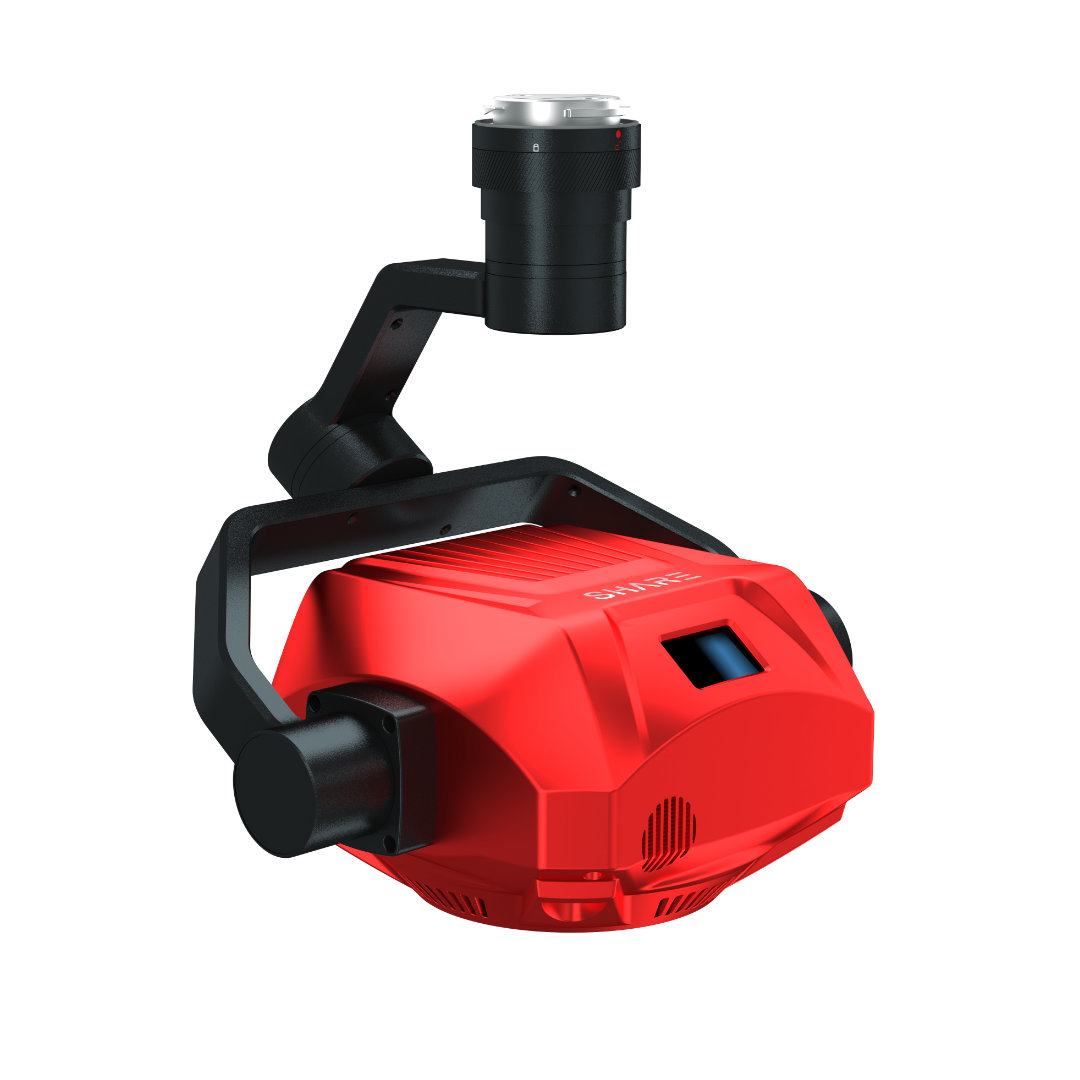

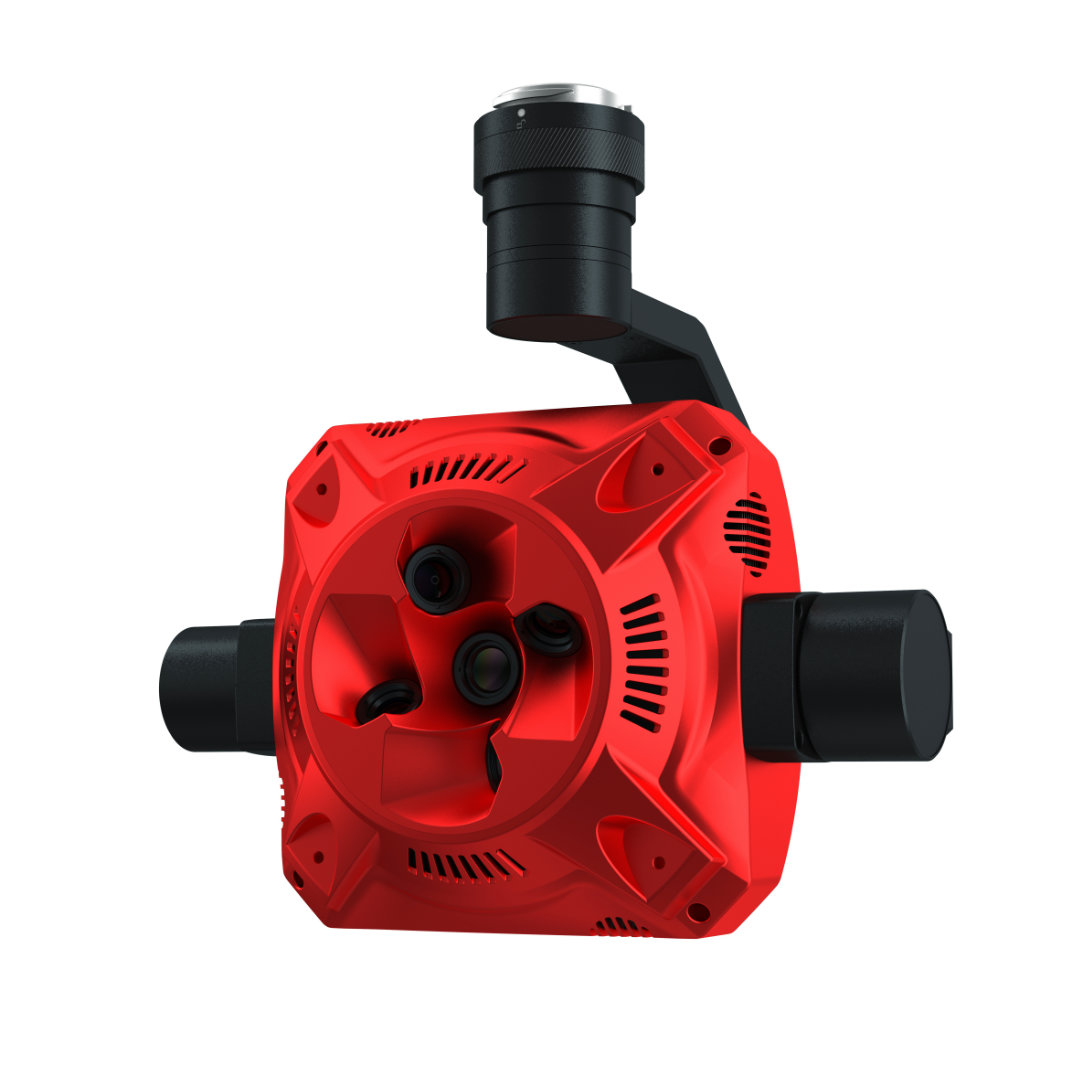

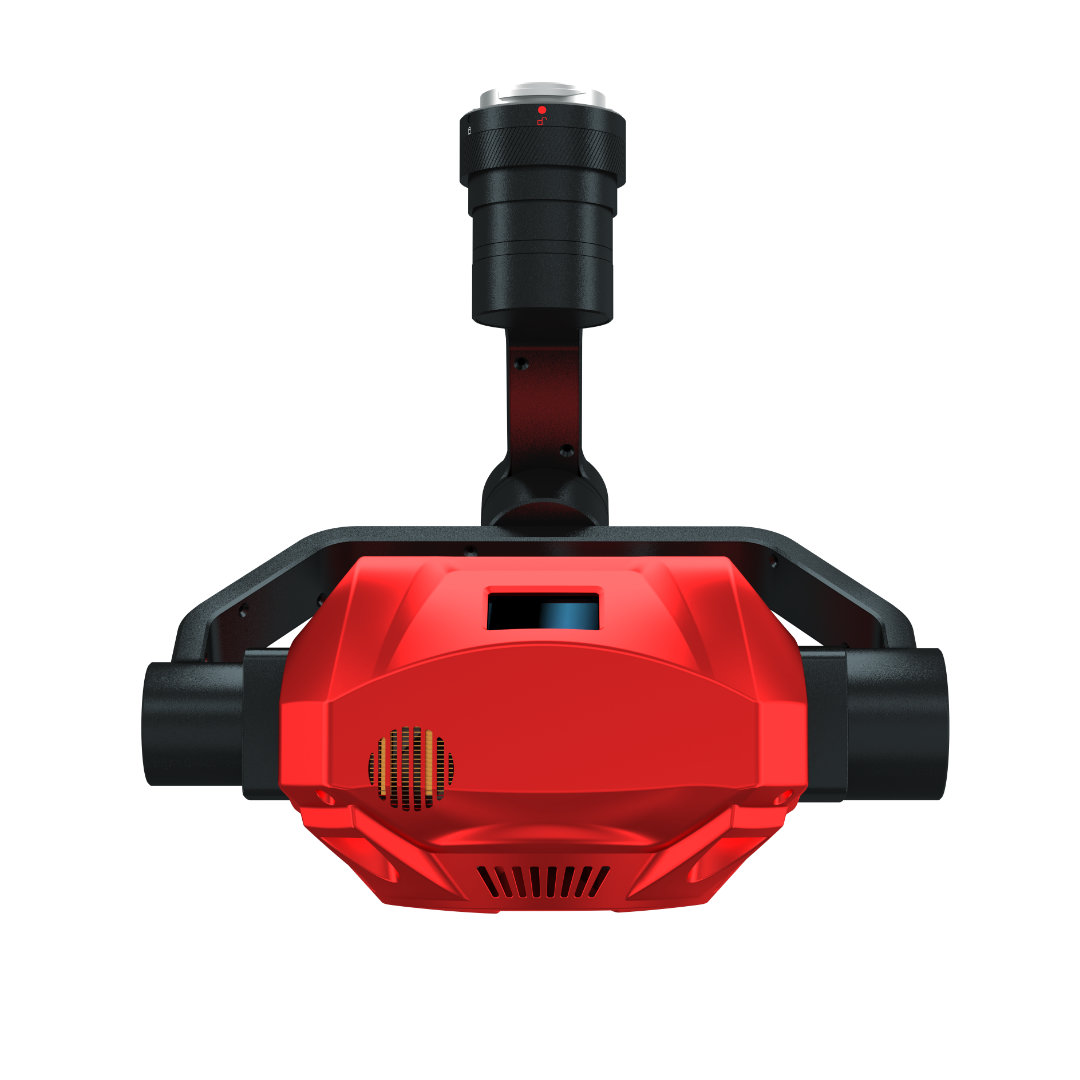

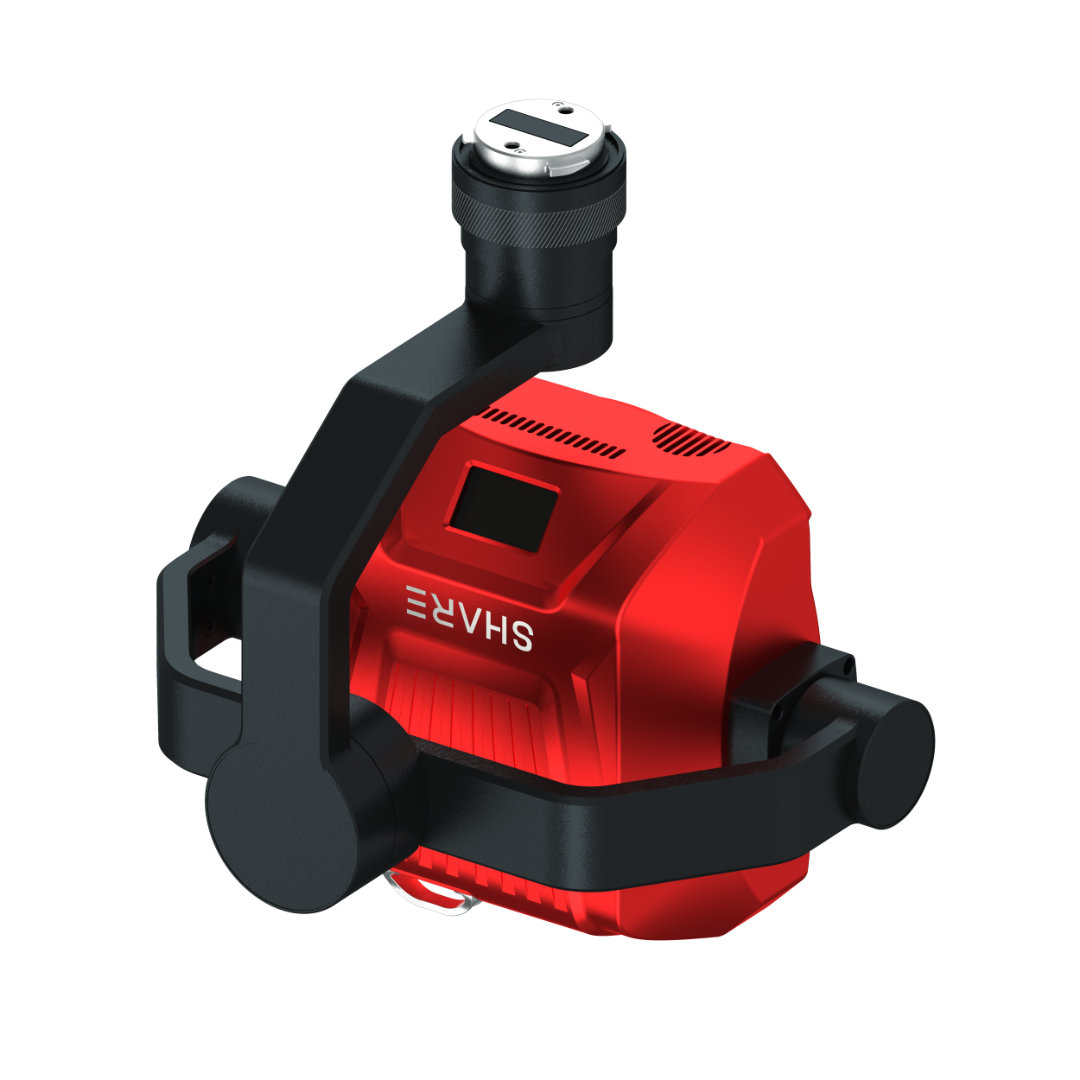

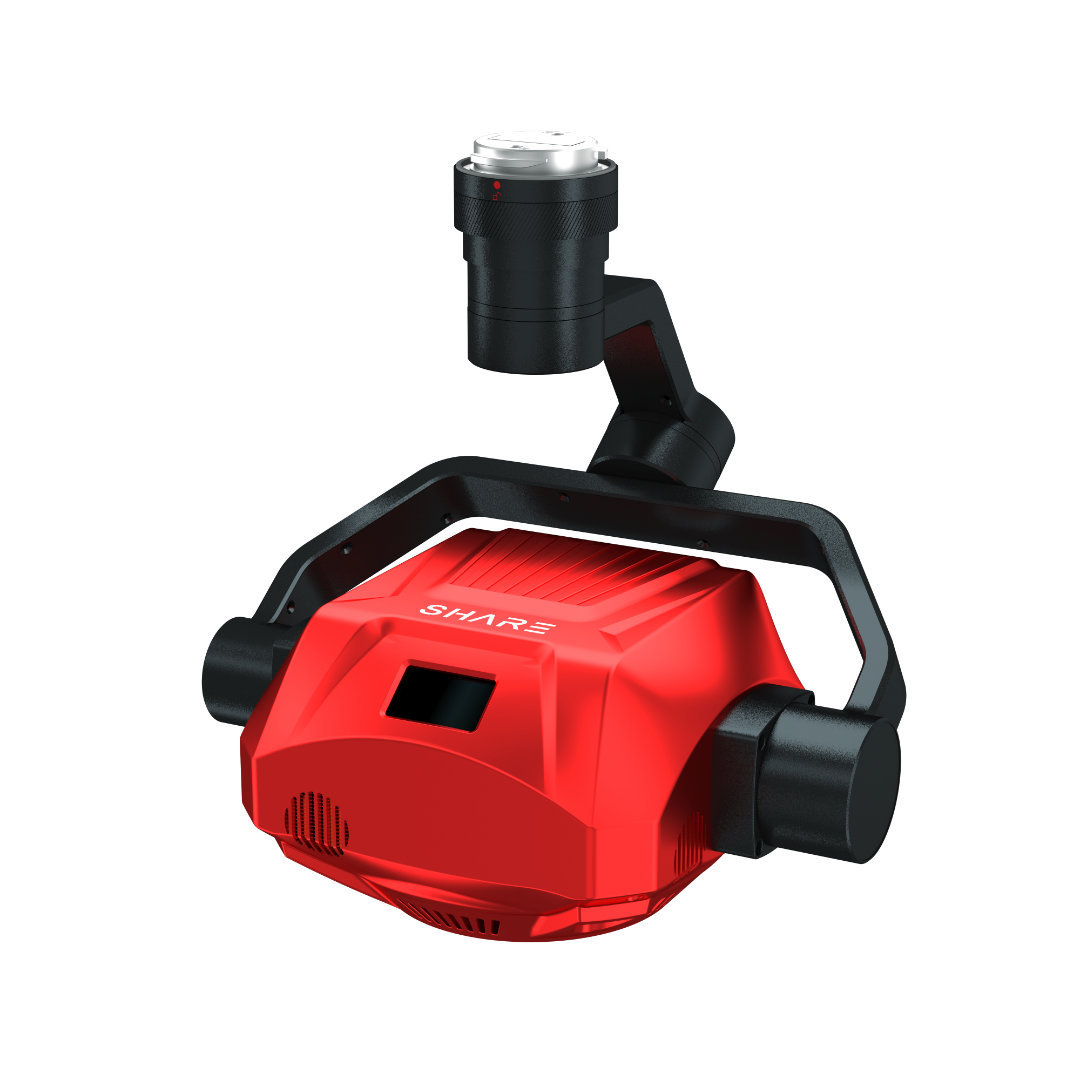

SHARE PSDK 102S V3 Oblique Mapping Camera
$0 * 1 pcs.
|
TOPODRONE SHARE PPK Upgrade Kit |
$1 990 * 1 pcs.
|
|
|
TOPODRONE PPK Post Processing Perpetual License |
$300 * 1 pcs.
|
|
|
UgCS Pro Perpetual License |
$790 * 1 pcs.
|
|
|
3Dsurvey Perpetual License |
$3 000 * 1 pcs.
|
|
|
DJI Matrice 350 RTK |
$12 460 * 1 pcs.
|
|
|
DJI Matrice 350 Series BS65 Intelligent Battery Station |
$1 320 * 1 pcs.
|
|
|
DJI Matrice 350 Series TB65 Intelligent Flight Battery |
$1 005 * 4 pcs.
|
| Bundle price | $23 880 |
$23 880
- Size:120*120*82.7mm; 193*172.4*180.6mm (with gimbal)
- Weight:580g; 1041g (with gimbal)
- IP Grade:IP5X
- Support UAV Models:DJI M300/M350 RTK、other fixed-wing and multi-rotor UAVs
- Working Temperature:-20℃-65℃
- Absolute Precision:Plane precision: 3cm, height precision: 5cm GSD=3cm，flight speed 15m/s, front overlap 80%, side overlap 70%;
- Camera Power Supply:External: DC 12-50V
- Camera Interface:DJI Skyport Interface & Common Interface
- Effective Pixels:Single lens ≥ 25 million pixels, ＞ 125 million pixels in total
- Sensor:Sensor size: 23.1x15.4mm (APS-C)
- Pixel size: 3.76um
- Image Size:6144×4096 px
- Data Storage:Photo/POS file with GPS information and camera parameter information
- Focal Lens:Oblique: 35mm, normal incidence: 25mm
- Oblique Angle:45 Degree
- ISO Interval:50-200,50-400,50-640,50-800,50-1000,50-1600
- Shutter Speed:1/500，1/640，1/800，1/1000，1/1250
- Aperture Size: F5.6
- Storage Capacity:The data storage module is pluggable and removable with 1280GB capacity.
- Shooting Interval:≥ 0.5S
- Parameter Adjustment:Support modifying ISO, white balance, color mode, shutter speed and other parameters; Support modifying the parameters by DJI Pilot
- Data Copying:Copying data by data reading module, the copying speed can reach 600Mb/s
- Operating Mode:Flight control trigger/isometric trigger/isochronous trigger
- Stable System:3-axis (Pitch, roll, yaw)
- Installation Method:DJI quickly disassembled and installed Skyport interface ; Universal adapter for connecting third-party UAV port
- Gimbal Rotating Range:Pitch：-120°-+45°；Roll：±45°；Yaw：±160°
Reviews
Review
News
On request
In stock
Ask for a price
Our managers will contact you and clarify the terms of the order
Specifications
Country of origin
—
China
SHAREUAV is a manufacturer of 3D modelling and mapping cameras. The range includes both classic models for photogrammetry and multi-lens oblique cameras for aerial photography.
