New
Article:
CH-TD-ULTRAHELI
General
Country of origin
Switzerland
Operating temperature range
-30°C ... 45°C

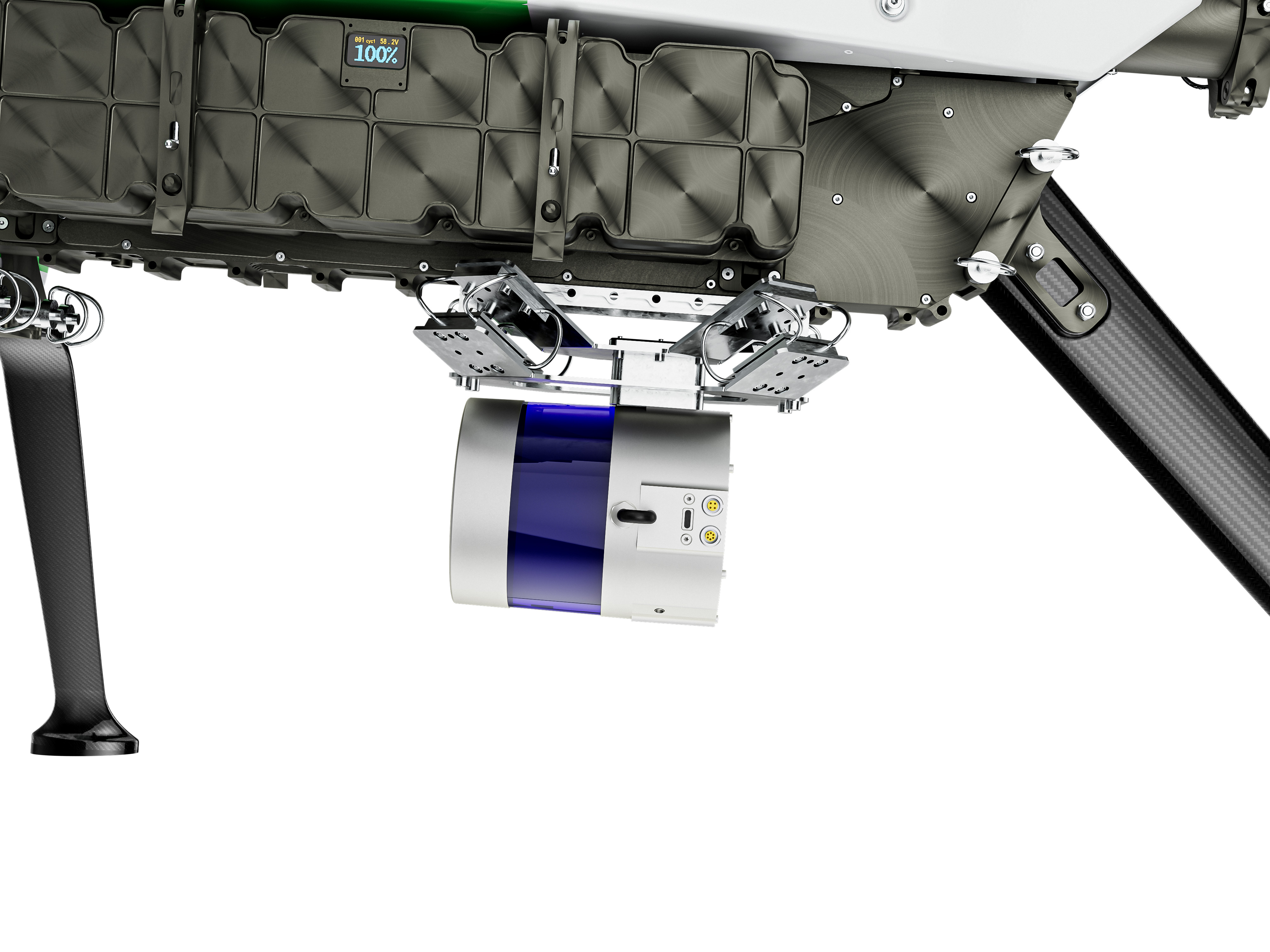

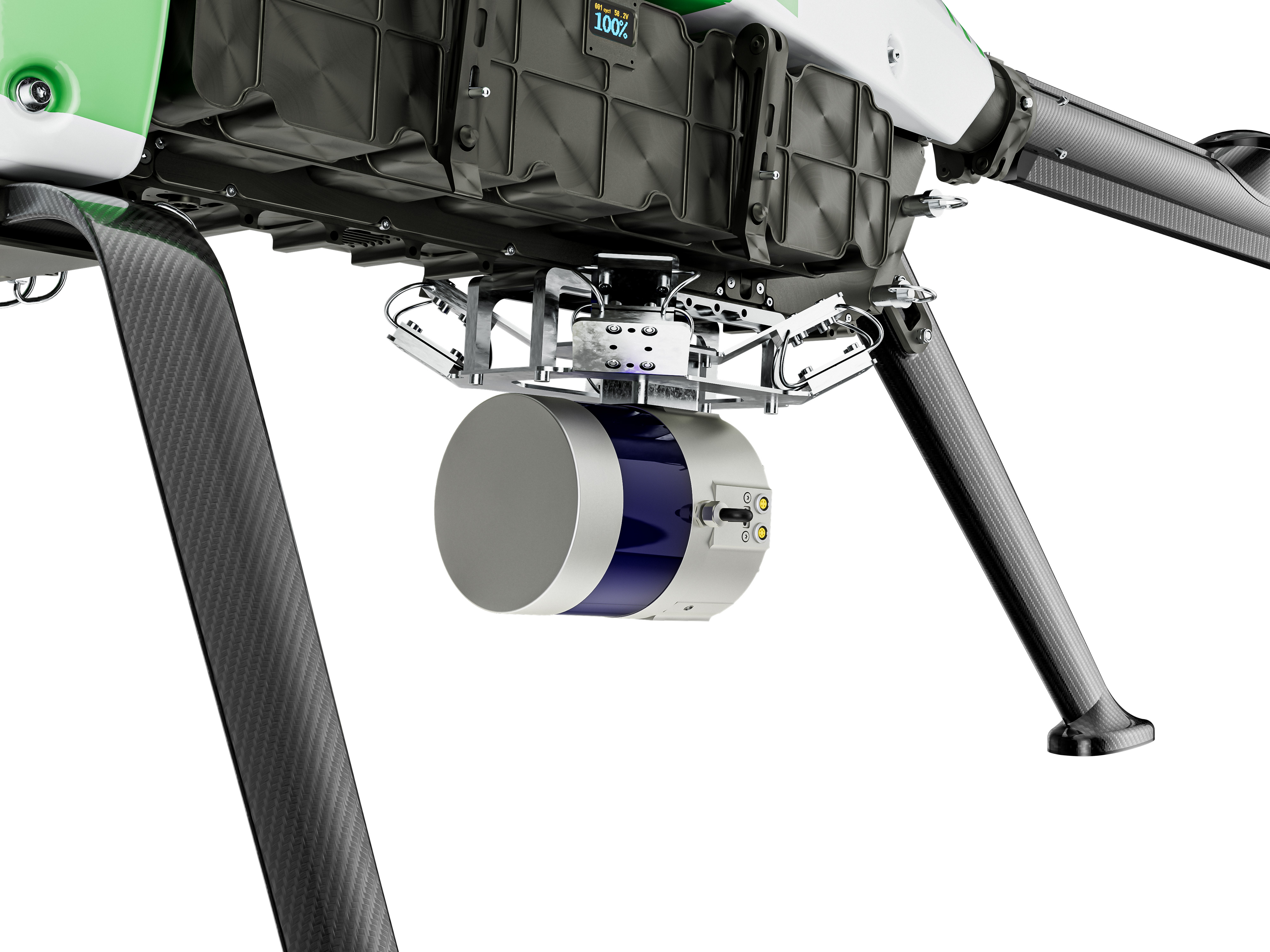

LiDAR System
Sensor type
Velodyne Ultra Puck
Recording data to a flash card
Yes
Built-in GNSS module
Yes
Laser Sensor
Working Range
120 m
Working Flight Altitude
200 m
Number of scanning beams
32
Horizontal FOV
360°
Vertical FOV
30°
Scanning frequency (single reflection)
600 000
Scanning frequency (double reflection)
1 200 000
Refresh Rate
5 Hz to 20 Hz
Laser Wavelength
~ 905 nm
Water Resistance
IP67
IMU
Operating frequency
200 Hz
Heading accuracy (°, 1σ)
0,08
Pitch accuracy (°, 1σ)
0,03
Roll accuracy (°, 1σ)
0,03
GNSS receiver
PPK mode
Yes
Number of channels
184
Frequency
10 Hz
Working without GCPs
Yes

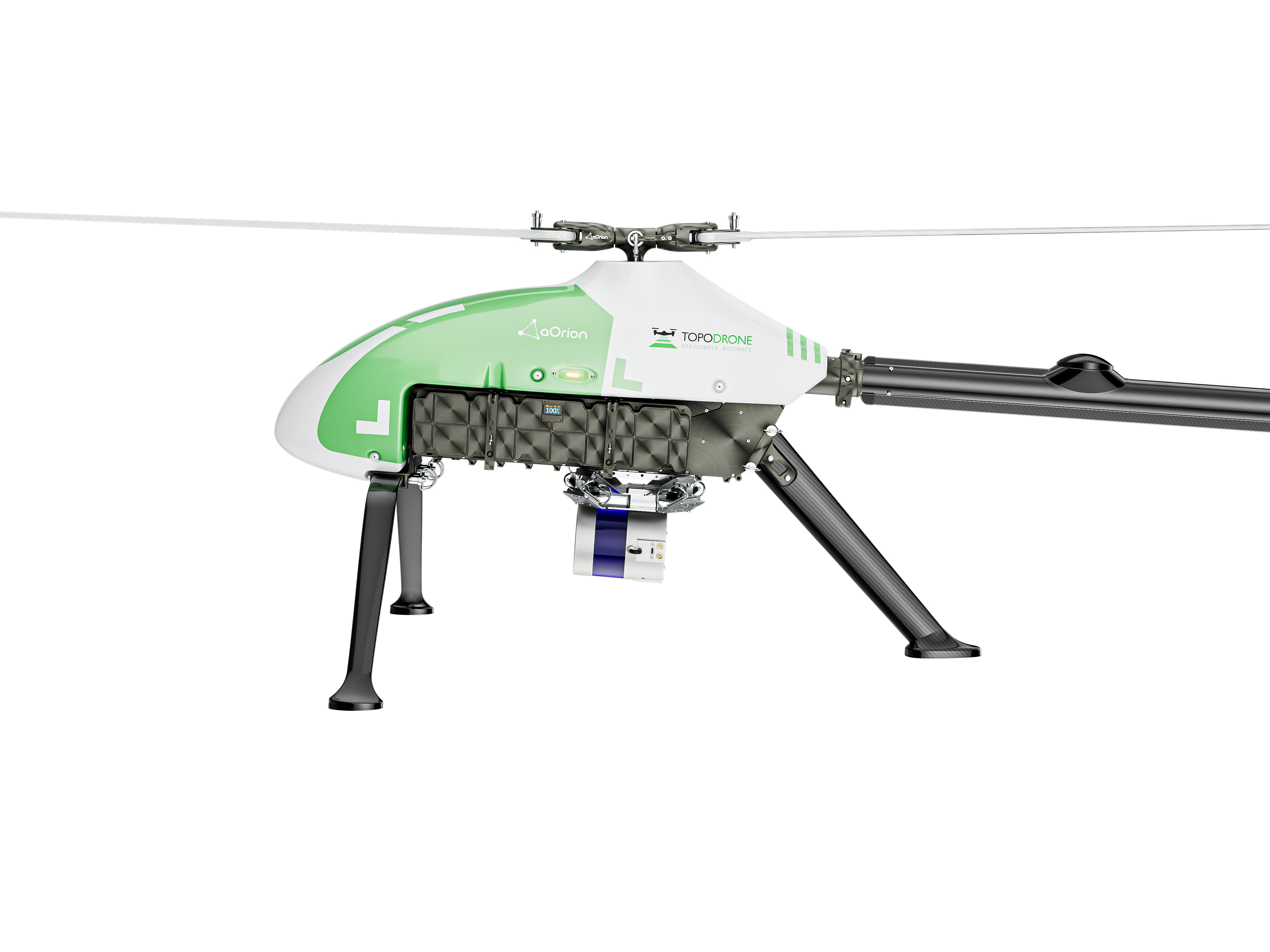

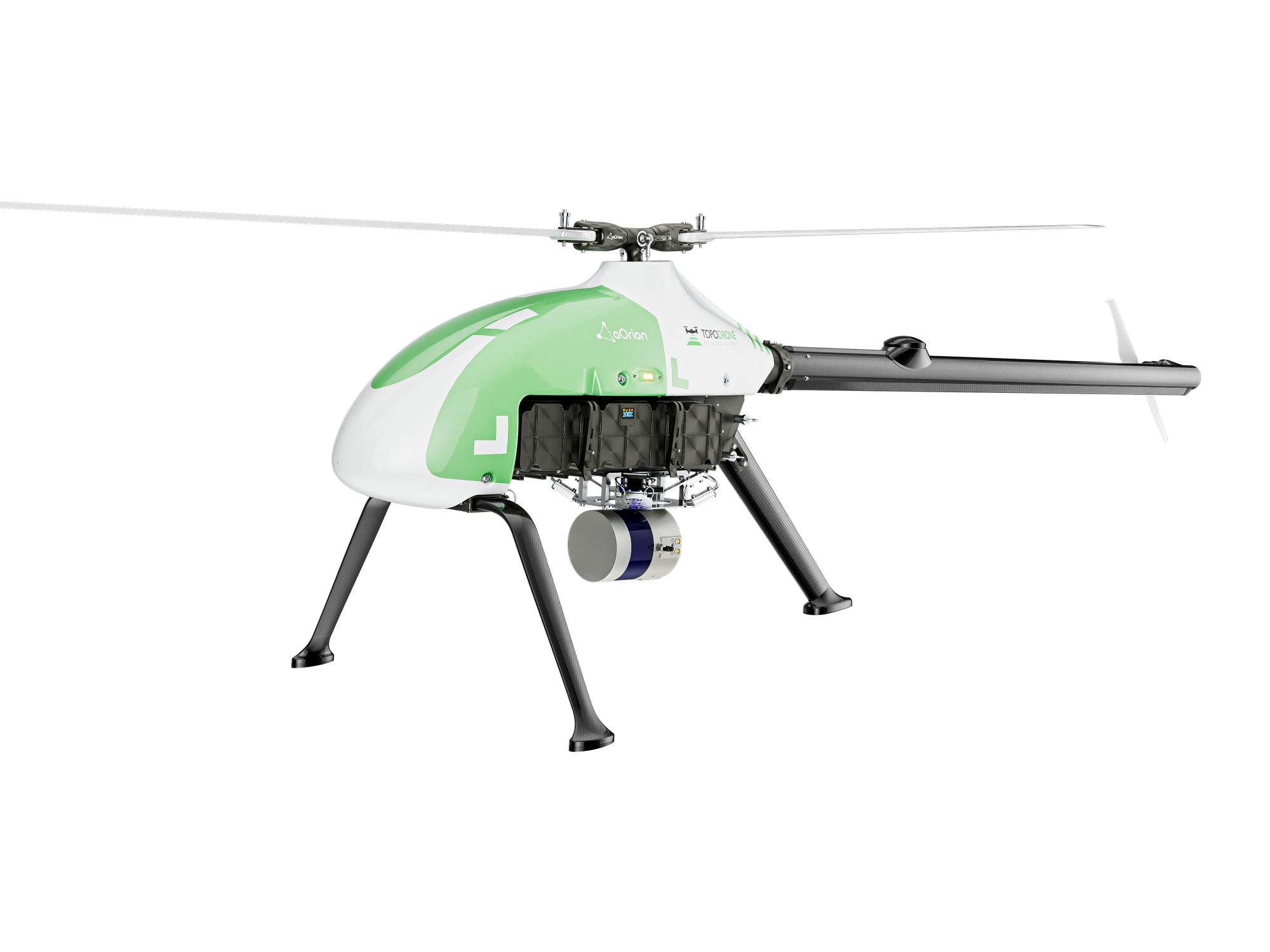

UAV
Maximum real flight time
1,5 h
Take-off weight
21 kg
Maximum wind speed
16 m/s
Takeoff
Vertical
Landing
Vertical
Reviews
Review
On request
Discontinued
Specifications
Country of origin
—
Switzerland
Operating temperature range
—
-30°C ... 45°C
Maximum real flight time
—
1,5 h
Take-off weight
—
21 kg
Maximum wind speed
—
16 m/s
Takeoff
—
Vertical
All characteristics
