CH-TD-SLAM100
Buy set
TOPODRONE LiDAR SLAM 100
$20 000 * 1 pcs.
|
Backpack for TOPODRONE LiDAR SLAM 100 |
$3 500 * 1 pcs.
|
|
|

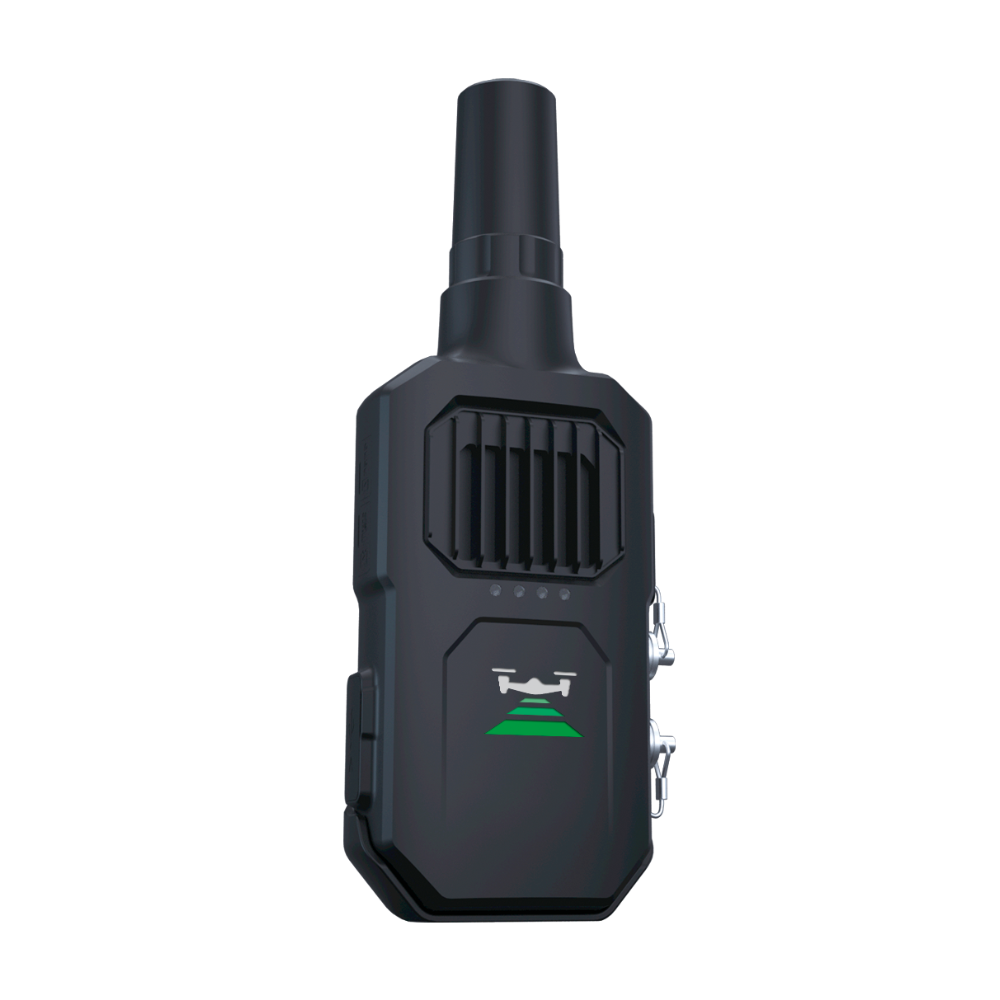

RTK module for TOPODRONE LiDAR SLAM 100 |
$2 500 * 1 pcs.
|
| Bundle price | $26 000 |
$26 000
Description

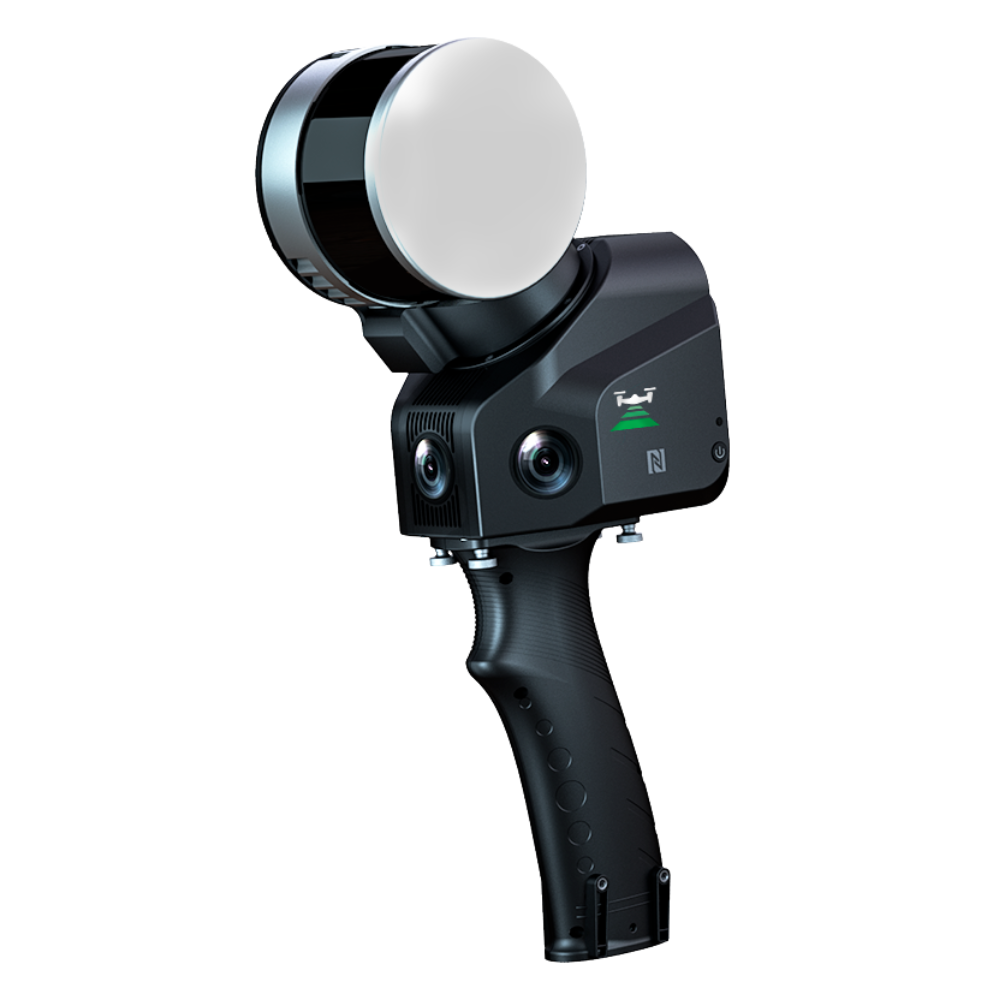

Mobile laser scanner with SLAM algorithms and ability to work without GNSS based on Hesai XT16, working range of 100 m, up to 320,000 points per second, 3-5 cm XYZ accuracy, three built-in cameras for panoramic creation and point cloud coloring.Features
- SLAM algorithms for non-GNSS operation, including indoors and tunnels.
- Point cloud coloring with 3 built-in cameras.
- Backpack mount option for comfortable scanning.
- Optional RTK module for high precision geo-referencing.
- Data management and storage systems built into the scanner.
- Mobile application to build a real-time point cloud.
- LiDAR data post-processing software included.
In the box
1 * TOPODRONE SLAM 100 laser scanner4 * Battery

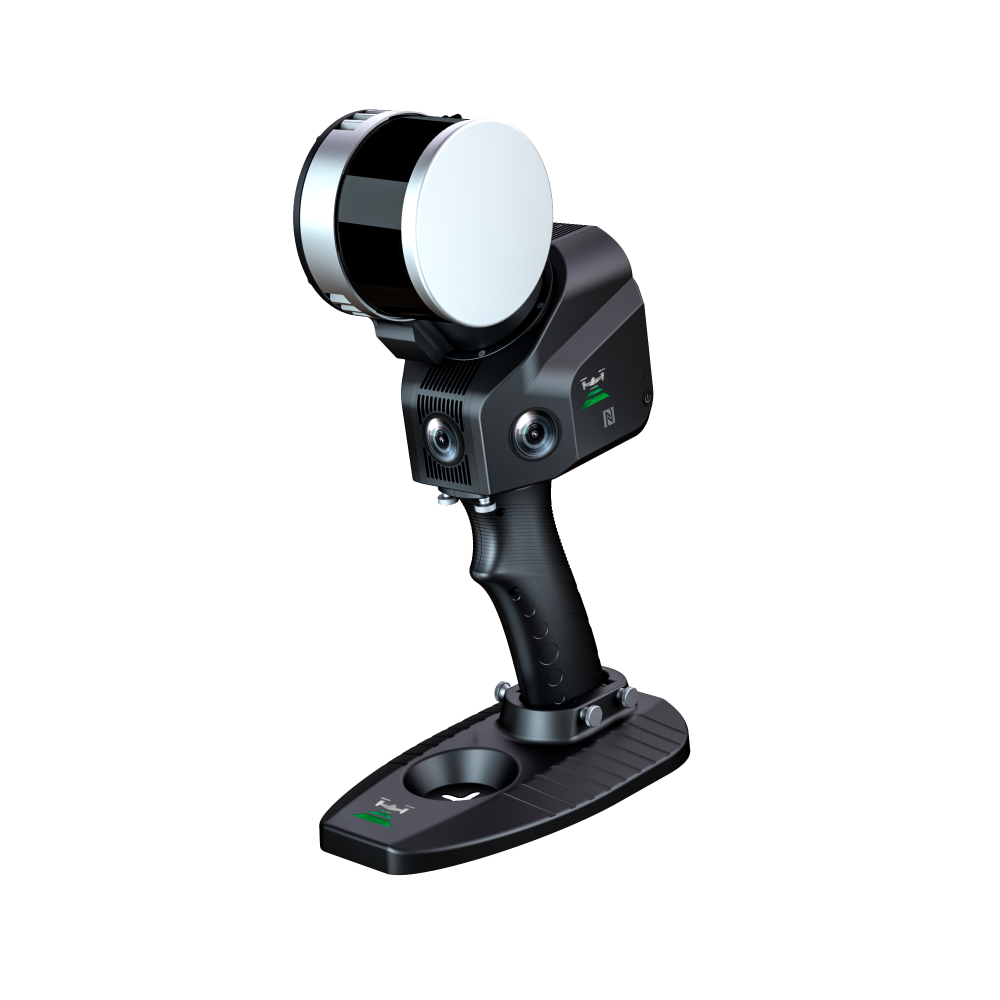

1 * Base platform
1 * Battery charger
1 * Power cable
1 * Carrying case
1 * Mobile app for control
1 * Desktop app for data post-processing
Samples
Documents
General
Country of origin
Switzerland
Warranty
12 month
Weight
1588 g
Dimensions
372x163x106
Operating temperature range
-10℃ to 45℃
LiDAR System
Sensor type
XT16
Laser Sensor
Working Range
120 m
Working Flight Altitude
100 m
Number of scanning beams
16

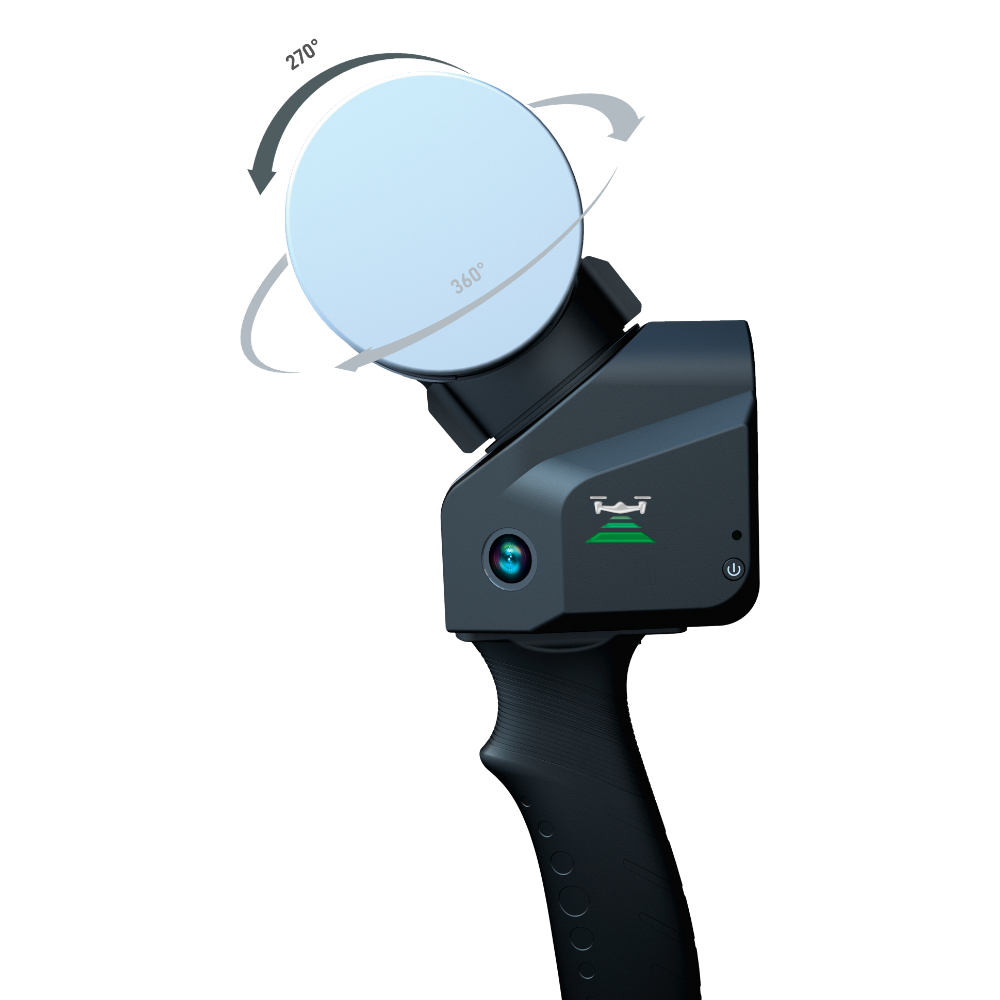

Horizontal FOV
360°
Vertical FOV
270°
Scanning frequency (single reflection)
320000
Scanning frequency (double reflection)
640000
Refresh Rate
5-20 Hz
Laser Wavelength
905 nm Class 1 eye safe
Water Resistance
IP6K7
Camera
Camera Resolution
5 Mp
