Article:

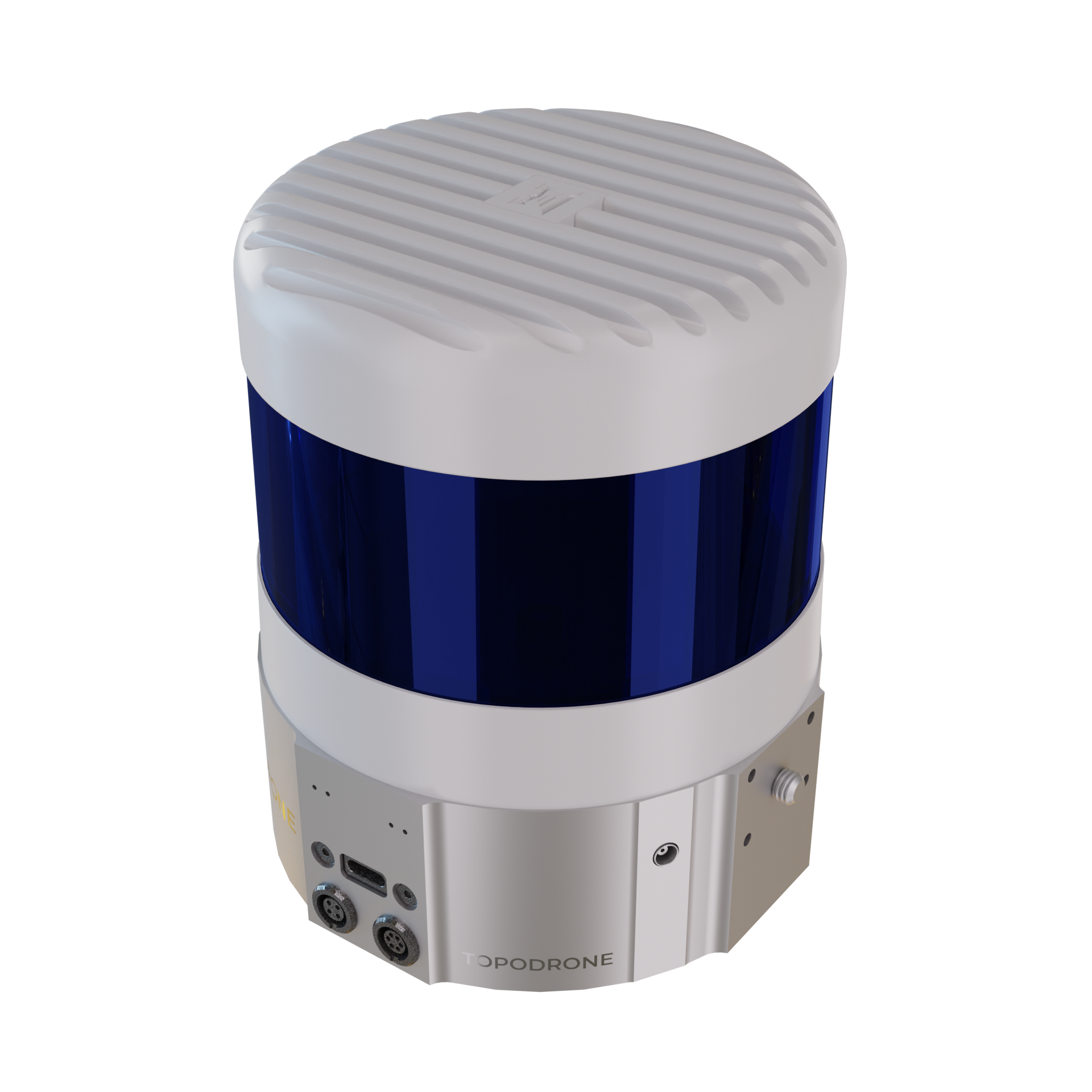

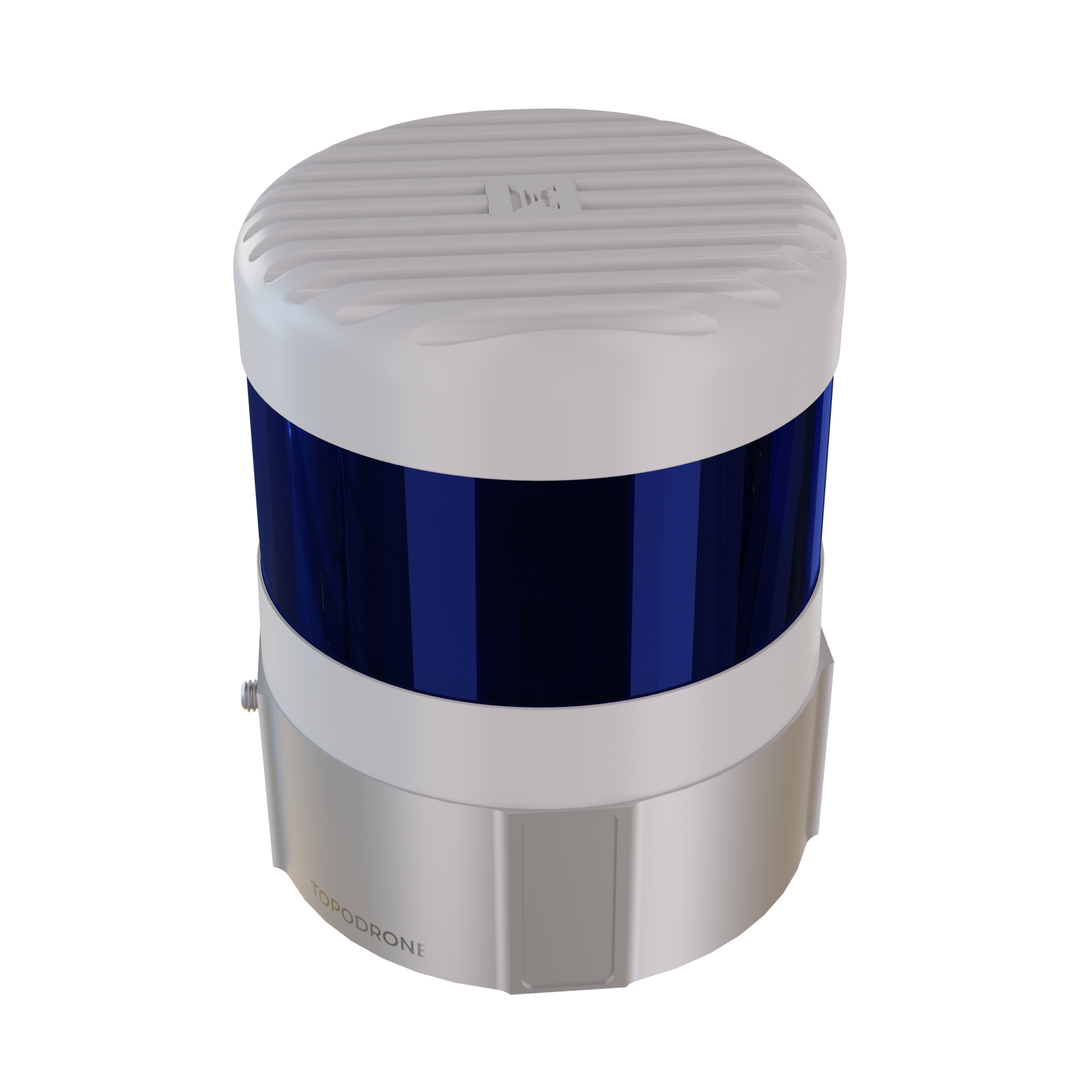

CH-TD-PRIME
General
Country of origin
Switzerland
Warranty
12 month
Weight
4 kg
Operating temperature range
-20°C ... 60°C
LiDAR System
Sensor type
Velodyne Alpha Prime
Recording data to a flash card
Yes
Built-in GNSS module
Yes
Laser Sensor
Working Range
180 m
Working Flight Altitude
300 m
Number of scanning beams
128
Horizontal FOV
360°
Vertical FOV
40° (-25° to +15°)
Scanning frequency (single reflection)
2 300 000
Scanning frequency (double reflection)
4 600 000
Refresh Rate
5 Hz to 20 Hz
Laser Wavelength
~ 905 nm
Water Resistance
IP67
IMU
Operating frequency
600 Hz
Heading accuracy (°, 1σ)
0,01
Pitch accuracy (°, 1σ)
0,005
Roll accuracy (°, 1σ)
0,005
GNSS receiver
PPK mode
Yes
Number of channels
544
Frequency
100 Hz
Data Accuracy
3-5 cm
Working without GCPs
Yes
