DJI D-RTK 3

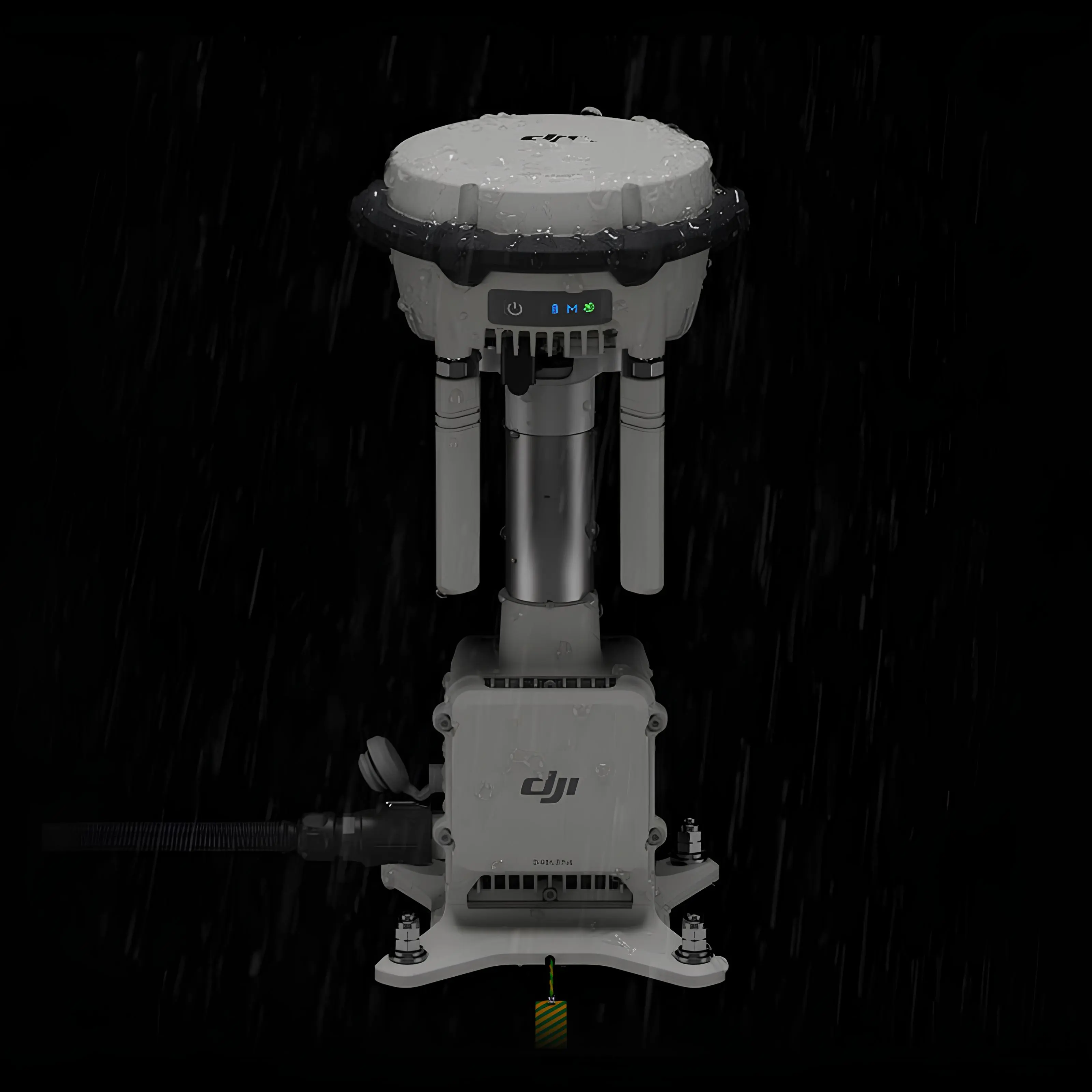

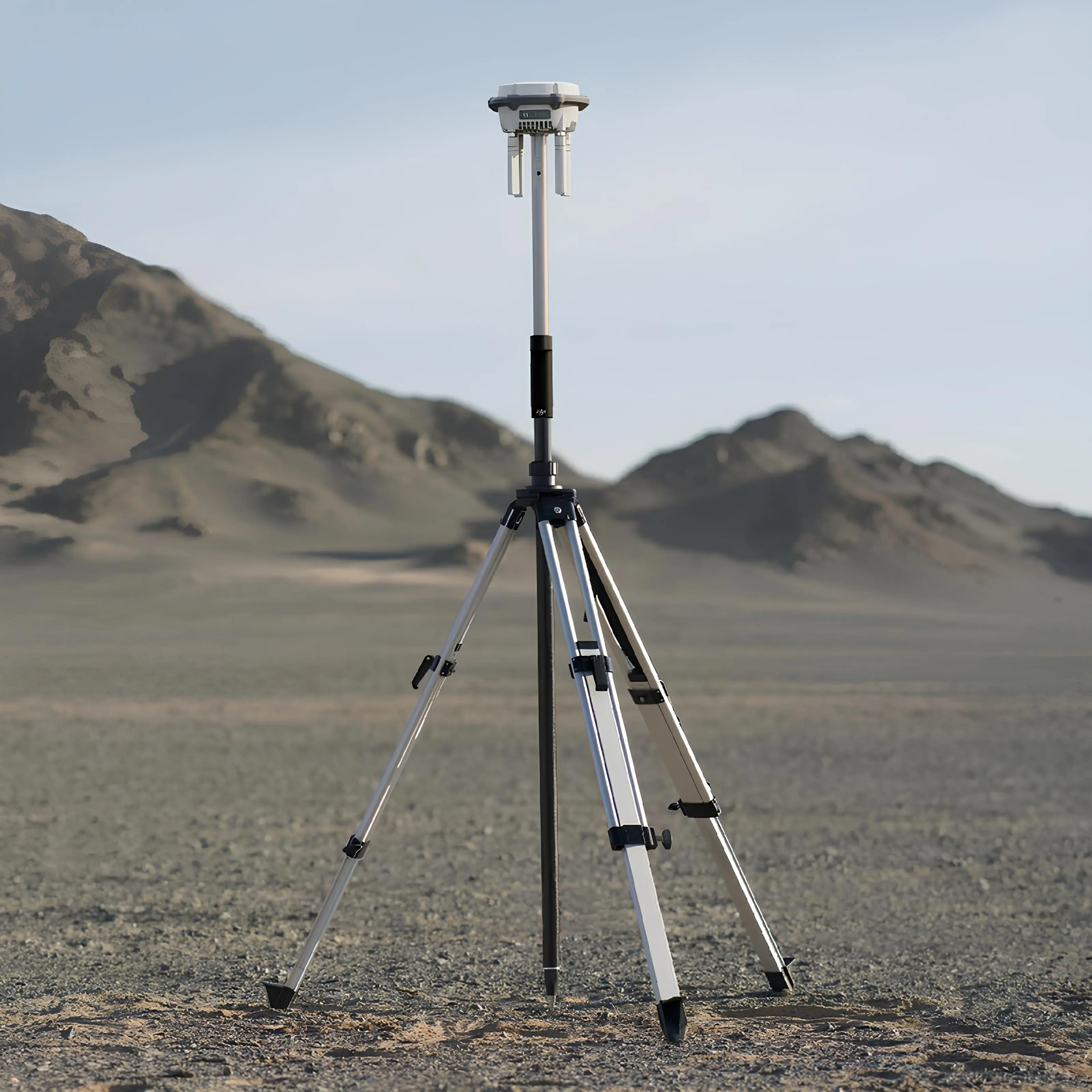

DJI D-RTK 3 is a professional, multi-purpose station designed for high-precision positioning and extended communication range when operating DJI Enterprise-series UAVs.
The unit is equipped with advanced antennas and high-sensitivity GNSS receiver modules capable of tracking all major satellite constellations (GPS, BDS, Galileo, GLONASS, QZSS), delivering centimetre-level positioning accuracy even in challenging environments.
The station supports three primary operating modes:
- Base Station — provides RTK-level positioning accuracy for multiple aircraft simultaneously;
- Relay Station — extends data and video transmission range to up to 25 km;
- Rover / Mobile Station — used for surveying control points and carrying out high-precision aerial survey tasks.
Compatibility: DJI Matrice 4 Series, Matrice 3D/3TD, Matrice 300/350 RTK, Matrice 30 Series, Mavic 3 Enterprise Series, DJI Inspire 3, T-Series (agricultural drones), DJI FlyCart 30. Interfaces include Bluetooth 5.1 and OcuSync O4 Enterprise.
With an IP67 protection rating, operating tolerance from −30°C to +50°C, and seamless integration within the DJI Enterprise ecosystem, the D-RTK 3 ensures dependable performance in any weather or terrain conditions.
Key Benefits
- Centimetre-level RTK positioning accuracy in base-station mode;
- Support for five GNSS constellations and nineteen frequency bands;
- Relay mode enabling transmission ranges of up to 25 km;
- Autonomous positioning (PPP) delivering decimetre-level accuracy without network connectivity;
- Integration with DJI Enterprise and DJI Terra for a complete geospatial workflow;
- High resistance to interference and multipath thanks to the advanced filtered aerial antenna;
- Simple deployment and compatibility with a wide range of DJI aircraft — from Matrice to Mavic 3 Enterprise and Inspire 3;
- Robust IP67 protection and resilience to extreme temperatures;
- Bluetooth 5.1 support and compatibility with Android 10+ devices.
Warranty: 12 months.
