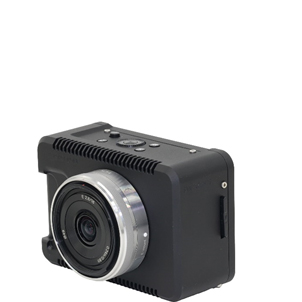

Photogrammetric camera TOPODRONE P24 is equipped with APS-C format sensor with global mechanical shutter and possibility to change lenses. This camera can be mounted on a 3-axis stabilized stabilizer or together with one of the laser scanners of TOPODRONE line (depending on the delivery set).
 |  |

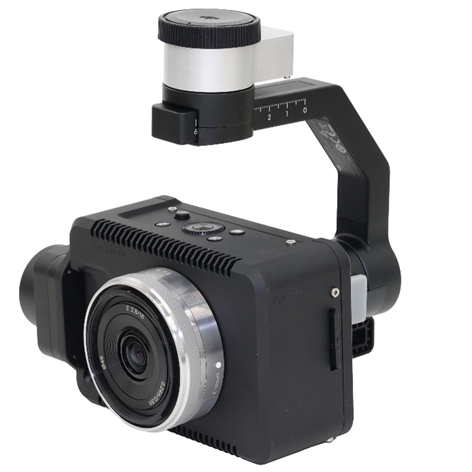

| TOPODRONE P24 on 3-axis gimbal | TOPODRONE P24 with TOPODRONE LiDAR installation |
Package contents
- TOPODRONE P24 photogrammetric camera
- 3-axis gimbal (when mounted on a 3-axis gimbal)
- TOPODRONE UAV PPK UPGRADE KIT GNSS receiver with a 16 GB MicroSD card (when mounted on a 3-axis gimbal)
- LEMO 4 PIN / LEMO 6 PIN power and shutter cable
- USB – LEMO 6 PIN cable for connecting the camera to the Internet and diagnostics
- GNSS antenna bracket with cable and mounting screws (depending on the delivery set)
- External GNSS antenna (depending on the delivery set)
- SD XC-I 64 GB memory card
- Protective transport case with foam insert (depending on the delivery set)
- L-shaped bracket with screws for mounting the camera on the laser scanner (when used with a laser scanner)
- Skyport-SHLD adapter (when used with a laser scanner)

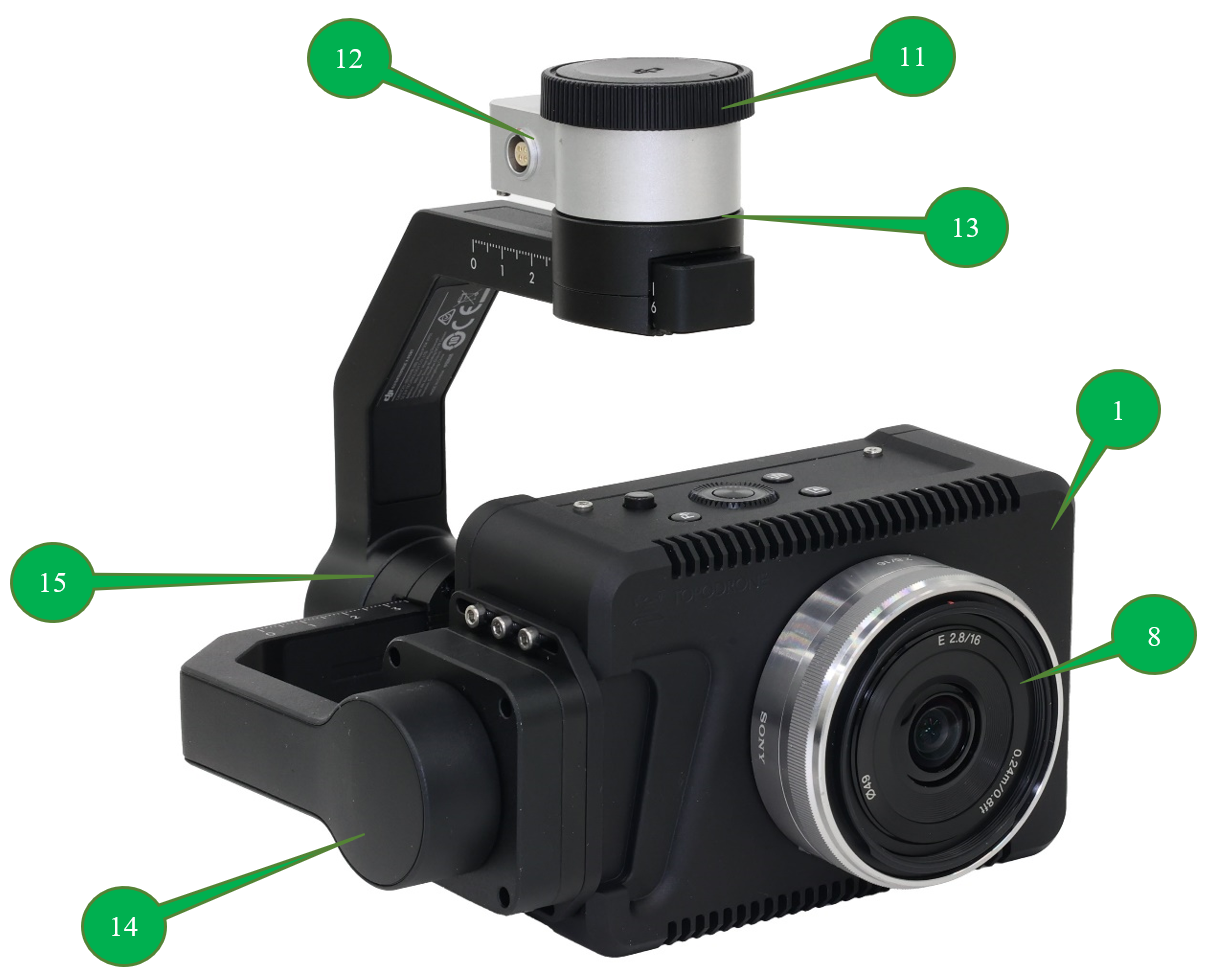

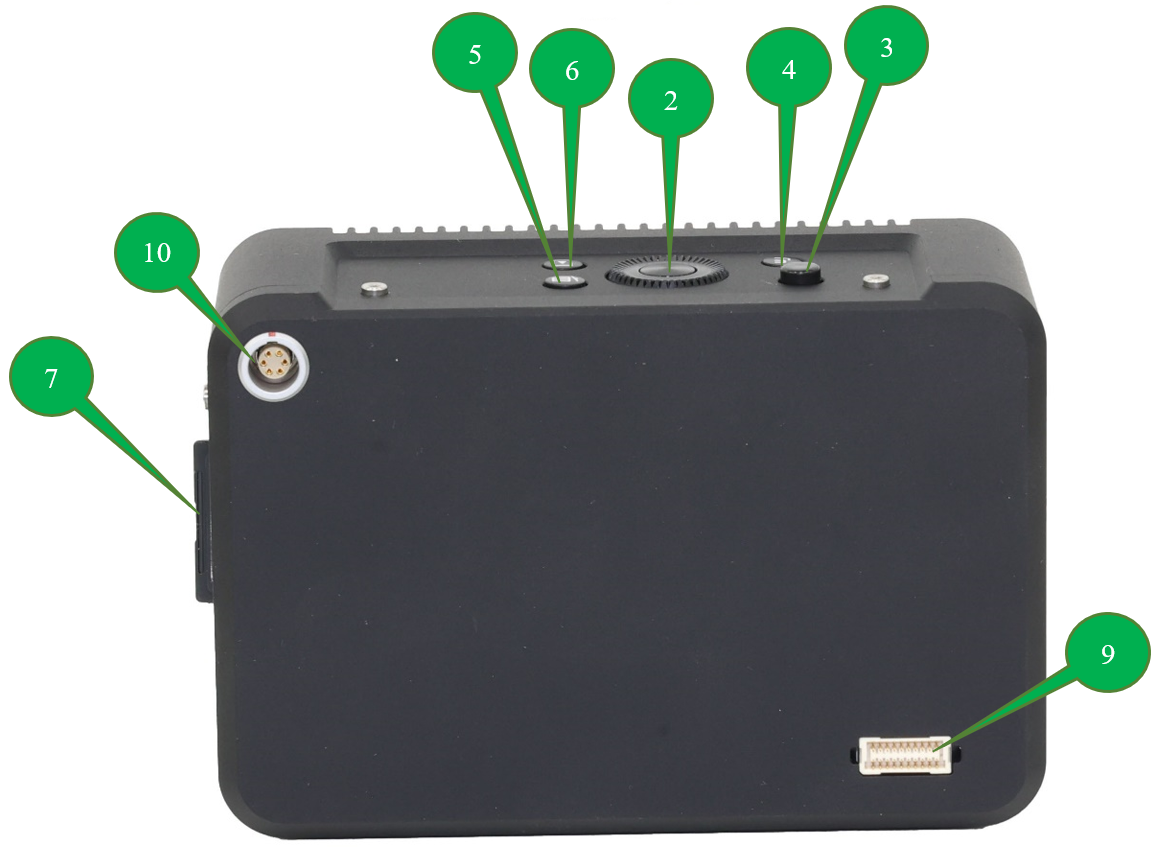

- TOPODRONE P24 camera body
- Control wheel with central button
- Menu button
- Fn function button
- Delete button
- Playback button
- SD memory card
- Lens
- SHLD connector for connecting the camera to the 3-axis gimbal or to the drone via the Skyport-SHLD adapter
- LEMO 6 pin connector for camera service and for connecting to a TOPODRONE laser scanner when used together.
- X-Port 3-axis gimbal connector
- Connector for TOPODRONE UAV PPK Upgrade Kit or a TOPODRONE laser scanner.
- Pan motor
- Tilt axis motor
- Roll axis motor
Supported aircraft
The TOPODRONE P24 photogrammetric camera can be used on almost any unmanned aircraft; we recommend consulting the equipment manufacturer.
Full control and real-time video transmission to the remote controller are only possible on DJI Matrice 2** and 3** series UAVs.
Compatible lenses
TOPODRONE P24 supports Sony E-mount lenses. The kit includes a Sony SEL16F28 lens; its specifications are given in the table below.
| Lens mount | Sony E |
| Focal length, mm | 16 |
| 35 mm equivalent focal length, mm | 24 |
| Angle of view (APS-C), ° | 83 |
| Minimum aperture value | 2.8 |
| Maximum aperture value | 22 |
| Minimum focusing distance, m | 0.24 |
| Size (diameter × length), mm | 62 × 22.5 |
| Weight, g | 67 |
TOPODRONE P24 specifications
| Camera type | Mirrorless with interchangeable lenses |
| Lens mount | Sony E |
| Image stabilization | None |
| Megapixels | 24 |
| Sensor size | APS-C (23.5 x 15.6 mm) |
| Maximum photo size, pixels | 6000 x 4000 |
| Sensor type | CMOS |
| Crop factor | 1.5 |
| Shooting mode | Shutter priority, auto ISO |
| Exposure steps | +/-5 EV in 1/3 steps |
| ISO range | 100-32000 |
| Shutter speed range, s | 30 – 1/4000 |
| Supported memory card formats | Memory Stick Duo, Memory Stick PRO-HG Duo, Memory Stick Pro Duo, SD, SDHC, SDXC, microSD, microSDHC, microSDXC |
| Maximum supported memory, GB | 256 |
| Supported file system | FAT32 |
| Built-in battery | None |
| Camera weight without 3-axis gimbal, g | 530 |
| Camera weight with 3-axis gimbal, g | 835 |
| Video recording | None |
| Operating temperature range, °C | -20 … +40 |
| Gimbal tilt range, ° | -130 … +140 |
| Gimbal pan range, ° | ±320 |
TOPODRONE UAV PPK Upgrade Kit specifications

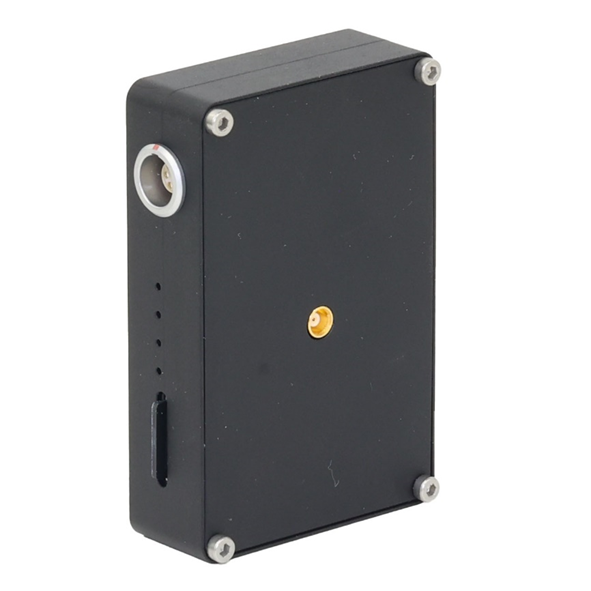

TOPODRONE UAV PPK Upgrade Kit is a small GNSS receiver that can connect an external GNSS antenna and integrate with various payloads.
| Supported GNSS systems and frequencies | GPS: L1C/A, L2C; GLONASS: L1OF, L2OF; GALILEO: E1B/C, E5b; BEIDOU: B1I, B2I |
| Raw measurement recording rate, Hz | 10 |
| Number of GNSS receiver channels | 184 |
| Supported memory card formats | microSD, microSDHC, microSDXC |
| Maximum supported memory, GB | 32 |
| Supported file system | FAT32 |
| Minimum number of satellites for initialization | 8 |
