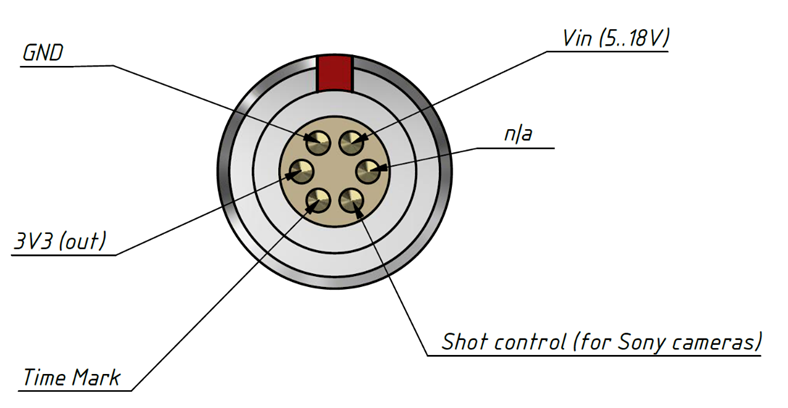

- For connection convenience, a LEMO 6-PIN connector is used. The pinout and description of the LEMO 6-PIN connector are provided below:
When the TOPODRONE UAV PPK UPGRADE Kit is powered on and has completed initialization, it expects Falling Edge type pulses on the TimeMark pin, indicating the shutter trigger moment. The external pulse duration must not exceed 20ms. The TOPODRONE UAV PPK UPGRADE Kit also has an internal pull-up resistor, pulling the pulse voltage level to 3.3V.
