Package contents
$21 900/pcs.
On request
General
Country of origin
Switzerland
Year of release
2023
Warranty
12 month
Operating temperature range
-20℃ to 60℃
Storage Temp
-40℃ to 85℃
LiDAR System
Sensor type
XT32M2X
Sensor Weight
490 g
Recording data to internal memory
Yes
Recording data to a flash card
Yes
Camera connection
Yes
Built-in IMU
Yes
Built-in GNSS module
Yes
Laser Sensor
Working Range
300 m
Working Flight Altitude
200 m
Sensor Accuracy
3-5 cm
Number of scanning beams
32
Horizontal FOV
360°
Vertical FOV
40.3°
Horizontal Resolution
0.09°
Vertical Resolution
1.3°
Scanning frequency (single reflection)
640000
Scanning frequency (double reflection)
1280000
Scanning frequency (triple reflection)
1920000
Refresh Rate
5-20 Hz
Laser Wavelength
905 nm Class 1 eye safe
Operating Voltage
9 V – 36 V
Power Consumption
10 W
Output
UDP/IP Ethernet, 100BASE-TX
Ethernet Connection
100 Mbps
Data synchronization
GPS/PTP
Water Resistance
IP6K7
IMU
IMU Weight
35 g
Operating frequency
200 Hz
Heading accuracy (°, 1σ)
0,07
Pitch accuracy (°, 1σ)
0,01
Roll accuracy (°, 1σ)
0,01
GNSS receiver
PPK mode
Yes
Number of channels
184
Frequency
10 Hz
Data Accuracy
3-5 cm
GPS
L1C/A, L2C
GLONASS
L1OF, L2OF
BeiDou
B1I, B2I
Galileo
E1B/C, E5b
SBAS
L1C/A
QZSS
L1C/A, L1S, L2C
Working without GCPs
Yes
Recommended radius to the base station
10 km

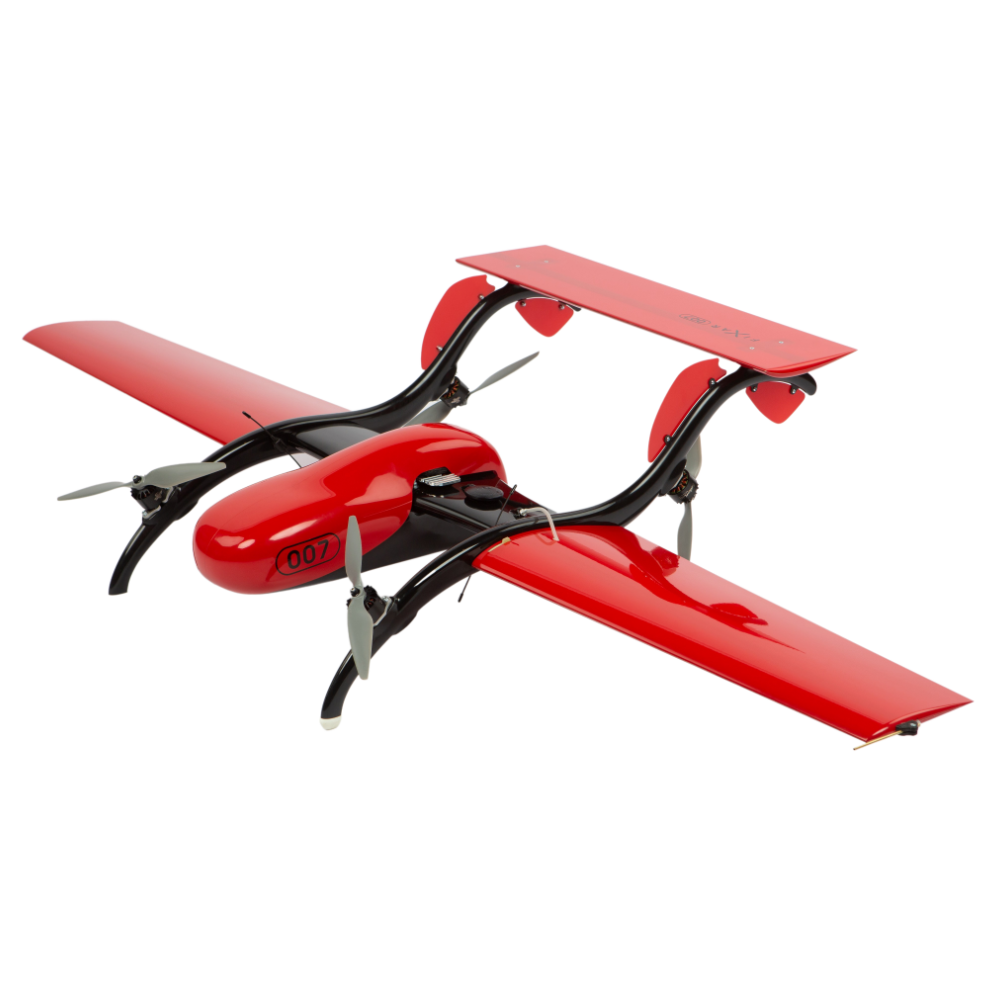

UAV
Takeoff
Vertical
Landing
Vertical
